McHale Fusion 2 hydraulic systems overview section
12-3
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
12.4: Attaching hydraulic hosing to tractor
Warning! When connecting hydraulic hosing to the tractor ensure that the
tractor engine is turned off and that the ignition key is removed. Ensure that
all hydraulic connections are correctly tightened.
There are a total of four hydraulic hoses that must be connected (3 on air brake
models)* to the tractor. They are as follows:
A. One ¾” female quick release for return line. Note: The return line must have
a free flow to tank. (Where a ¾” coupling is not available on the tractor, a
special ½” Parker male quick release is supplied with the
Fusion 2
in the
toolbox & should be used to replace the ¾” coupling fitted)
B. One ½” female quick release for feed line.
C. One ⅜” female quick release for load sensing (if tractor is load-sensing).
D. One hydraulic brake coupling.*
*In the case of air brakes there must be two air brake couplings available.

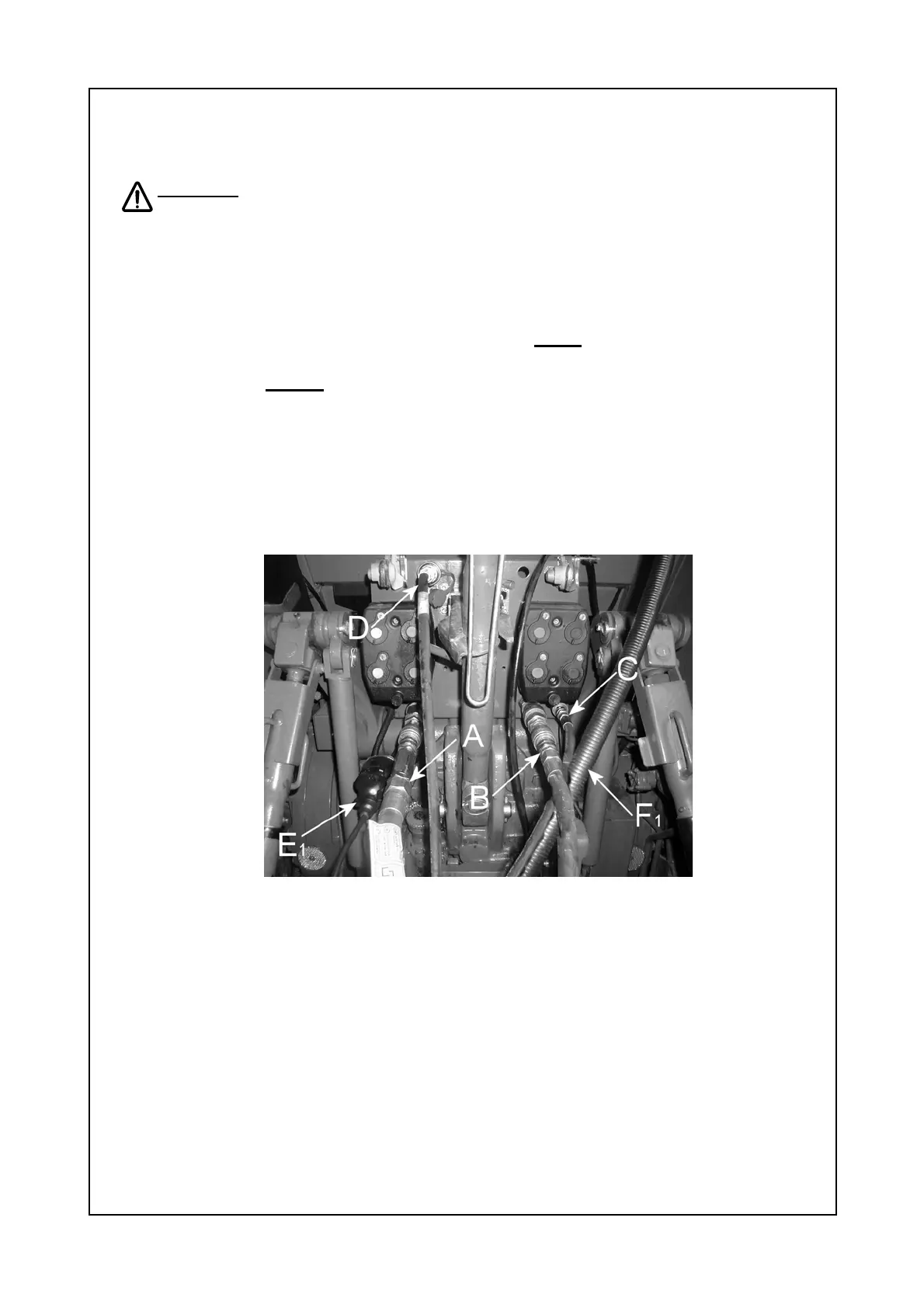

Fig. 12.4 Possible layout of hydraulic
hosing and electric looms.
