McHale Fusion 2 - Density Pressure Check and Troubleshooting

McHale Fusion 2 maintenance section
10-11
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
1. If there is a pressure drop firstly check for any leaks, loose hoses or any oil
under the machine.
2. If this does not solve the problem tighten in the relief valve used on the top door
density valve using a 19 mm torque spanner set to 55 Nm. Repeat pressure
drop test.

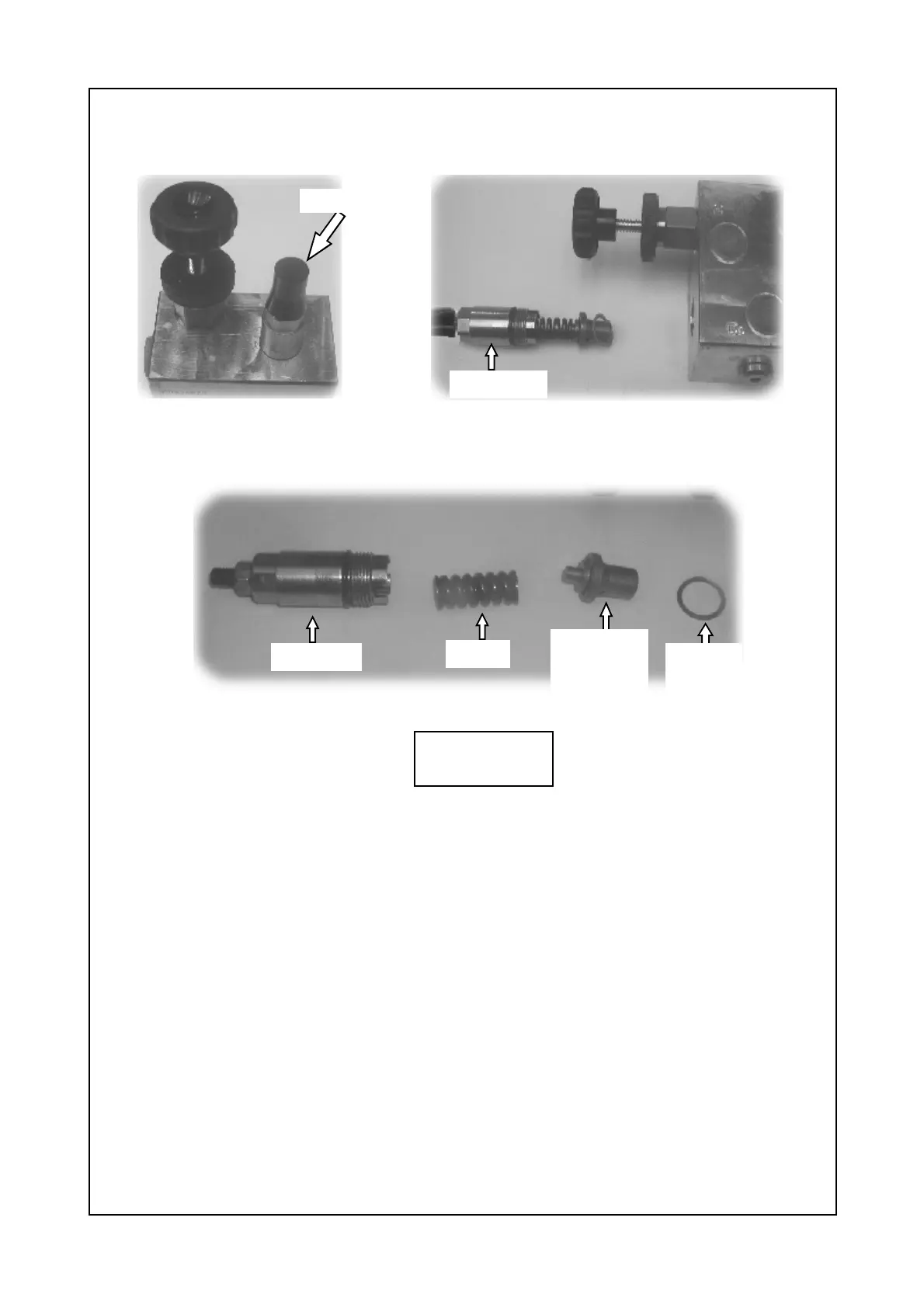

3. If the problem still exists change the copper washer (CVA00270) in the relief
valve used on the door density valve.
- open and remove relief valve cartridge.
- remove the spring, plunger and plunger housing from the valve.
- remove copper washer and replace with new copper washer supplied
- reassemble with new copper washer.
- tighten the relief valve using a 19 mm torque spanner set to 55 Nm
Relief Valve
Cartridge
Spring
Plunger
Housing
& Plunger
Copper
Washer
10.3: Density pressure check
Cartridge
Copper Washer
(CVA00270)
Top Door Density Valve
(CVA00239)
