McHale Fusion 2 - Pickup Reel Tine Chain Adjustment; Reel Chain Adjustment

McHale Fusion 2 maintenance section
10-24
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

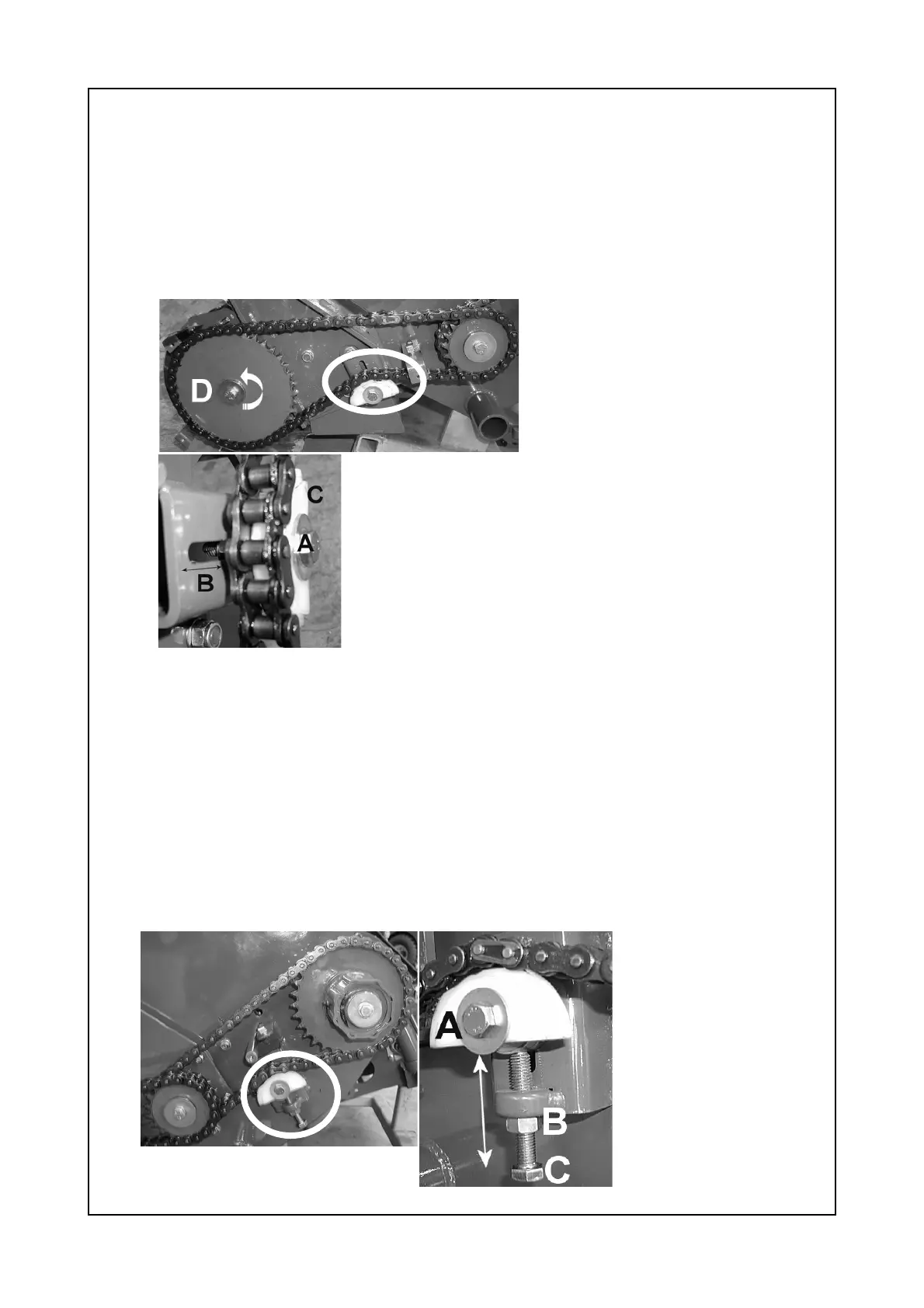

10.6.5: Pickup reel tine chain adjustment
To adjust tine reel chain the use of a 17 mm spanner and socket is required.
1. Loosen (A) and turn tine sprocket (D) anticlockwise as shown below.
2. Apply upward pressure (along slot B) to nylon chain slide (C), while
continuing to hold sprocket (D) in position.
3. Tighten (A) and ensure that sagging is kept to a minimum.
10.6.6: Reel drive chain adjustment
To adjust the reel drive chain the use of both a 17 mm and 19 mm spanner
and socket are required.
1. Using 17 mm tools loosen (A) anticlockwise by approx. 1 turn.
2. Using a 19 mm spanner loosen nut (B).
3. Tighten setscrew (C) until there is little or no sagging of the chain and
retighten bolt (A).
4. Retighten nut (B).
