McHale Fusion 2 - Rotation, Tip, Bypass Valve Function; Wrapper Operation During Normal Rotation; Wrapper Operation During 50;50 Mode; Wrapper Operation During Ring Reverse

McHale Fusion 2 hydraulic systems overview section
12-17
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
If the plastic breaks or runs out on one dispenser the plastic break sensor trans-
mits a message back to the control box, on receiving this message the control
box activates the bypass valve in 50/50 mode.
From that point on the machine spins the bale for a ½ rotation of the ring and
stops for a ½ rotation. The ring does twice the number of revolutions from that
point on until the bale is adequately wrapped.
Please refer to section 12.9.3 and 12.9.4 for a schematic outline of how the oil
flow varies.
For additional information on the plastic break transmitters, please refer to
section 11.2.11.

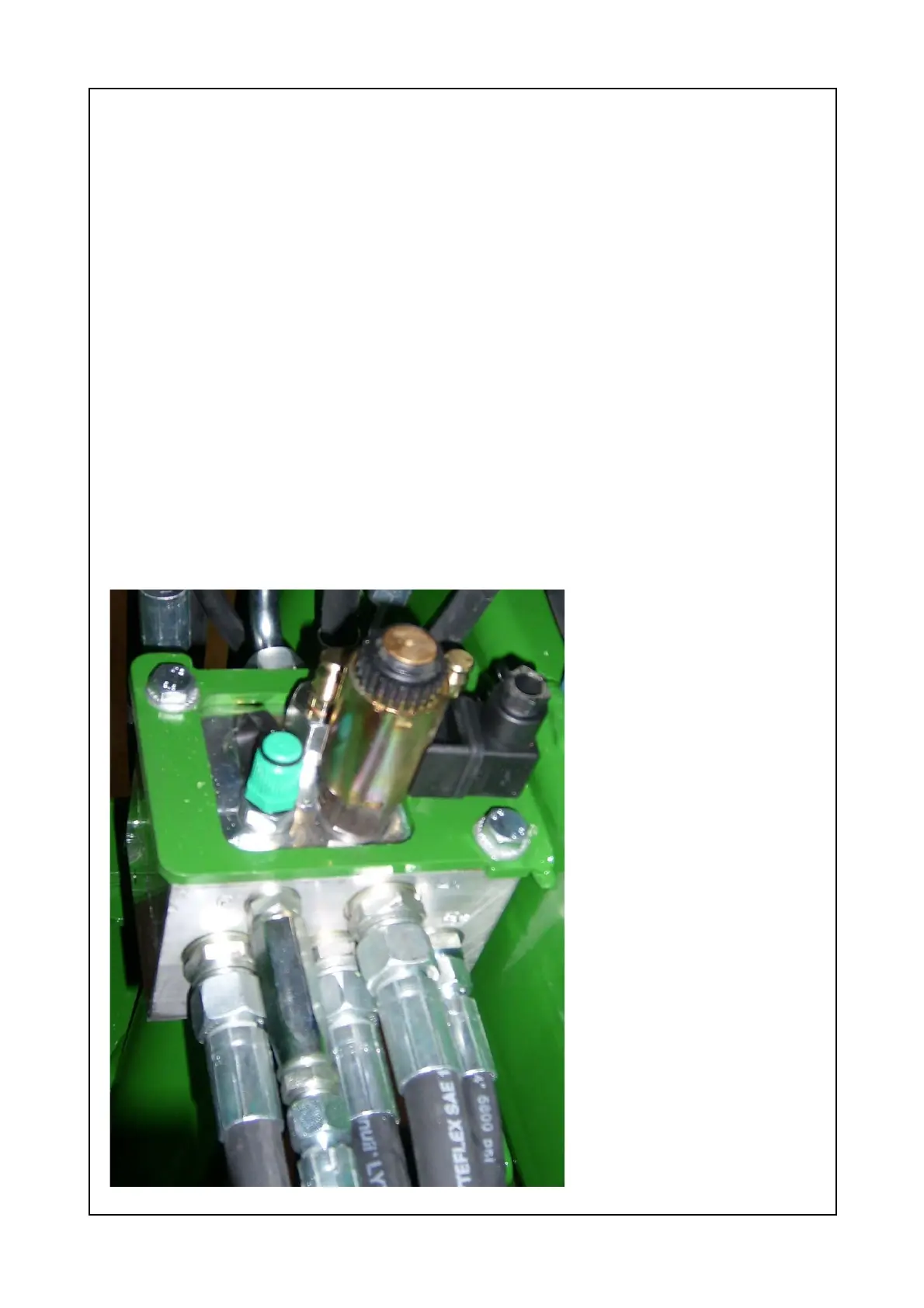

12.9: Rotation, tip, bypass valve
