McHale Fusion 2 requirements & preparation section
07-9
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
7.11 Drawbar and PTO shaft stand usage
Stand type A:
There are three types of drawbar stands available on the Fusion 2, depending on
the country of use one will come as standard.
¾ The following applies to stand type A:
Caution: The stand must be rested on a solid footing, on level ground and also the
supplied wheel chocks must be used. Ensure that the stand pin (3) is properly
placed in the lower slot to prevent the stand from collapse. Then place PTO shaft
stand (2) in the upright position in order to hold the PTO shaft in position, see figure
7.11.2. While using the machine ensure that the drawbar stand (1) is fully up and
that stand pin (3) is in the upper slot, see figure 7.11.1.
Stand type B:
Repeat procedure and warnings as for stand type A.
The difference with stand B is it is a hydraulic stand used to raise and lower the
hitch to the specific tractor hitch height. Is a double acting cylinder with a shut off tap
at the end of the hose to stop it from moving when not connected to the tractor.
1
2
3
1
4
3

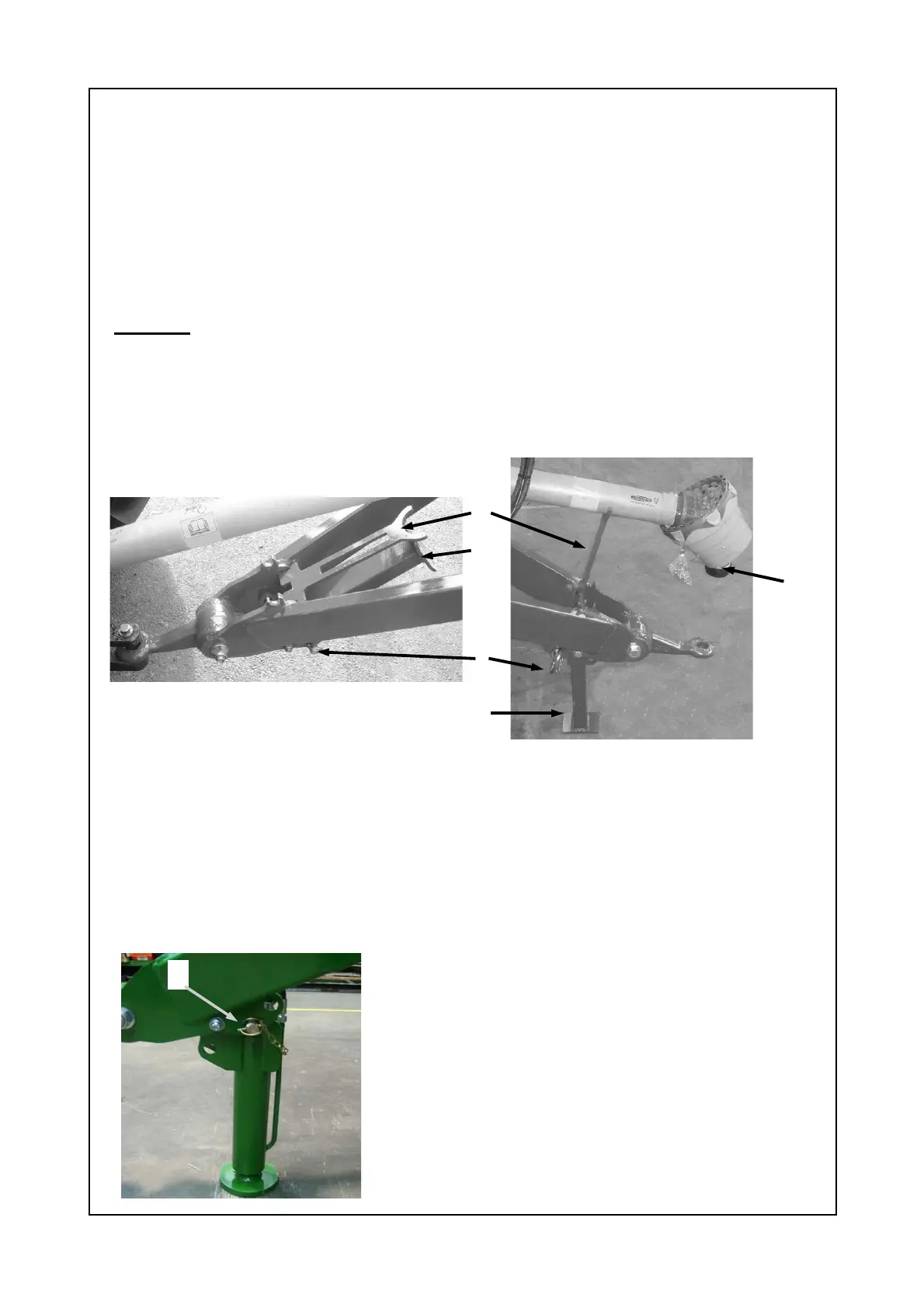

Fig. 7.11.1 Transport position. Fig. 7.11.2 Storage Position.
Fig. 7.11.3 Stand type B
