McHale Fusion 2 - Control Box

McHale Fusion 2 electronic control system section
11- 12
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
11.2.12: Control Box
14
17 18 19

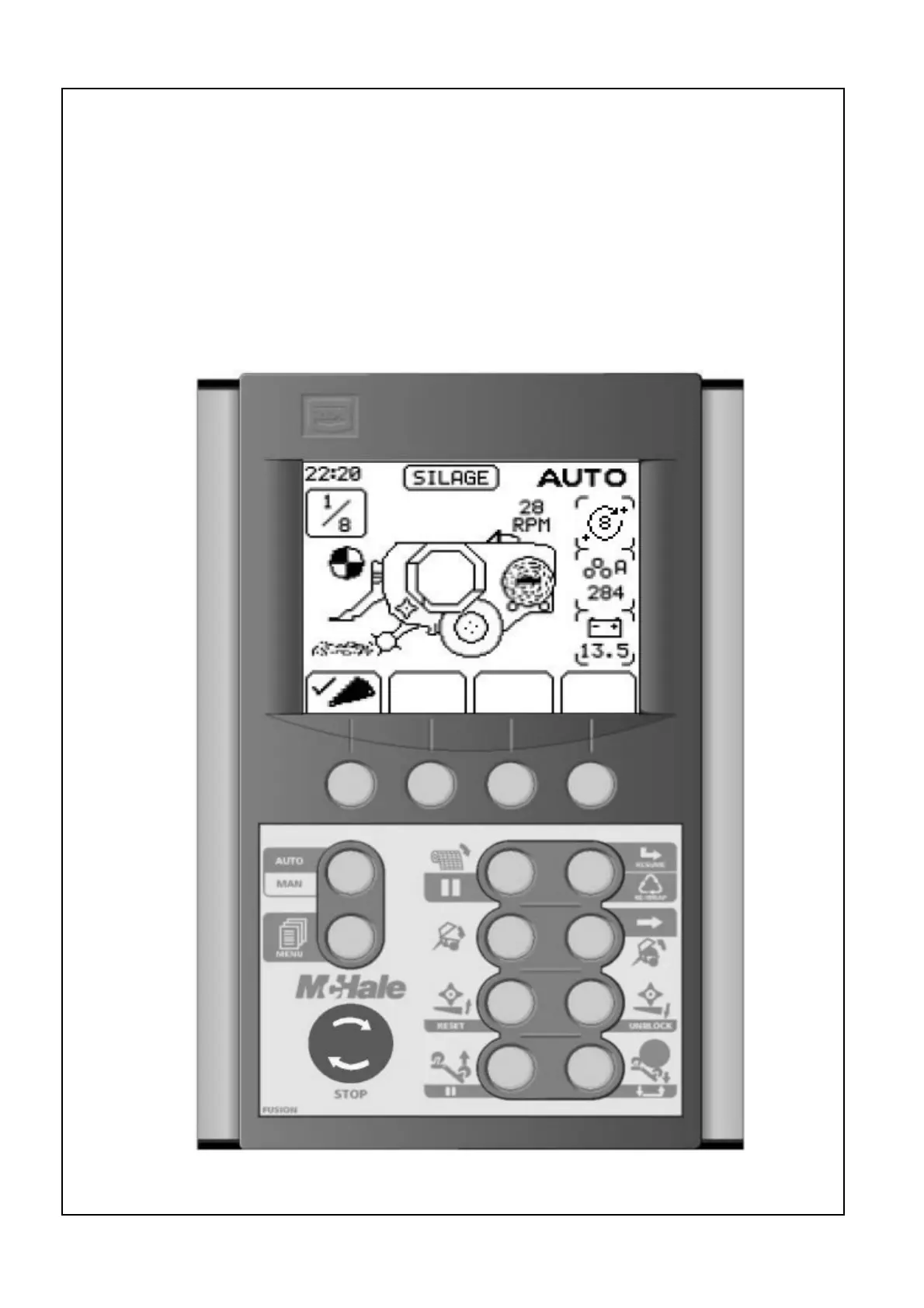

The control box shown here is mounted in the tractor cab. It is secured to the
window with a suction pad.
The Power Supply Should come directly from the battery using the Lead supplied
or a Euro Plug. If the Voltage drops bellow 12V Then Problems will occur.
With the box set in manual mode there is full control over each individual function
on the machine using the buttons. The large display shows each step of the cycle
while running in Auto.
.
