McHale Fusion 2 - Tip Arm Down Hydraulic Operation; Tip Arm Up and Oiler Cycle Operation

McHale Fusion 2 hydraulic systems overview section
12-25
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

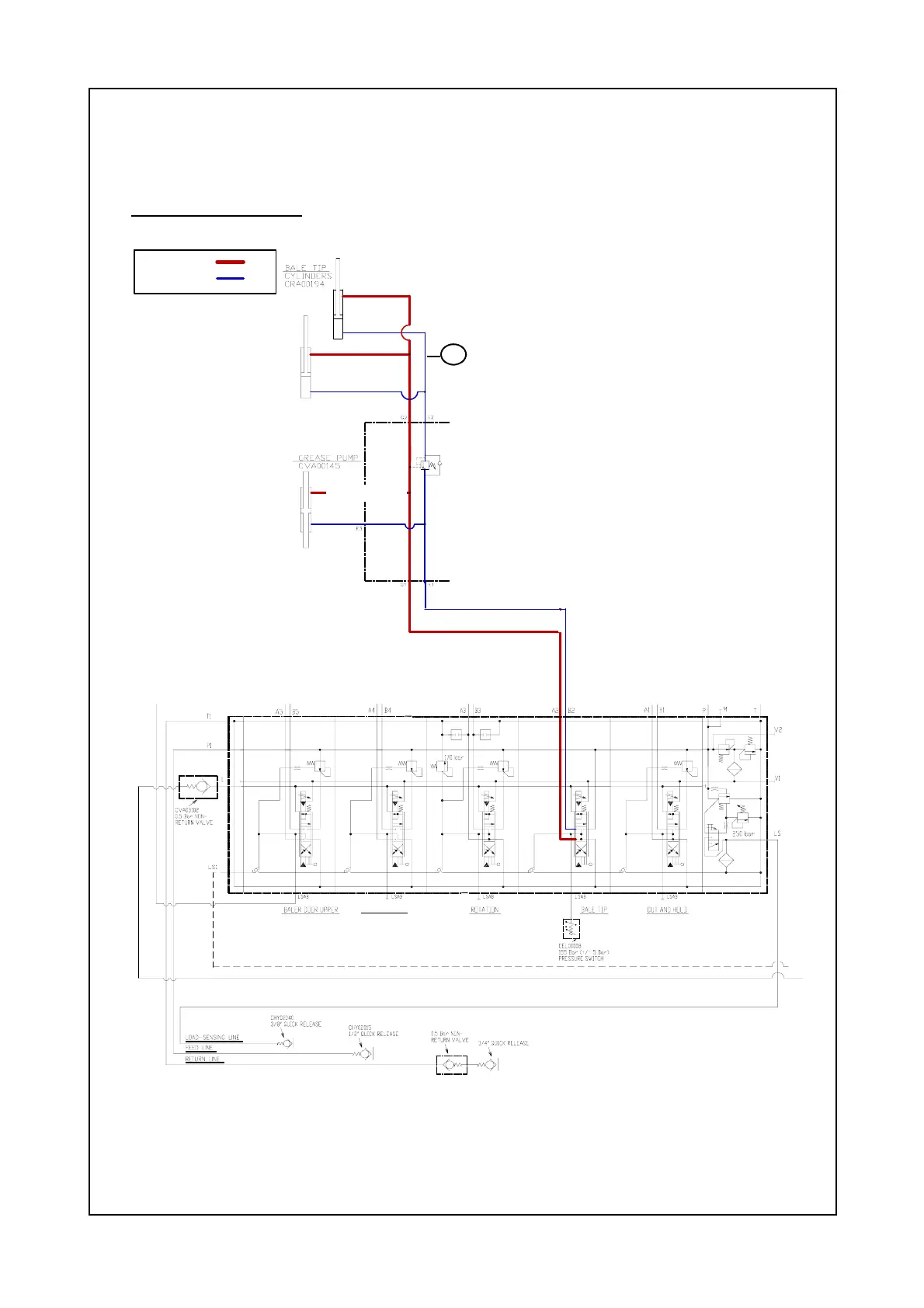

12.11: Tip arm down
CVA00157
Rotation and Tip Valve
(Tip section shown)
Bale Tip & Grease Pump
Feed =
Return =
Function: Tip Arm Down
To C & H Acc.
Accumulator to Protect
Tip Cradle
KNIFE/FLOOR
