McHale Fusion 2 maintenance section

10-17

McHale Fusion 2 round baler wrapper technical service manual

Issue 1: 0208

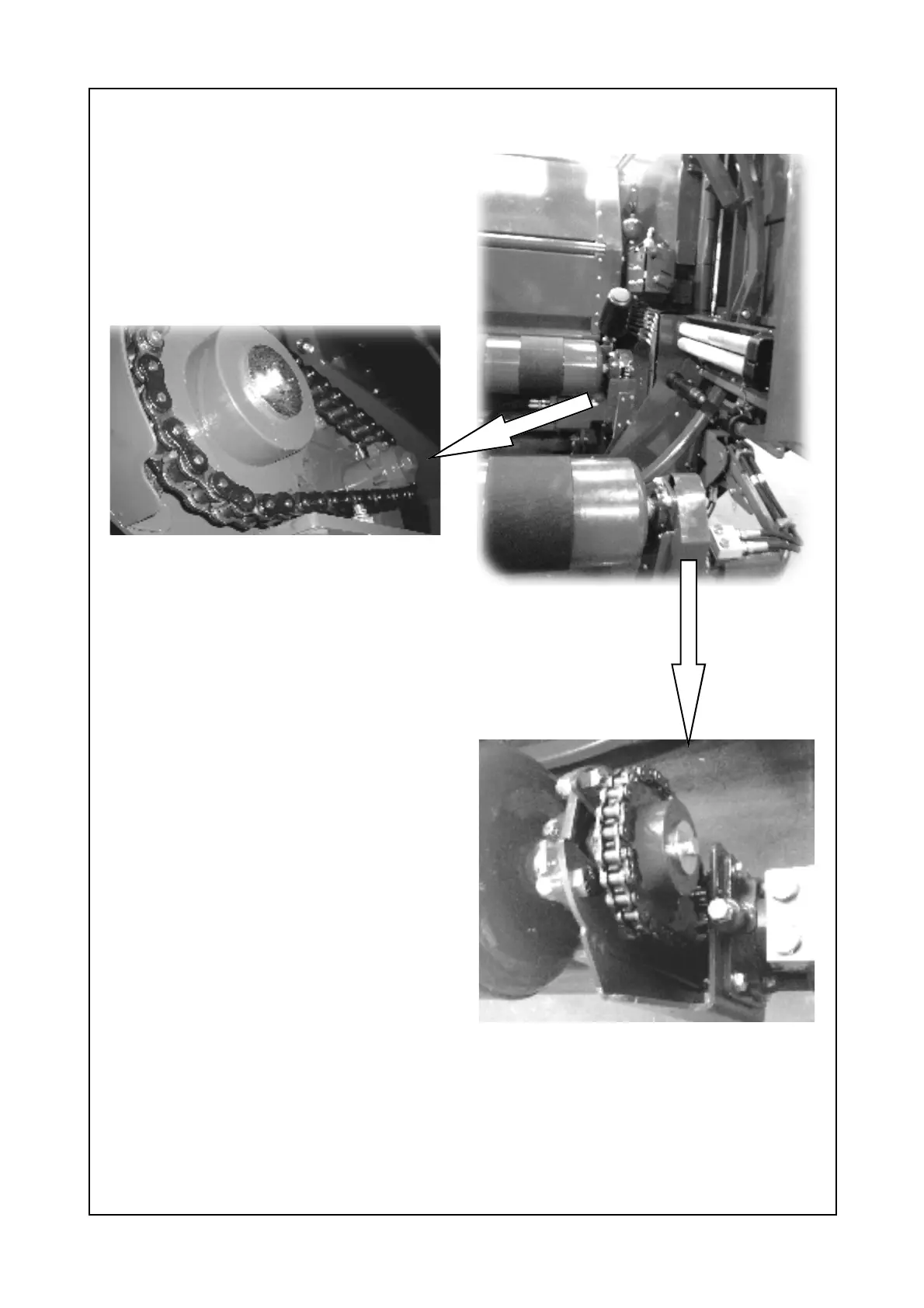

Remove guard, oil both chains

and replace guard.

10.4.5: Lubricate wrapper roller drive chains
