McHale Fusion 2 requirements & preparation section
07-11
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

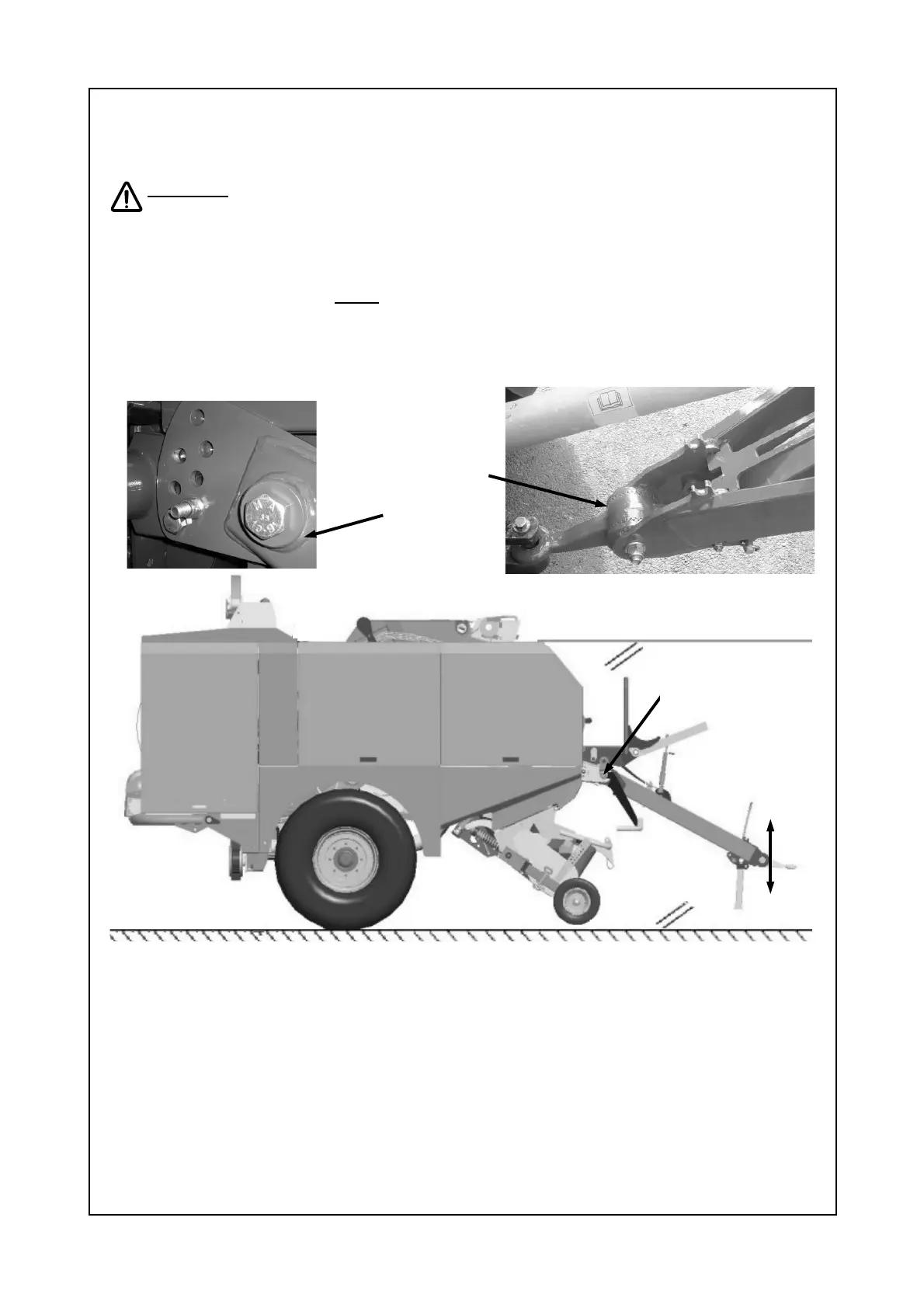

7.12 Drawbar adjustment
Warning! This work should only be carried out by qualified persons or
your McHale dealer!
The drawbar should be adjusted so that the machine is horizontal to the ground
when in the working position, see figure 7.12.1 below. Hitch A can be adjusted to
different height positions. Note: Ensure that the hitch bolt is tightened to a torque
value of 540 Nm. The 30 mm top drawbar bolts at (B) are to be inspected once
every two weeks and tightened to a torque value of 1060 Nm.
B
A
A
7.13 PTO Shaft adjustment
The length of the PTO shaft is suitable for all known tractor conditions. However,
before the machine is operated for the first time with a new tractor it must be
ensured that there is a minimum sliding clearance of 300 mm left during all angles
between the tractor and the machine. In case there is not sufficient sliding clearance
the shaft length must be adjusted according to the PTO shaft manufacturers
recommendations that are either attached to the PTO shaft or included with this
manual or both.
Fig. 7.12.1 Drawbar adjustment.
B
A
