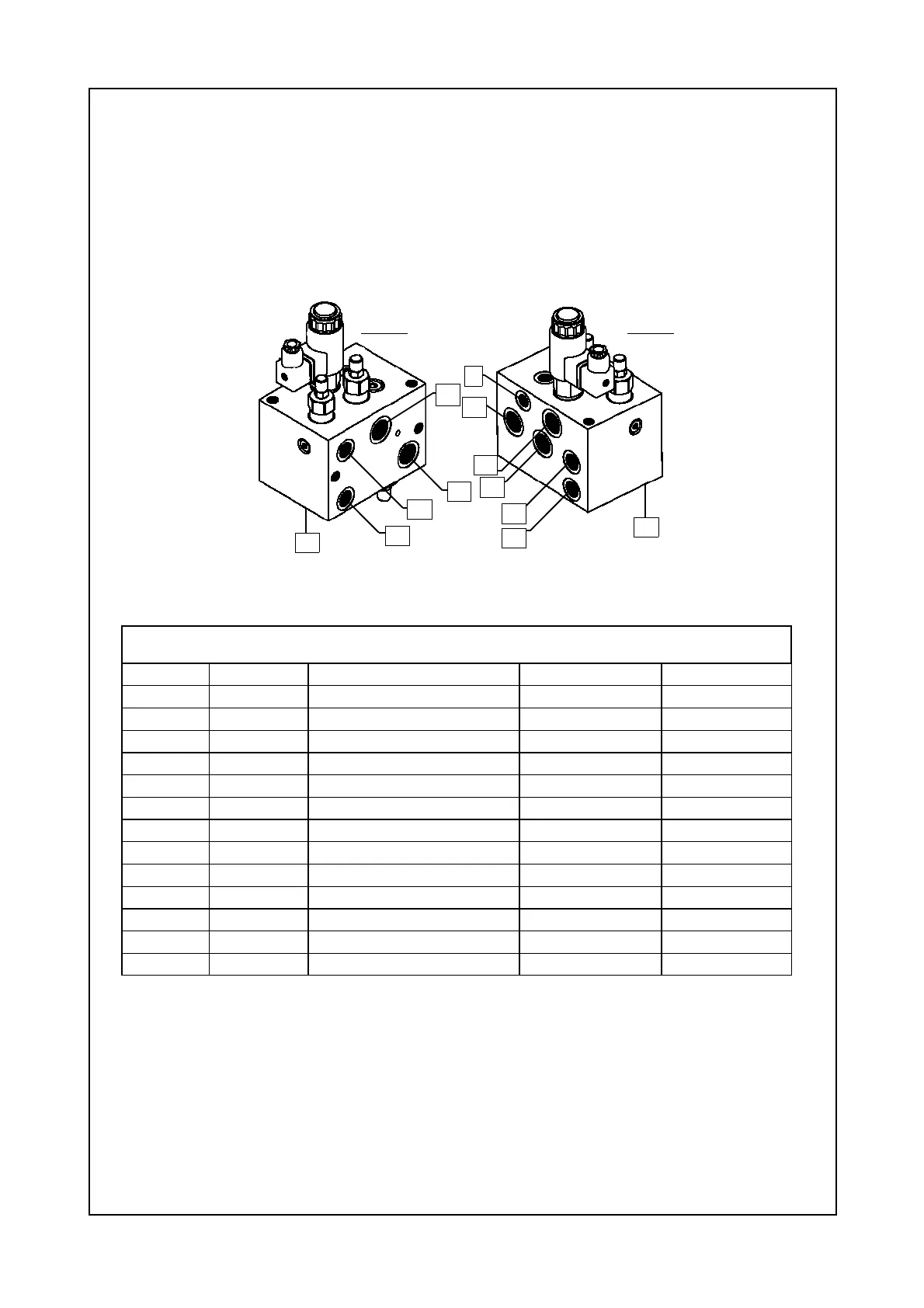

McHale Fusion 2 - Rotation, Tip, Bypass Valve Ports

McHale Fusion 2 hydraulic systems overview section
12-19
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
CVA00157
D1
B1
D2
E1
G1
U1
E2
G2
F
U2
G3
E3
View 1 View 2
CVA00157
Components
Ports Port Size Adopter Size Part Code Dowty Seals
U2 1/2” 1/2"-1/2" M/M ADAPTOR CHY02013 CHY00053
G2 3/8” 3/8"-3/8" M/M ADAPTOR CHY02002 CHY00020
E2 3/8” 3/8"-3/8" M/M ADAPTOR CHY02002 CHY00020
B1 1/2” 1/2"-3/8" M/M ADAPTOR CHY02008 CHY00053
U1 1/2” 1/2"-1/2" M/M ADAPTOR CHY02013 CHY00053
F 1/4” 2 x 1/4"-1/4" ADAPTOR CHY02010 CHY00015
1/4” 1/4" CHECK VALVE CVA00160 CHY00015
D1 1/2” 1/2"-1/2" M/M ADAPTOR CHY02013 CHY00053
D2 1/2” 1/2"-1/2" M/M ADAPTOR CHY02013 CHY00053
E1 3/8” 3/8"-3/8" M/M ADAPTOR CHY02002 CHY00020
G1 3/8” 3/8"-3/8" M/M ADAPTOR CHY02002 CHY00020
G3 1/4” 1/4"-1/4" M/M ADAPTOR CHY02010 CHY00015
E3 1/4” 1/4"-1/4" M/M ADAPTOR CHY02010 CHY00015
12.9.2: Rotation, tip, bypass valve ports
