McHale Fusion 2 - Cut and Hold (50 MM Stoke) Release

McHale Fusion 2 hydraulic systems overview section
12-24
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

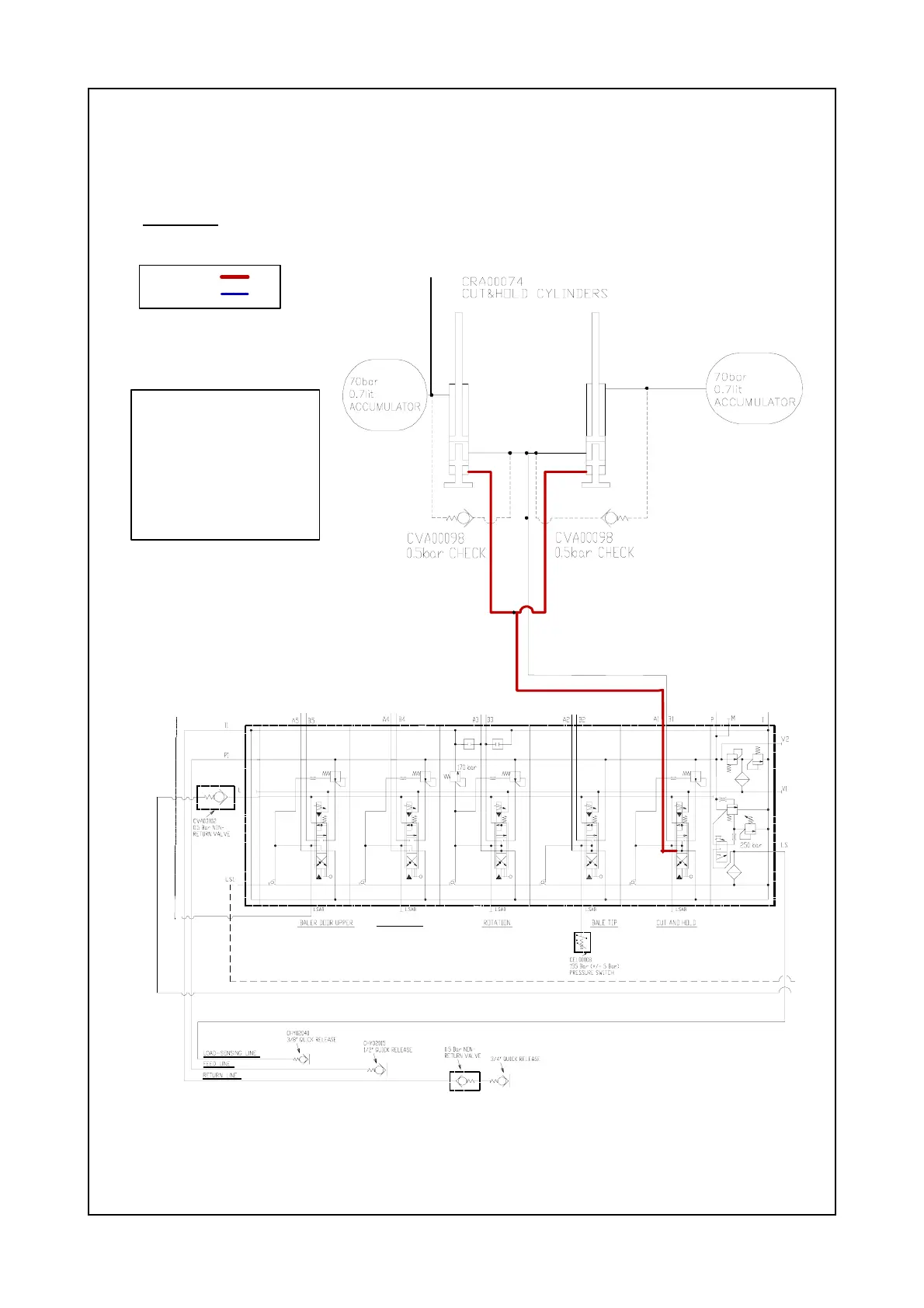

12.10.1: Cut and hold (50 mm stroke) release
Pressure Relief
Valve for Upper
Door
Cut & Hold
Function: C&H Release
Feed =
Return =
Note:
The cut and hold release
is operate when oil is
pumped into the section
of the ram with a 50mm
stroke. To close the oil is
returned under
accumulator pressure.
To Oiler/
Greaser
KNIFE/FLOOR
