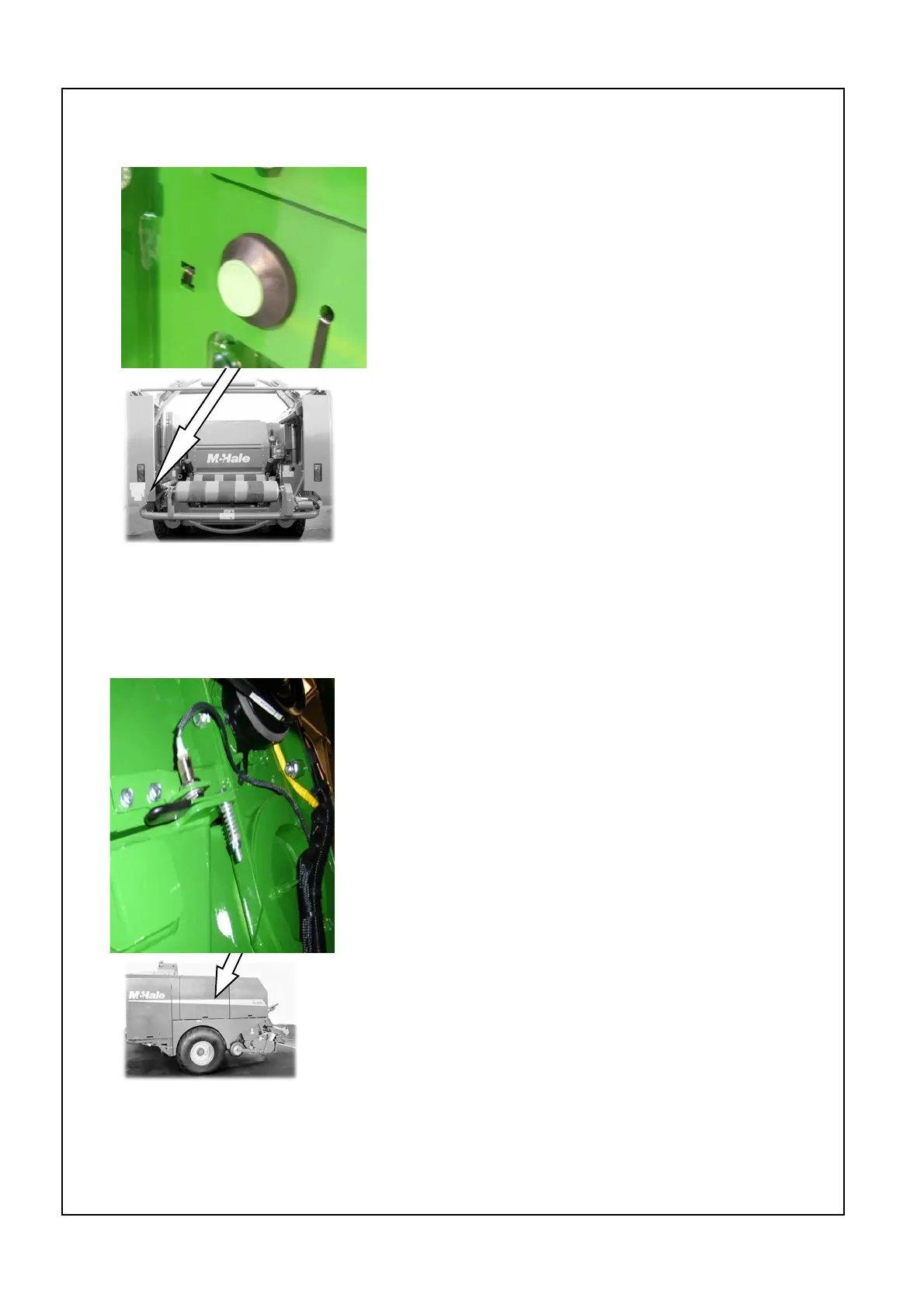

11.2.5: Dispenser rotate button
Function
This switch is used when loading plastic film.
Pushing and holding the button for 2
seconds will slowly rotate the dispenser ring
by a half rotation bringing the next dispenser
to the loading position. The dispenser
access door must be closed, the hydraulic oil
switched on and the control box in Auto.
Testing
This switch can be monitored from within
the Input/Output test menu.
See Input/Output test section 11.8.
11.2.6: Chamber Full Sensor
Function
When this sensor is open it indicates to the operator via
the control box, that the bale chamber is full, signalled by
the box beeping.
In Auto mode the control box beeper sounds for 3
seconds followed by a continuous beep and the net
clutch is energising to feed the net into the chamber.
Testing
In manual mode the control box Should beep continu-
ously when the chamber full sensor is open, i.e.;
chamber open, LED on sensor not lighting.
Closing the chamber closes the sensor and the beeping
stops. If the Control box continually beeps check for an
obstruction preventing the chamber of closing fully, build
up of crop etc.
