McHale Fusion 2 requirements & preparation section
07-7
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
7.8 Automatic lubrication system
The McHale
Fusion 2
is equipped with a fully automatic greasing and oiling system
which is responsible for the greasing of the roller bearings in the machine baling
chamber and the oiling of all the chain systems. All other grease points must be
greased as specified in the machine maintenance
section, see section 10.

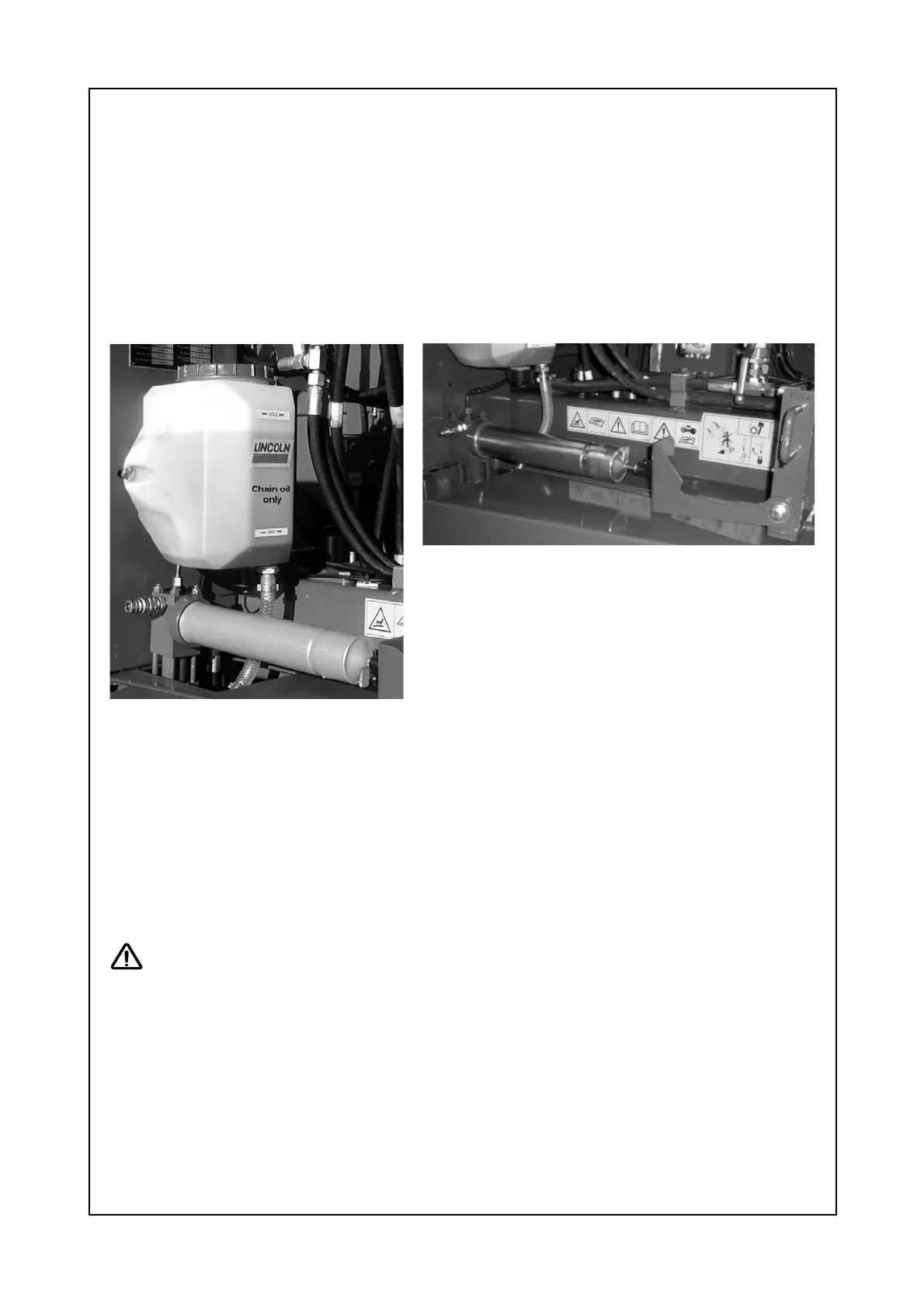

A = Oil reservoir tank.
B = Greasing cartridge and pump unit.
C = Air release valve (Prevents air locks).
D = Grease cartridge cover.
E = Grease cartridge plunger stop.
F = Oil filter.
The oil reservoir tank (A) can hold approximately 5 litres of oil and this is enough
oil for approximately 500 bales, it should be kept between the min. and max.
markings at all times. McHale recommend the use of only top quality chain oil and
grease, this will prolong the life of the machine components. A grease cartridge is
required after every 300 bales approximately. On the control box an alarm is
provided to remind the operator to change the grease cartridge and top up the
lubrication oil after a preset number of cycles. This counts down from 300 and gives
a reminder at zero.
A
B
C
F
D
E
