McHale Fusion 2 requirements & preparation section
07-10
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208
Stand type C:
The following applies to stand type C, please refer to the figures in 7.11.4:
Caution: The stand must be rested on a solid footing (B), on level ground and also
the supplied wheel chocks must be used.
Note that stand type C is only supplied with the high drawbar hitch option. In
order to raise the drawbar, rotate the jack handle (A) in the up or clockwise direction
as shown in the figure below. In order to lower the drawbar rotate the handle in the
down or counter-clockwise direction. Once the drawbar has been safely connected
to the tractor hitch, the lower part of the stand can be quickly risen by pulling on the
quick release lever and pushing up to lower stand into position 1. Depending on the
height of the windrow being baled the stand may require to be winched more in the
upwards direction so as not to interfere with the windrow, This will save using the
jack winch.
The PTO stand (C) can be simply lifted out of the way once the PTO shaft has been
connected. Leave stand in a suitable location such as the tractor cab, toolbox etc.
B
1
2
C is a removable PTO stand

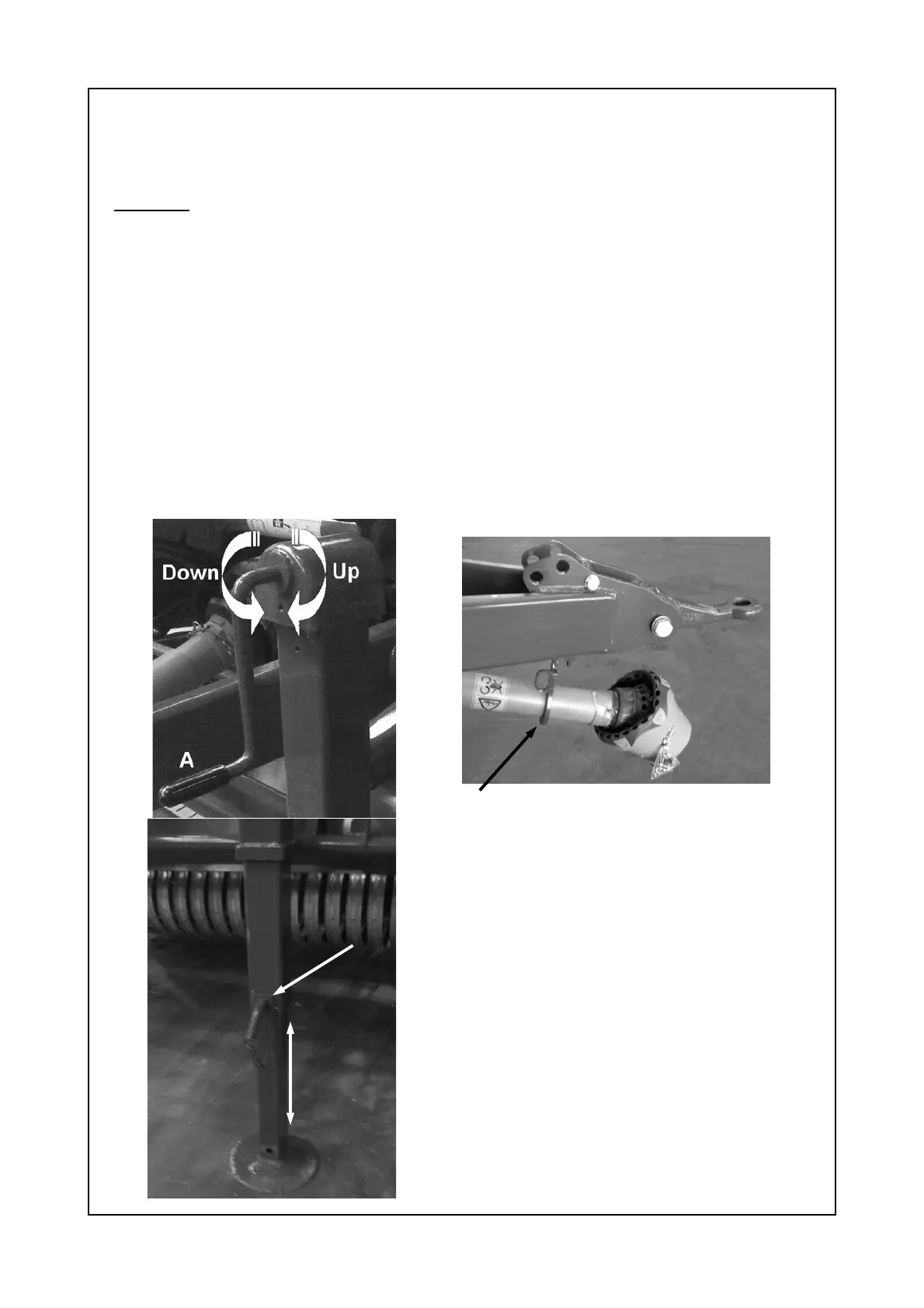

Fig. 7.11.4 Stand type C
