McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

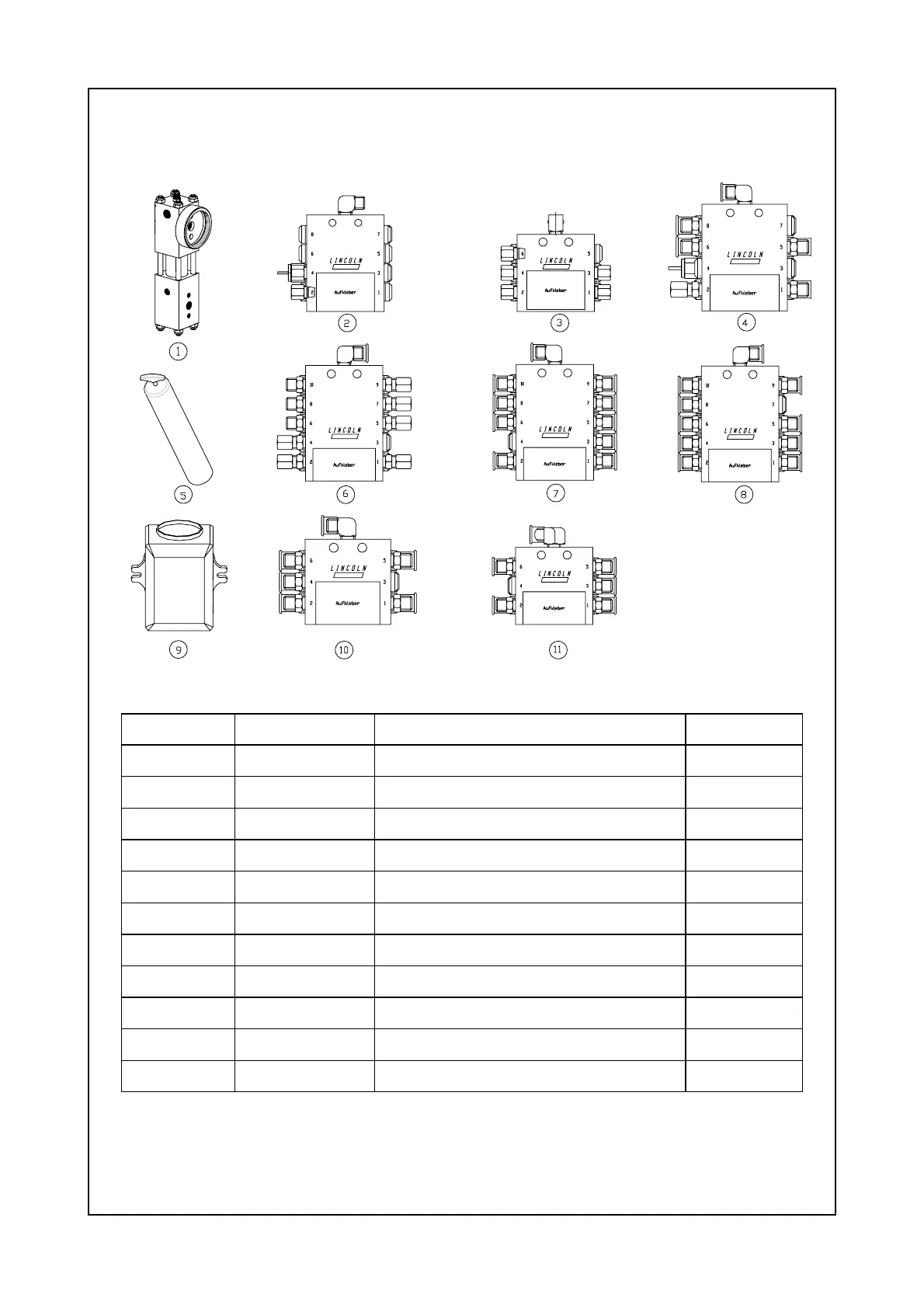

12.12.1 Oiler and greaser system; components:
Item Part Code Description Qty
1 CVA00145 OIL & GREASE PUMP 1
2 CHY00201 OIL MASTER BLOCK 1
3 CHY00202 OIL SECONDARY BLOCK 1
4 CHY00209 GREASE MASTER BLOCK 1
5 CVA00184 GREASE CARTRIDGE 1
6 CHY00208 MIDDLE DOOR BLOCK 1
7 CHY00207 TOP DOOR BLOCK DS 1
8 CHY00206 TOP DOOR BLOCK NDS 1
9 CHY00212 OIL RESERVOIR 1
10 CHY00204 BOTTOM DOOR BLOCK NDS 1
11 CHY00205 BOTTOM DOOR BLOCK DS 1
