CARBURETOR/FUEL PUMP
90-826883R2 JUNE 1998 Page 3A-9
Carburetor Adjustments
1. Place outboard in water.

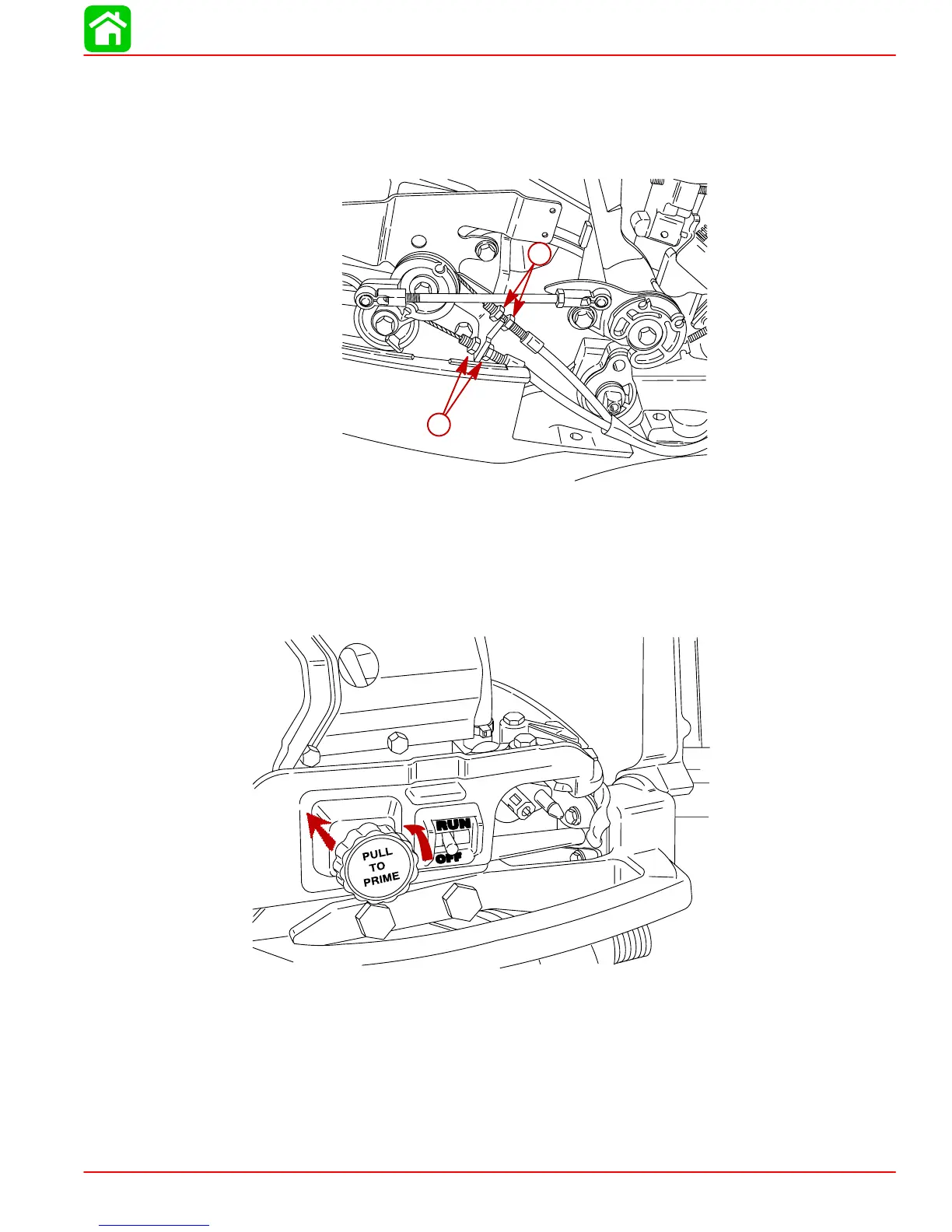

2. Check tiller handle cable adjustment for full throttle movement in both “Forward” and
“Reverse” gears. Adjust jam nuts for proper travel and to eliminate any slack.
57049
a
a
a-Jam Nuts
INITIAL CARBURETOR ADJUSTMENTS
Idle Speed Screw (Models So Equipped)
1. Shift outboard to “Neutral” and place throttle twist grip to “Slow”.
2. Push primer/fast idle knob completely in and rotate knob fully counterclockwise.
57037
