CARBURETOR/FUEL
PUMP
Page 3A-10
90-826883R2 JUNE 1998

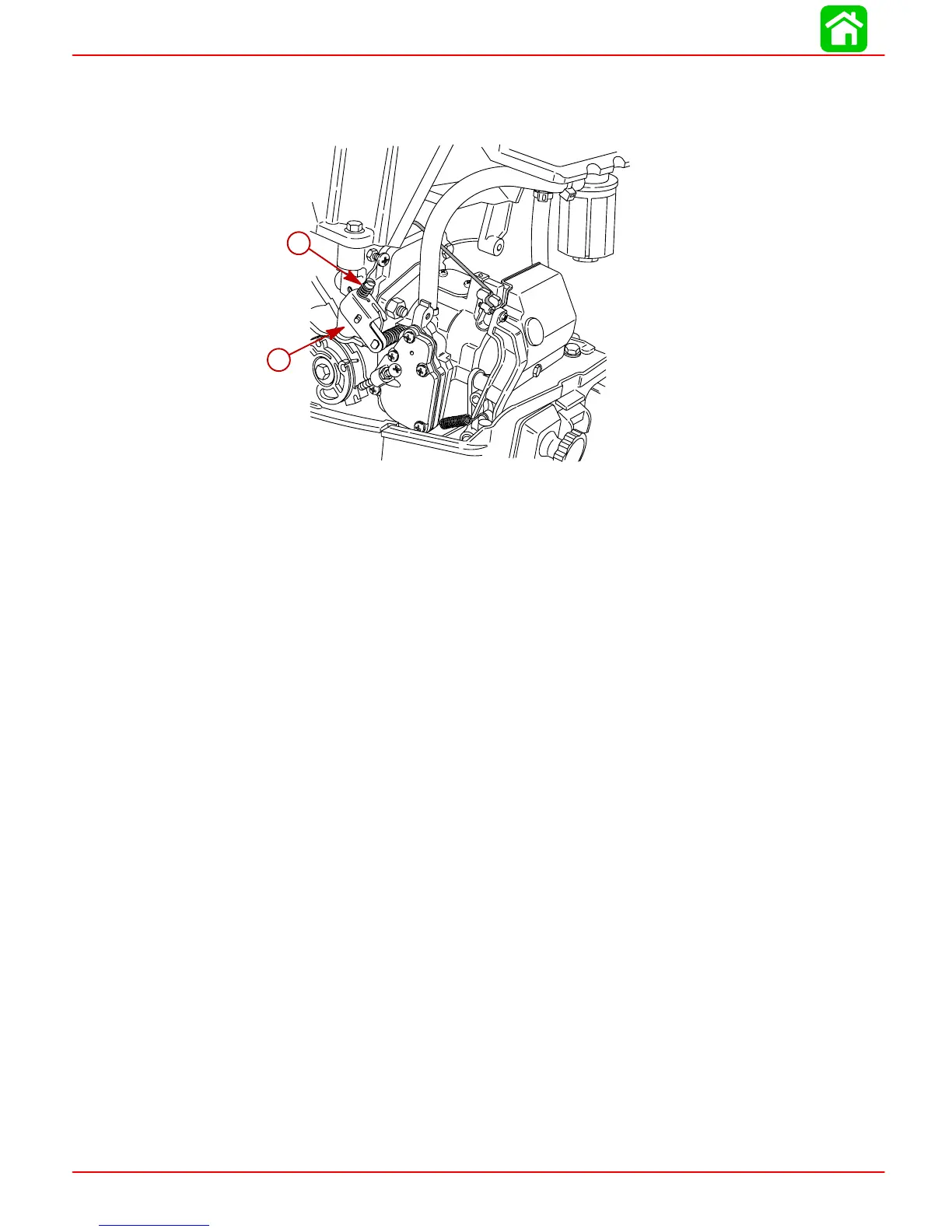

3.
Back idle speed screw off of cam follower
.
4.
T
urn idle speed screw inward (clockwise) until it “just touches” cam follower
, then
inward an additional 1/2 turn to slightly open throttle plate.
a
b
57070
a-
Idle Speed Screw
b-
Cam Follower
135
137
