CARBURETOR/FUEL
PUMP
90-826883R2 JUNE 1998
Page 3A-1
1

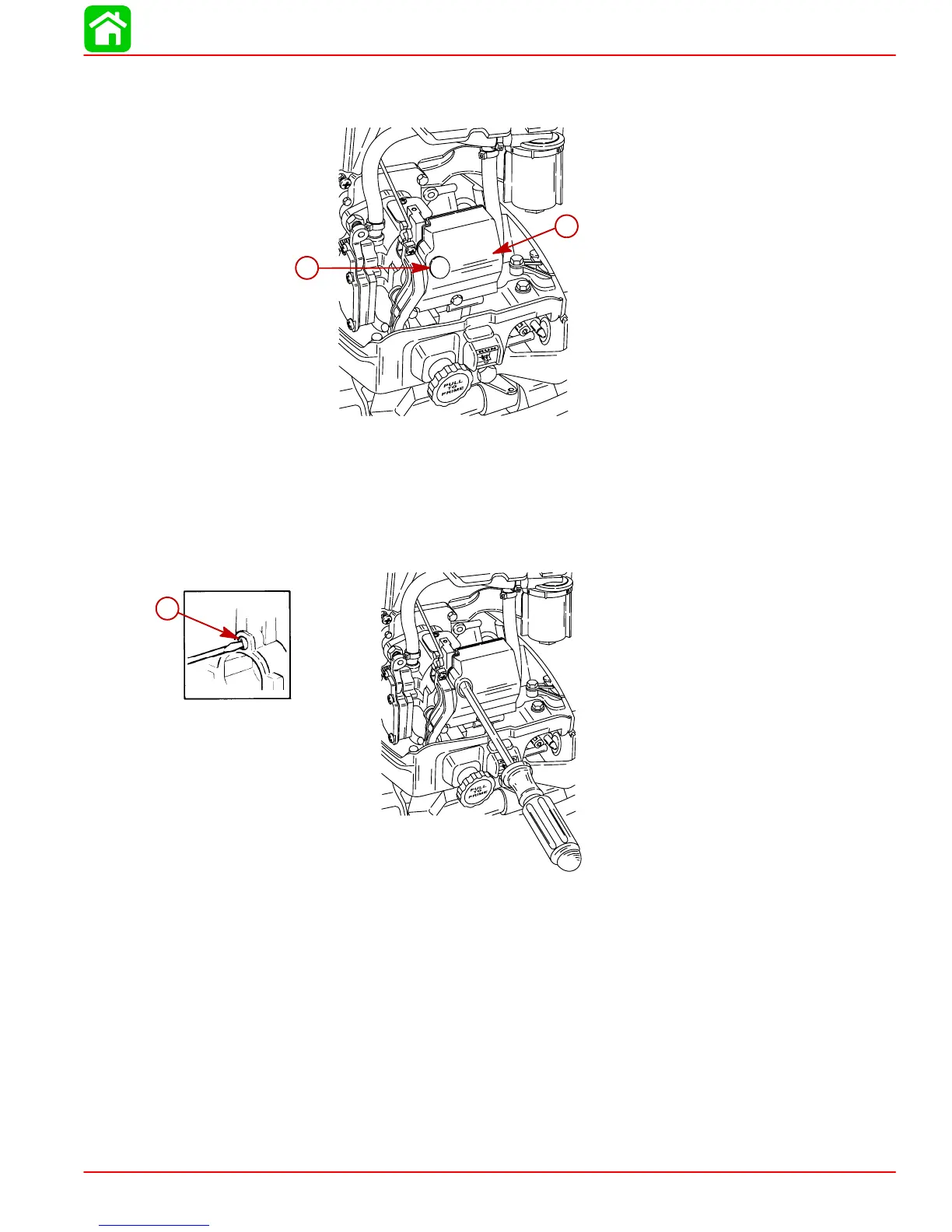

LOW SPEED MIXTURE SCREW
1.
Remove access plug from carburetor air intake cover (models so equipped).
57072
a
b
a-
Access Plug
b-
Intake Cover
2.
T
urn low speed mixture screw slowly inward (clockwise) until it seats lightly
, then back
screw out (counterclockwise) 1–1/2 to 1–3/8 turns(turning mixture screw in tight will
damage needle and seat).
3.
Do not install access plug at this time.
a
57071
a-
Low Speed Mixture Screw
