CARBURETOR/FUEL
PUMP
Page 3A-12
90-826883R2 JUNE 1998

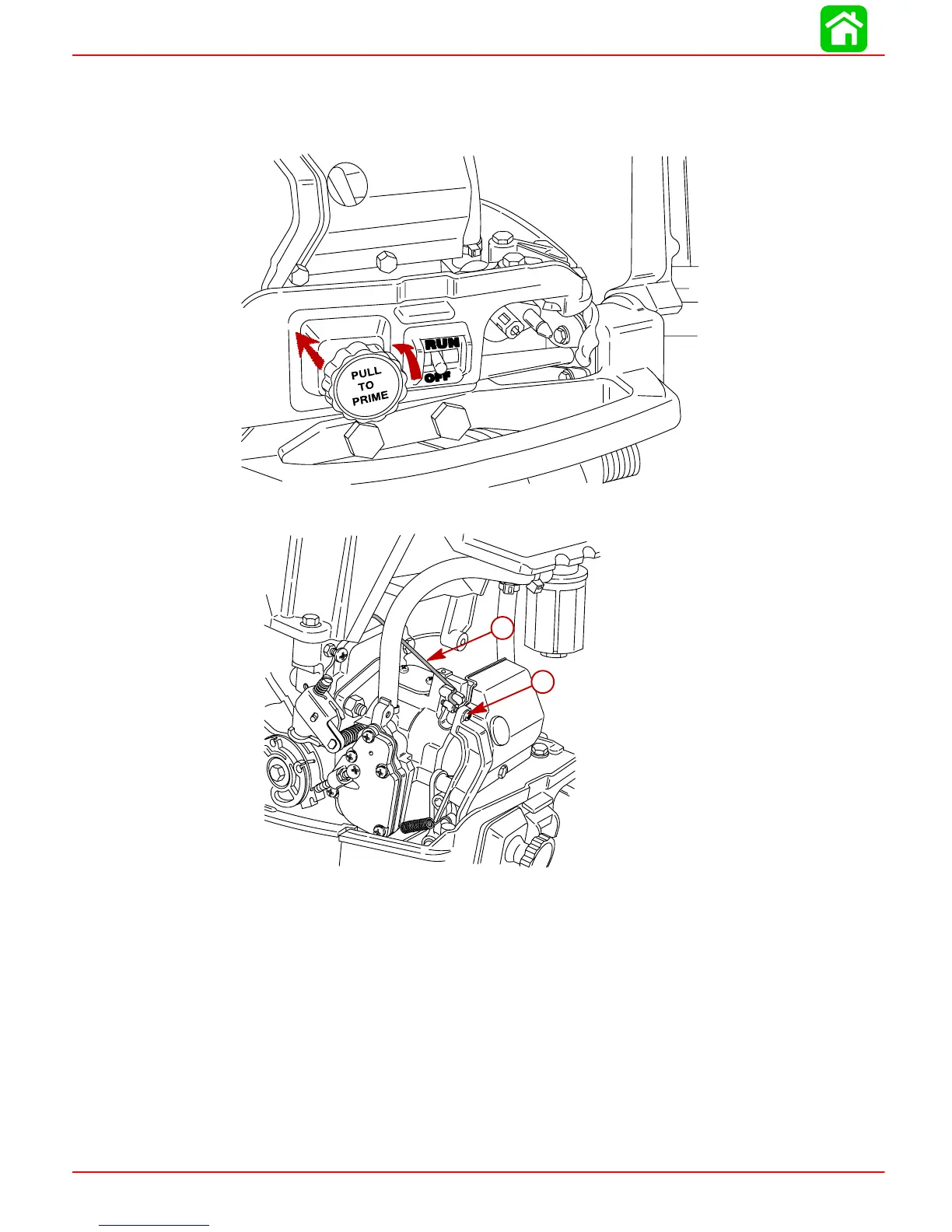

IDLE WIRE ADJUSTMENT
1.
Push primer/fast idle knob completely in and rotate fully counterclockwise.
2.
Shift engine to “
Neutral
”.
57037
3.
Adjust screw (a) to remove all clearance between idle wire (b) and trigger
.
b
a
57070
a-
Screw
b-
Idle Wire
4.
Check fast idle speed by turning primer knob to full clockwise position. Fast idle speed
should be 1500 – 2000 RPM.
