POWERHEAD
90-826883R2 JUNE 1998 Page 4-21

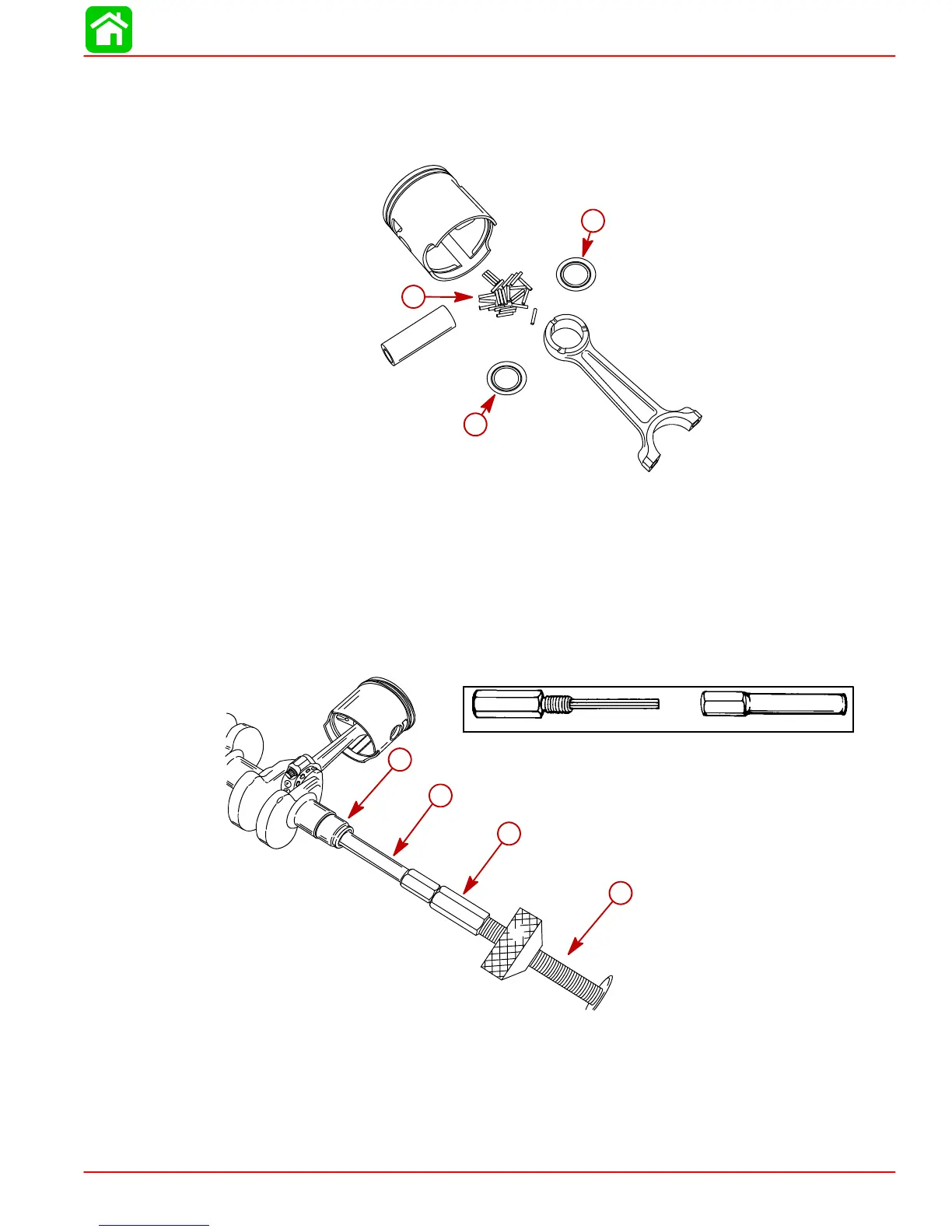

IMPORTANT: Piston pin needle bearings and locating washers will fall out when
piston is removed from connecting rod.
5. Slide piston pin tool from piston and remove piston, needle bearings and locating
washers.
a
b
b
57101
a - Needle Bearings
b - Locating Washers
6. Remove (and discard) coupling seal using:
Snap On* Expanding Rod (CG 40-4)
Snap On Collet (CG 40-A6)
Slide Hammer (91-34569A1)
*Purchase from: Snap On Tools Corporation
2801 - 80th Street
Kenosha, WI 53141-1410
CG 40-A6
CG 40-4
53045
57102
a
b
c
d
a - Coupling Seal
b - Collet (CG 40-15)
c - Expanding Rod (CG 40-4)
d - Slide Hammer (91-34569A1)
