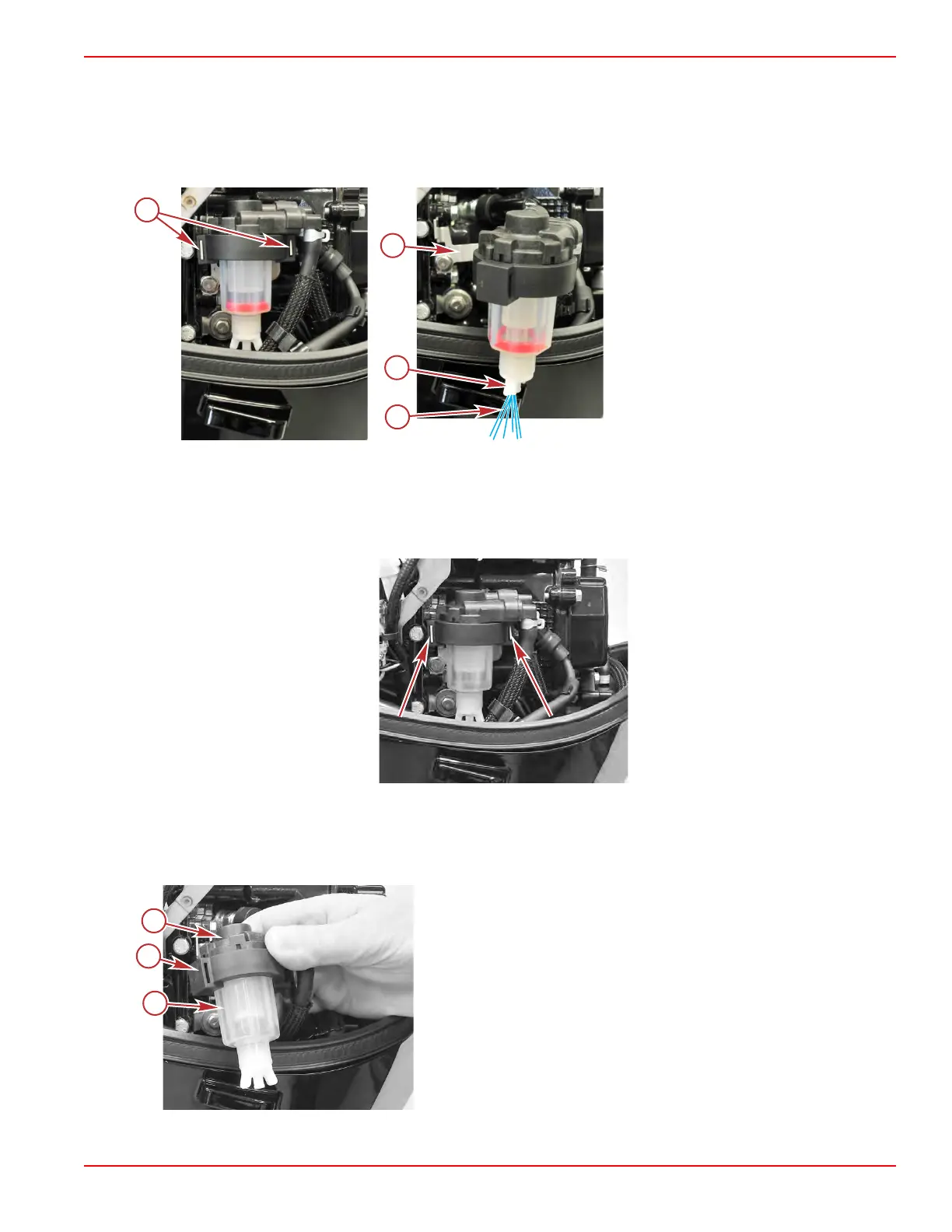

3. Pull the filter assembly—including the rubber mount—off of the mounting bracket on the engine, and swing the assembly
over the edge of the engine.
4.
Loosen the drain valve until liquid flows out of the bottom. Empty the filter bowl's contents into an approved container. To
protect the environment, immediately clean up spilled fluids and dispose of according to local laws and regulations.
NOTE: A drain hose can be temporarily installed onto the center drain port of the drain fitting to assist emptying the
contents into an approved container.
a - Mounting bracket
b - Drain valve
c - Empty contents into an approved
container
Fuel Filter Replacement
Filter Removal
1.
Pull the filter assembly—including the rubber mount—off of the mounting bracket on the engine, and swing the assembly
over the edge of the engine cowl.
Filter assembly mounting bracket
2. Pull the rubber mount downward, to remove it from the filter assembly.
3.
Remove the sight bowl from the filter housing.
a - Filter housing
b - Rubber mount
c - Sight bowl
4. Pull the filter element off the filter housing.
Maintenance
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 1B-5
