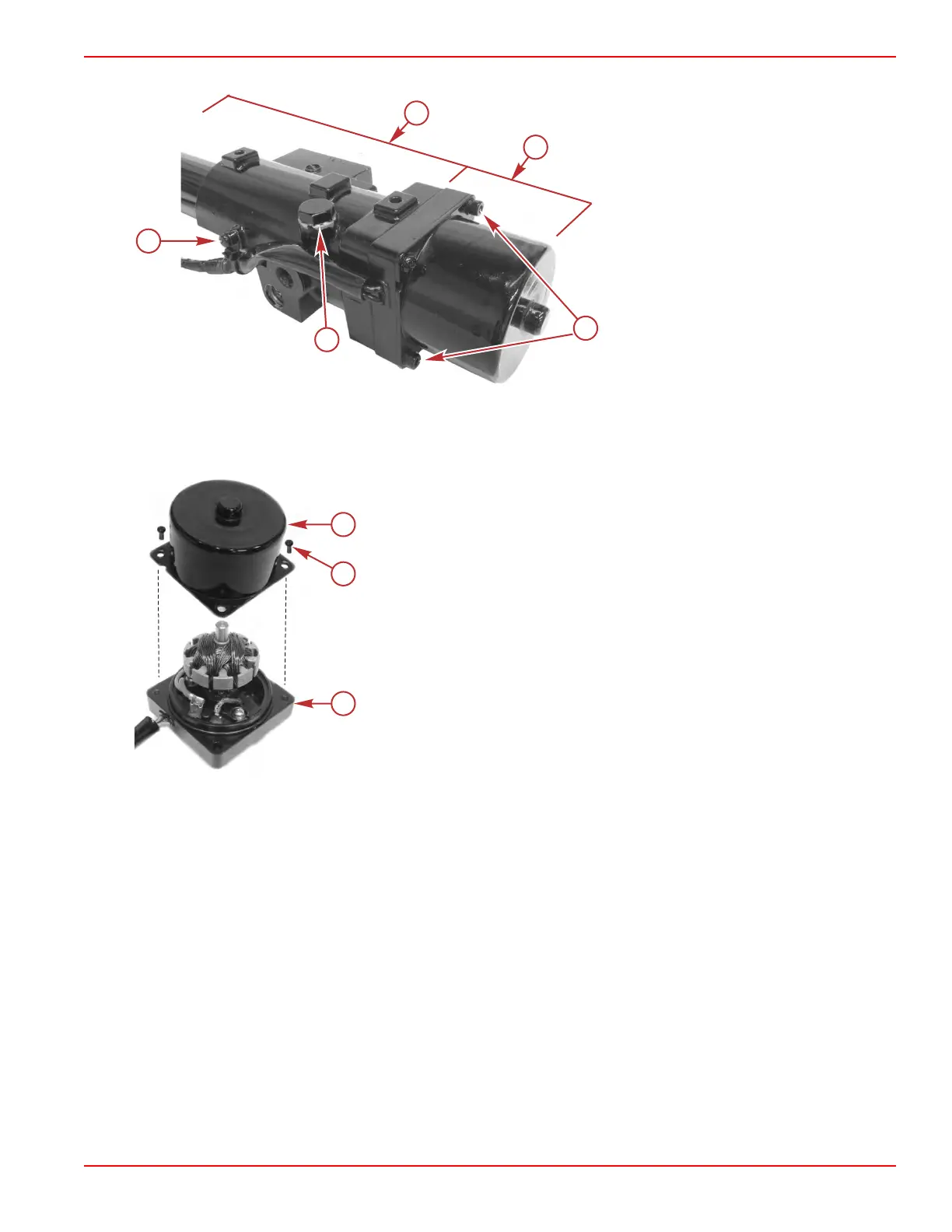

6. Separate the motor assembly from the power tilt pump and cylinder assembly.
a - Wire harness retaining screw
b - Power tilt pump and cylinder assembly
c - Motor assembly
d - 4 mm internal hex screw
e - Reservoir fill plug
Power Tilt Motor Disassembly, Inspection, and Repair
1.
Remove the two cross slotted screws securing the motor housing to the bracket assembly.
a - Motor cover
b - Screws (2)
c - Motor bracket
2. Remove the armature from the motor housing.
Test for Short
1.
Test armature on a growler. Follow the growler manufacturer's test instructions.
2. Indication of a short requires replacement of armature.
Power Tilt
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5B-21
