Description Nm lb‑in. lb‑ft
Shoulder screw 13 115 –

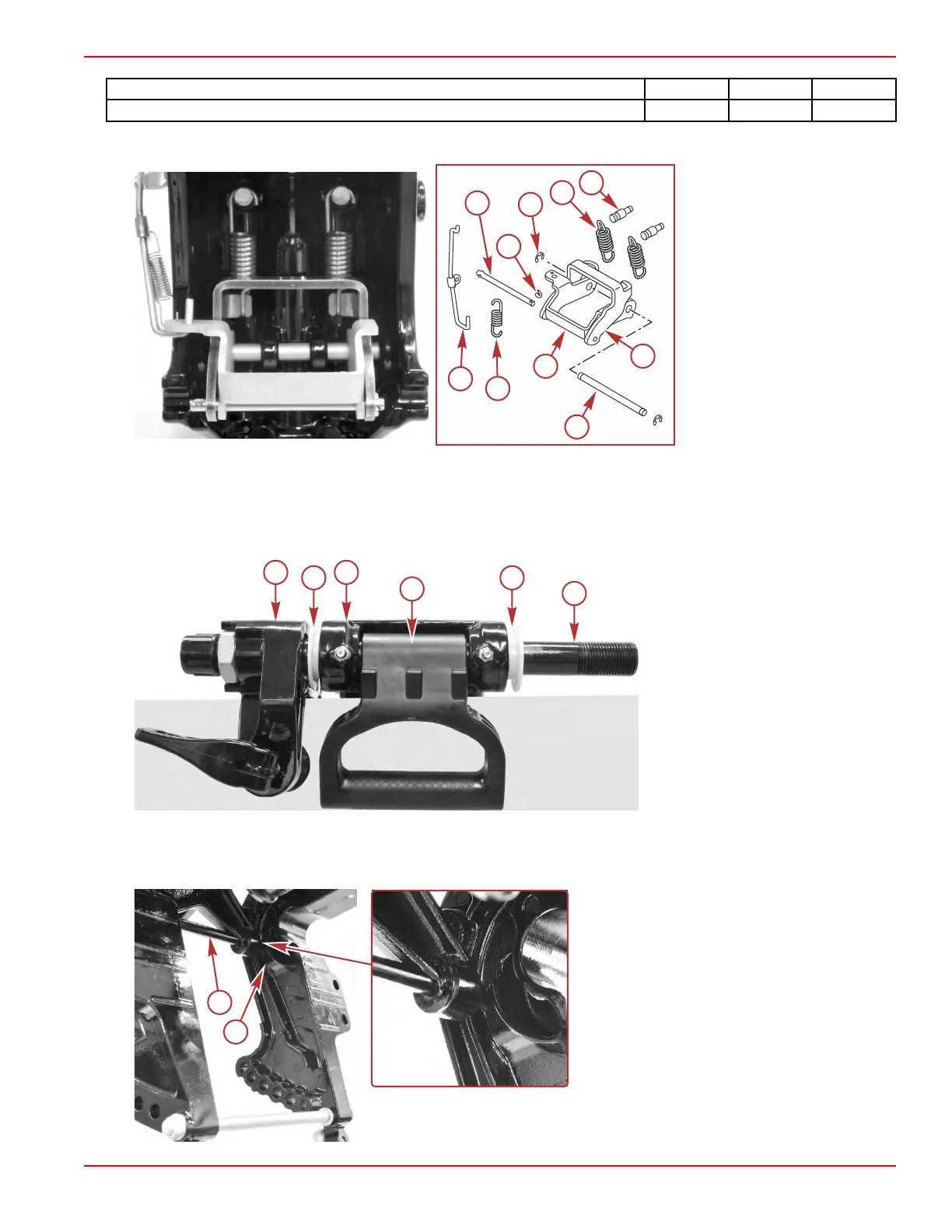

Reverse Lock
a - Reverse lock spring
b - Reverse lock link
c - Reverse lock rod
d - Split pin
e - E‑clip (2)
f - Reverse lock spring (2)
g - Pin (2)
h - Reverse lock
i - Reverse lock arm
j - Reverse lock shaft
Swivel Bracket Installation
1.
Clean the tilt tube and clamp brackets.
2. Insert the tilt tube through the starboard clamp bracket.
3. Install the two bushings, the swivel bracket, and the carry handle onto the tilt tube.
a - Starboard clamp bracket
b - Bushing (2)
c - Swivel bracket
d - Carry handle
e - Tilt tube
4. Install a washer onto the clamp bracket spacer.
5.
Install the port clamp bracket onto the tilt tube and clamp bracket spacer.
6. Ensure that the tilt lock guide bar is in the channels of the clamp brackets.
a - Tilt lock guide bar
b - Channel in the starboard clamp bracket (port
similar)
Clamp/Swivel Bracket and Driveshaft Housing
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5A-43
To Next Page
