3. Clean the swivel bracket.
4.
Apply 2‑4‑C with PTFE to the bushings.
5. Install the bushings into the swivel bracket.

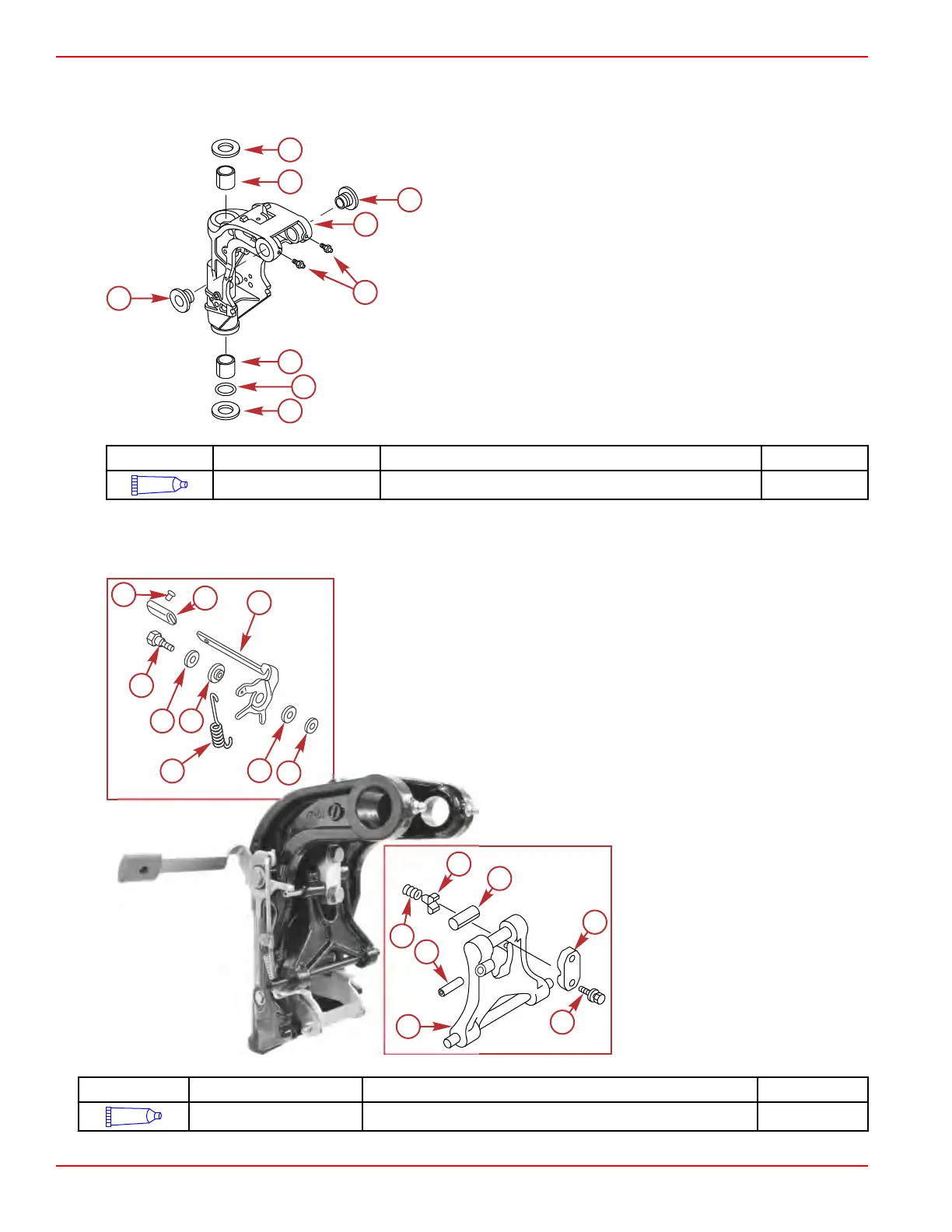

a - Thrust plate (2)
b - Swivel bushing (2)
c - Tilt bushing (2)
d - Swivel bracket
e - Grease fitting
f - O‑ring
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Swivel bracket bushings 92-802859A 1
Tilt Stop and Reverse Lock Lever
IMPORTANT: When assembling the reverse lock lever, be certain to apply Loctite® 222 Threadlocker to the shoulder screw
and tighten the screw to the specified torque.
a - Button
b - Grip
c - Lever
d - Washer
e - Washer
f - Spring
g - Bushing
h - Washer
i - Shoulder screw
j - Spring
k - Pivot guide
l - Bushing
m - Spring pin
n - Plate
o - Screw
p - Tilt stopper
Tube Ref No. Description Where Used Part No.
51
Loctite® 222 Threadlocker Shoulder screw 92-809818
a
a
b
b
f
d
c
c
e
35211
63345
a
c
b
f
h
g
e
d
i
j
k
l
m
p
n
o
Clamp/Swivel Bracket and Driveshaft Housing
