Clamp Brackets, Swivel Bracket ‑ Manual Tilt Models
Clamp Brackets ‑ Manual Tilt
NOTE: To remove the clamp brackets:
• Use an overhead hoist to support the outboard by the lifting eye, or
• Lay the outboard on its back side.
Port Bracket Removal
1. Remove the tilt tube cap and locknut.
2. Remove the tilt pin.
3. Remove the nut and washer from the port end of the clamp bracket spacer.
4. Remove the port clamp bracket from the tilt tube.
5. Inspect the anode.

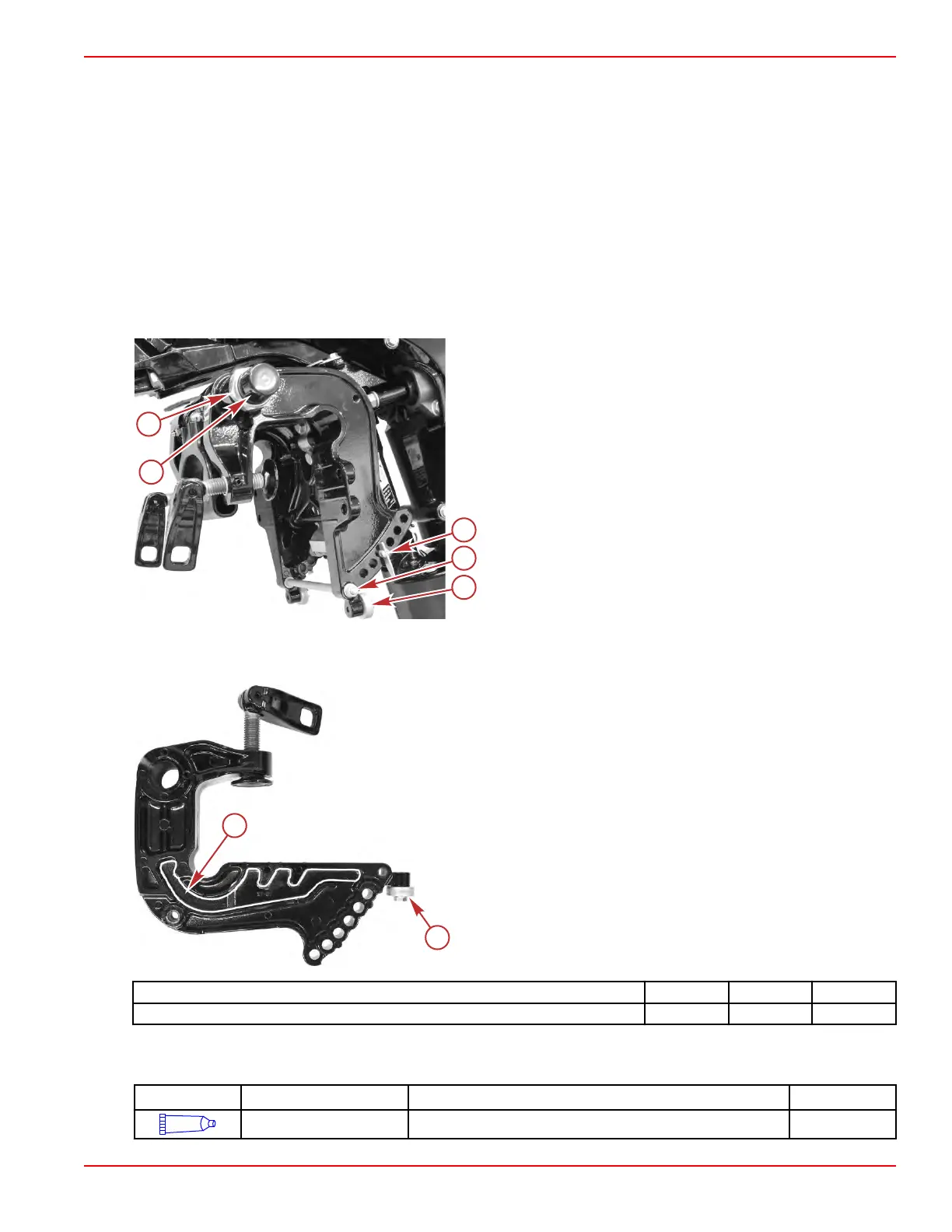

a - Tilt tube cap
b - Locknut
c - Tilt pin
d - Nut and washer on the clamp bracket spacer
e - Anode
Port Bracket Installation
1.
Install the anode. Tighten the screw to the specified torque.
a - Channel for tilt lock guide bar
b - Anode
Description Nm lb‑in. lb‑ft
Anode screw (M6 x 16) 6.0 53.1 –
2. Install the clamp bracket partially onto the tilt tube and clamp bracket spacer.
3.
Lubricate the plastic washer on the tilt tube with 2‑4‑C with PTFE.
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Tilt tube washer 92-802859A 1
Clamp/Swivel Bracket and Driveshaft Housing
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5A-37
