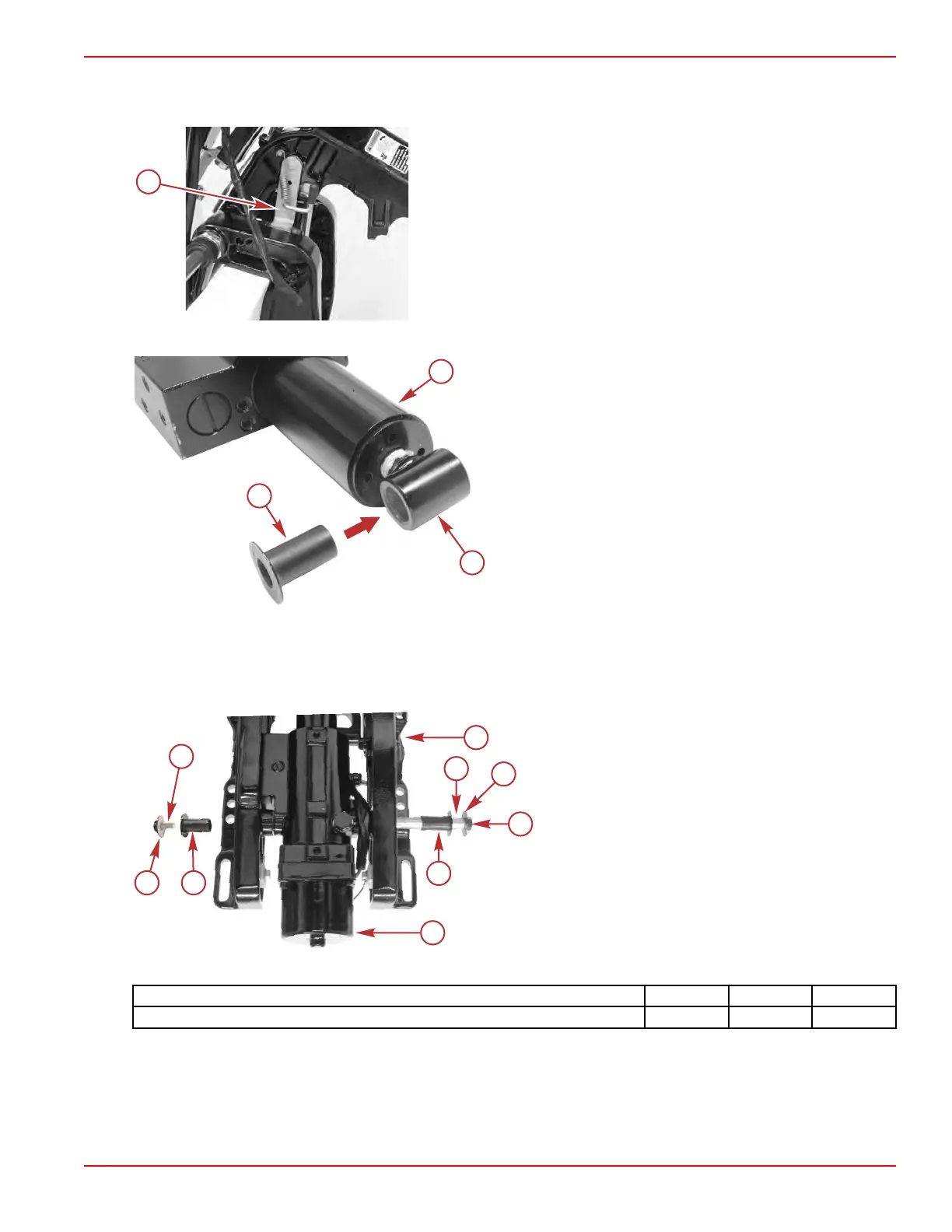

Power Tilt Installation
1.
Tilt the outboard to the full up position and engage the tilt support lever.
a - Tilt support lever
2. Install the bushing into the tilt cylinder rod eye.
a - Power tilt cylinder
b - Tilt cylinder rod eye
c - Bushing
3. Install the pivot pin bushings in the clamp bracket.
4.
Place the power tilt assembly between the clamp brackets.
5. Install the tilt cylinder pivot pin through the clamp brackets and the power tilt unit.
6. Install the washer and retaining screw into the pivot pin. Tighten the screws to the specified torque.
a - Clamp bracket
b - Pivot pin
c - Washer (2)
d - Retaining screw (2)
e - Pivot pin bushing (2)
f - Power tilt assembly
Description Nm lb‑in. lb‑ft
Pivot pin retaining screw 13 115 –
Power Tilt
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5B-29
