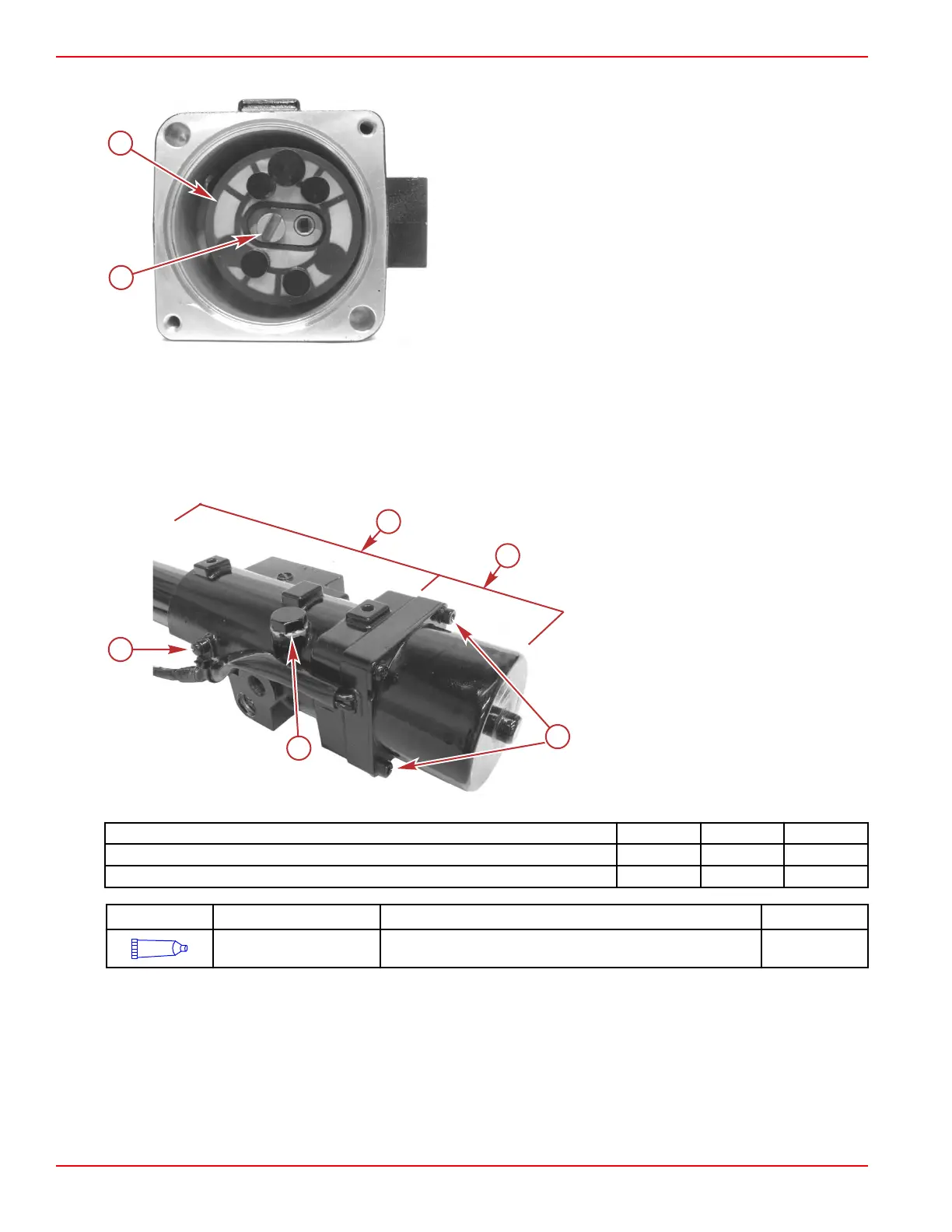

7. Install the pump/motor coupling into the pump.
a - Pump filter
b - Pump/motor coupling
8. Assemble the motor assembly to the power tilt pump and cylinder assembly.
9. Install the wire harness retaining screw.
10. Install the two 4 mm internal hex screws securing the motor assembly to the power tilt pump and cylinder assembly.
Tighten the screws to the specified torque.
11.
Fill the power tilt system with Power Trim and Steering Fluid. Refer to Check Fluid and Purge the Power Tilt System,
preceding.
12. Install the reservoir fill plug.
a - Wire harness retaining screw
b - Power tilt pump and cylinder assembly
c - Motor assembly
d - 4 mm internal hex screw
e - Reservoir fill plug
Description Nm lb. in. lb. ft.
4 mm internal hex screws 5.2 46
Wire harness attaching screw 0.6 5
Tube Ref No. Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power tilt system 92-858074K01
Power Tilt
Page 5B-28 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
