Water Pump Cover Assembly
1.

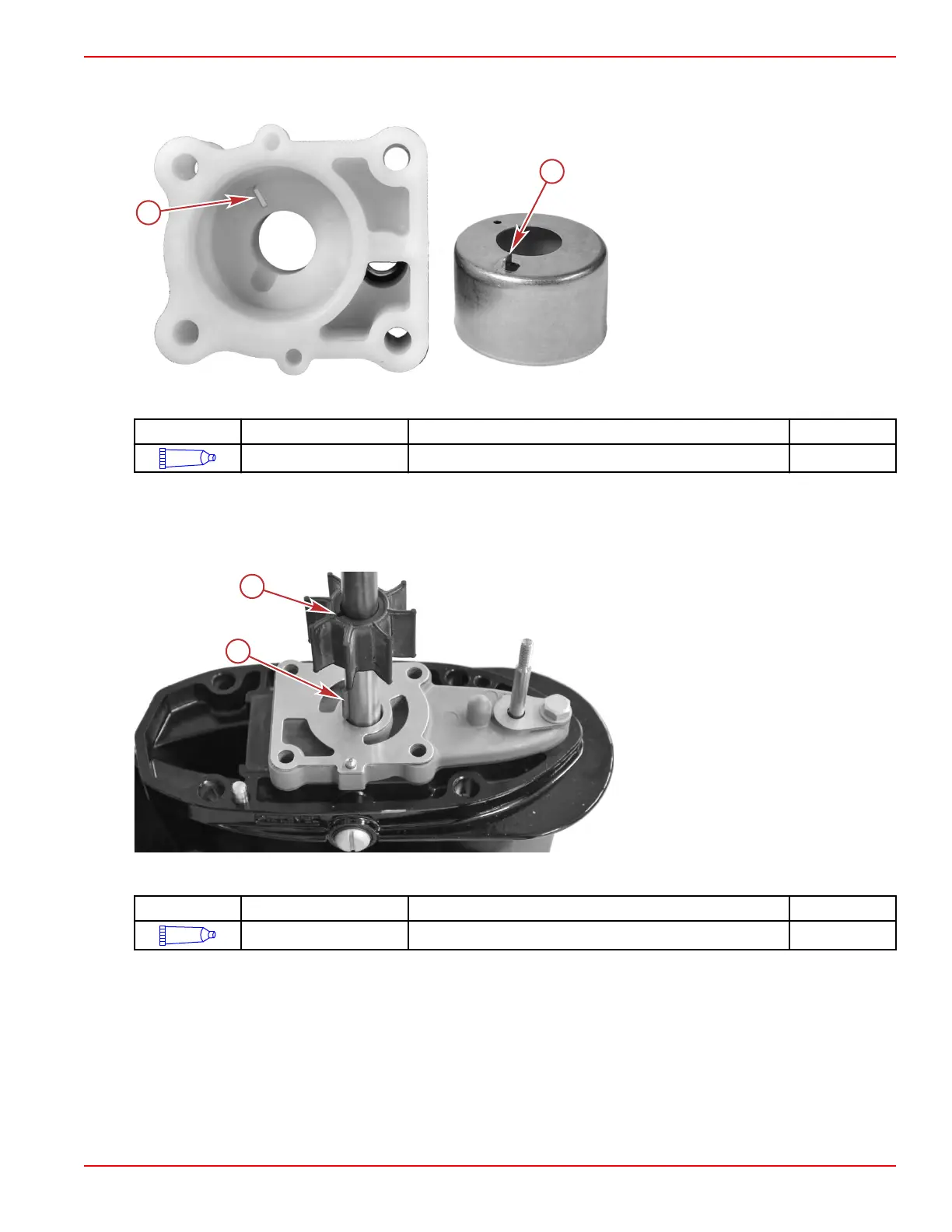

Align the locating tab on top of the water pump liner with the slot in the pump cover. Insert the liner into the pump cover.
a - Slot in the water pump cover
b - Tab on top of the water pump liner
2. Install the water pump drive key. Use 2‑4‑C with PTFE to hold the key to the driveshaft.
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Water pump drive key 92-802859A 1
IMPORTANT: The impeller should be replaced, regardless of appearance, whenever the gearcase is serviced. If the old
impeller must be used, it must be installed in the direction of the original rotation. Installing the impeller with the vanes
reversed from their original direction will result in vane breakage.
3.
Align the slot in the impeller with the drive key, and install the impeller.
a - Water pump drive key
b - Slot in impeller
4. Lubricate the inside diameter of the water pump liner with 2‑4‑C with PTFE.
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Inside diameter of the water pump liner 92-802859A 1
Gear Housing (2.15:1)
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 6A-37
