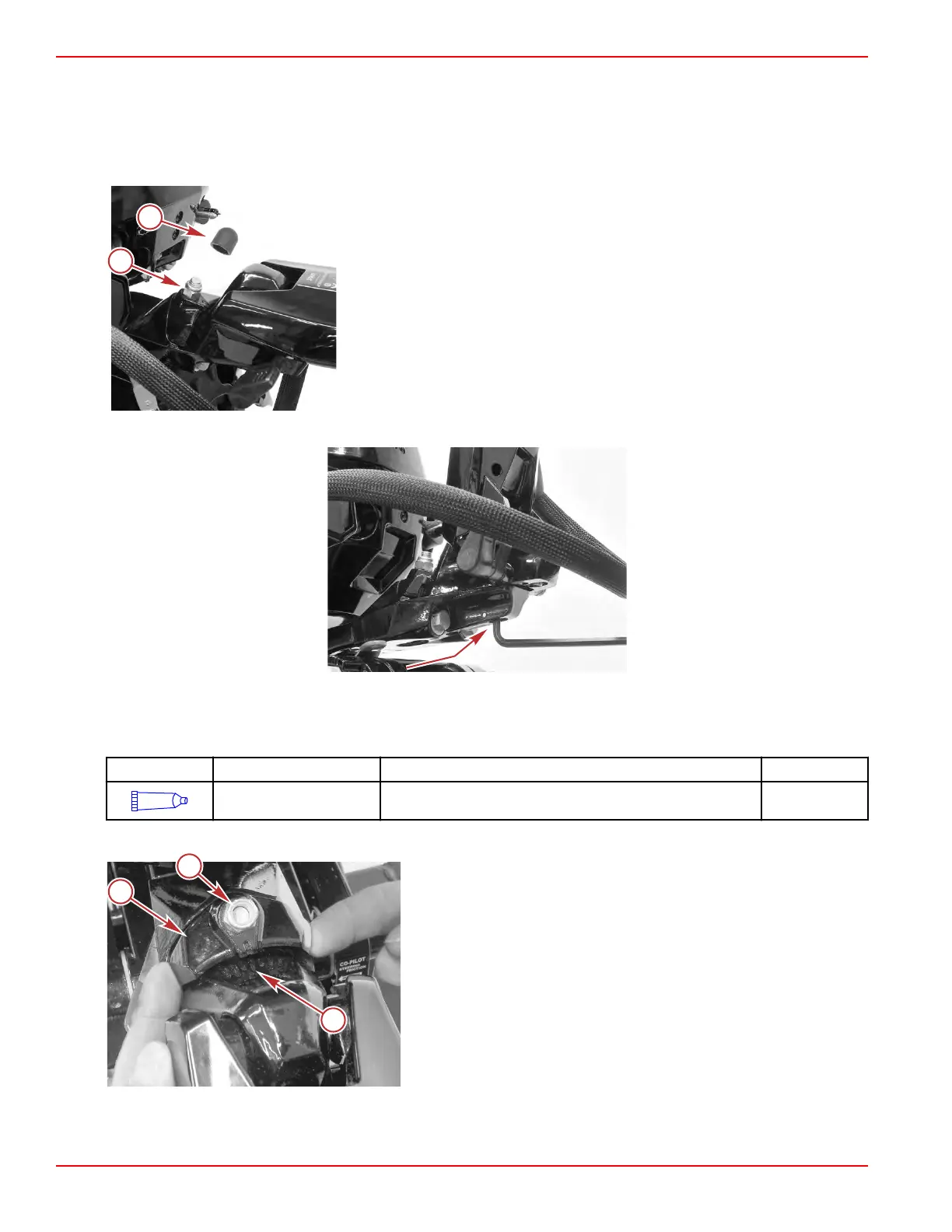

Tiller Handle Yaw
The tiller handle yaw allows the operator to change the angle of the handle up to 18° left or right of center. Each increment
demarcation is 6°.
1.
Remove the rubber boot covering the clamp screw nut.
2. Remove the 15 mm locknut.
a - Locknut
b - Rubber boot
3. Loosen the 6 mm Allen socket head pivot screw.
4. Apply Loctite® 271 Threadlocker to the exposed threads of the pivot screw.
NOTE: It may be necessary to loosen the pivot screw a couple of turns to gain sufficient access to the screw threads.
Tube Ref No. Description Where Used Part No.
7
Loctite® 271
Threadlocker
Exposed threads of the pivot screw 92-809819
5. Lift the clamp with your fingers and rotate the tiller handle to the desired angle.
a - Clamp
b - Locknut
c - Center demarcation
6. Install the locknut, tighten it to the specified torque, and install the rubber boot.
Tiller Handle
Page 7B-8 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
