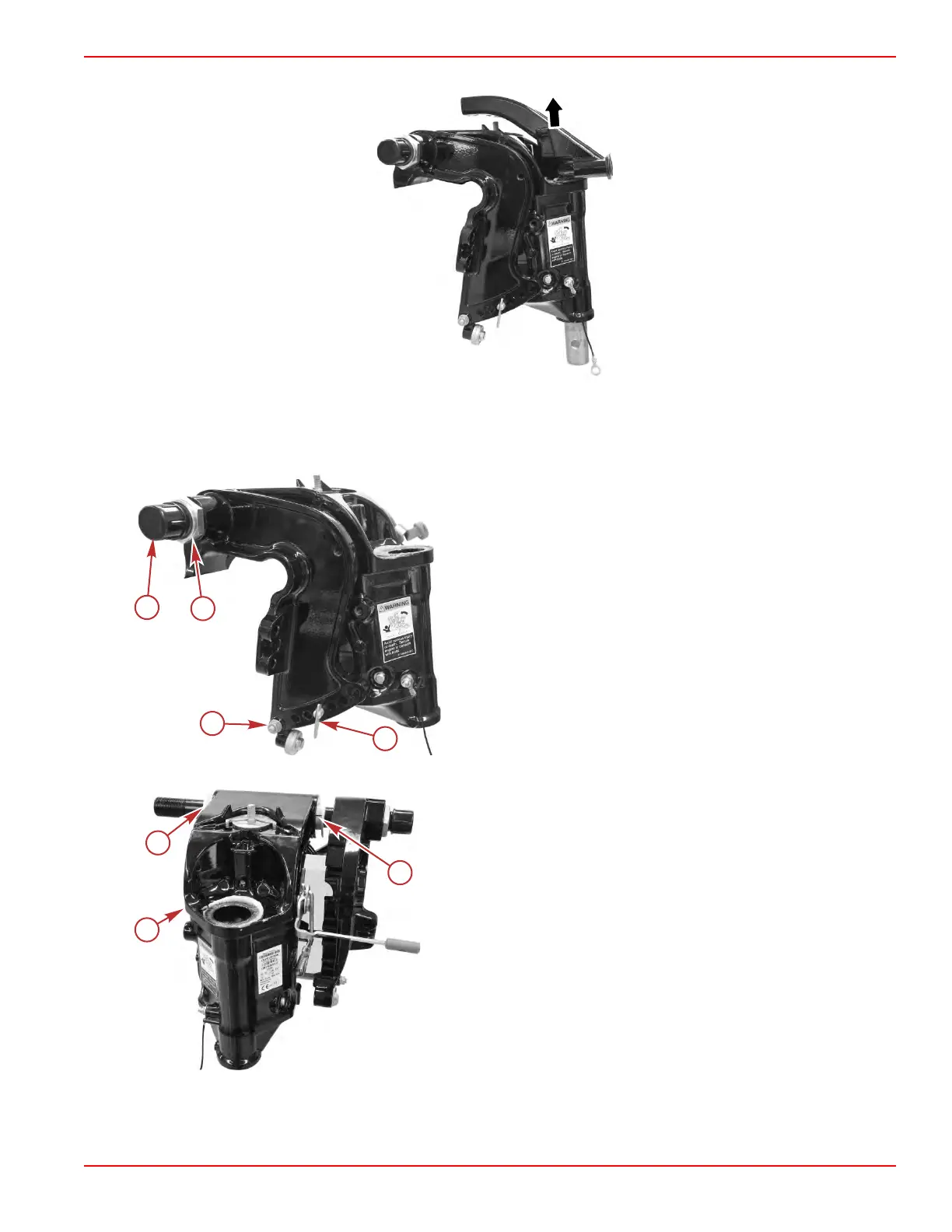

4. Remove the steering arm.
Swivel Bracket Removal
1.
Remove the steering arm. Refer to Steering Arm Removal.
2.
Remove the tilt tube port side cap and locknut, spacer bar nut and washer, and tilt pin.
a - Tilt tube cap
b - Tilt tube port side locknut
c - Spacer bar nut and washer
d - Tilt pin
3. Remove the swivel bracket and bushings from the tilt tube.
a - Bushing
b - Swivel bracket
Swivel Bracket Inspection
1.
Remove the bushings from the swivel bracket.
2. Inspect for wear. Replace if necessary.
Clamp/Swivel Bracket and Driveshaft Housing
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5A-41
