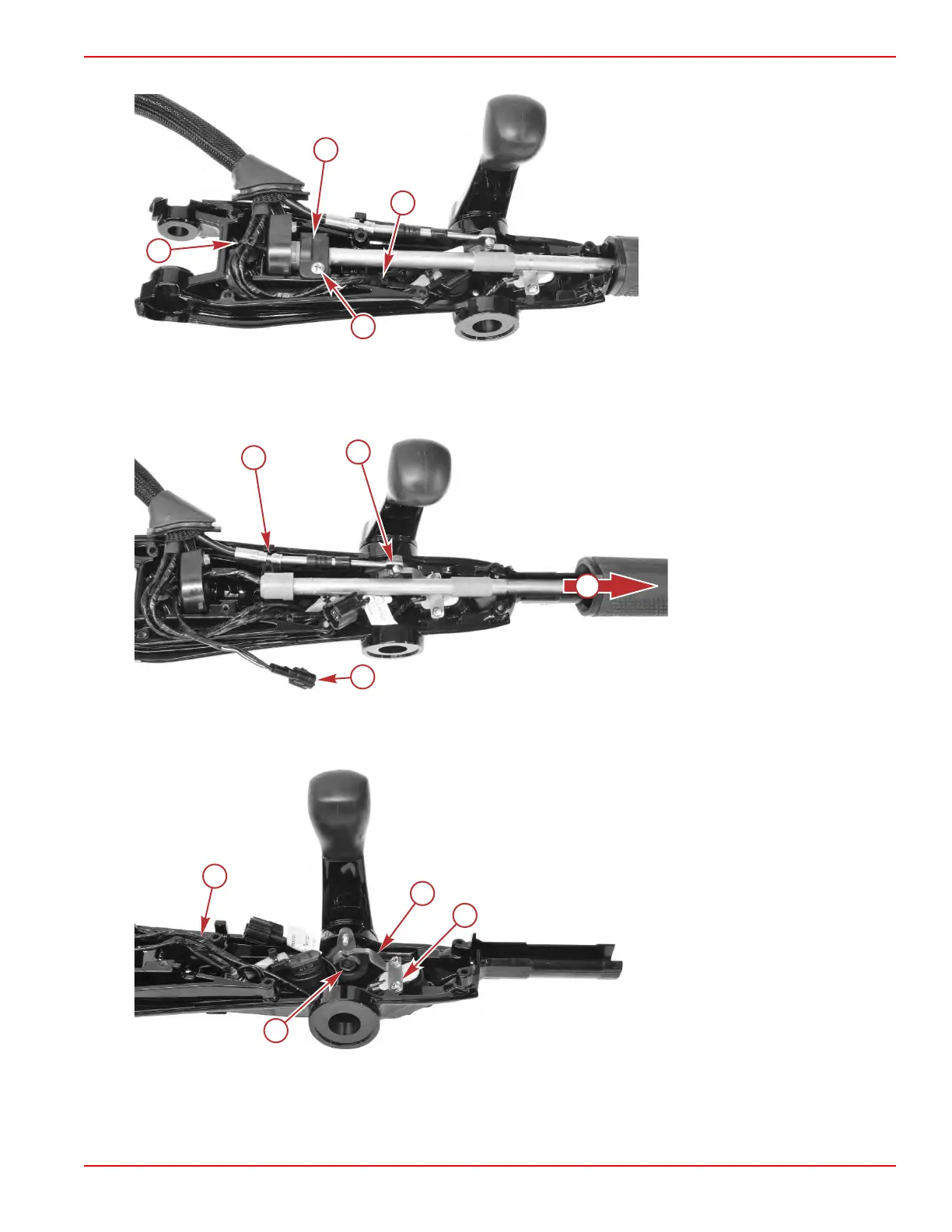

7. Cut the cable ties that secure the tiller handle harness.
a - Screw
b - Throttle shaft bracket
c - Cable tie (2)
8. Pull the throttle handle out far enough to gain access to the stop switch electrical connector. Disconnect and depin the
2‑pin male connector.
9.
Pull the throttle handle and lift to remove it from the tiller handle housing.
10. Remove the locknut that secures the shift cable to the shift lever. Lift the shift cable from the retaining slot.
a - Pull throttle handle partially
out
b - Stop switch electrical
connector (disconnect and
depin)
c - Locknut
d - Retaining slot
11. Remove two screws that secure the shift detent spring, and remove the spring.
12.
Remove the tiller handle harness.
13. Remove one screw to remove the shift handle and shift cam from the tiller handle housing.
Power tilt model shown, manual tilt
model similar
a - Screws (2)
b - Shift detent spring
c - Tiller handle harness
d - Shift handle screw
Throttle Cable Case
Disassembly/Inspection
1.
Remove the screw and remove the cover from the cable holder.
Tiller Handle
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 7B-11
