11. Remove one screw to remove the water pump indicator tube.

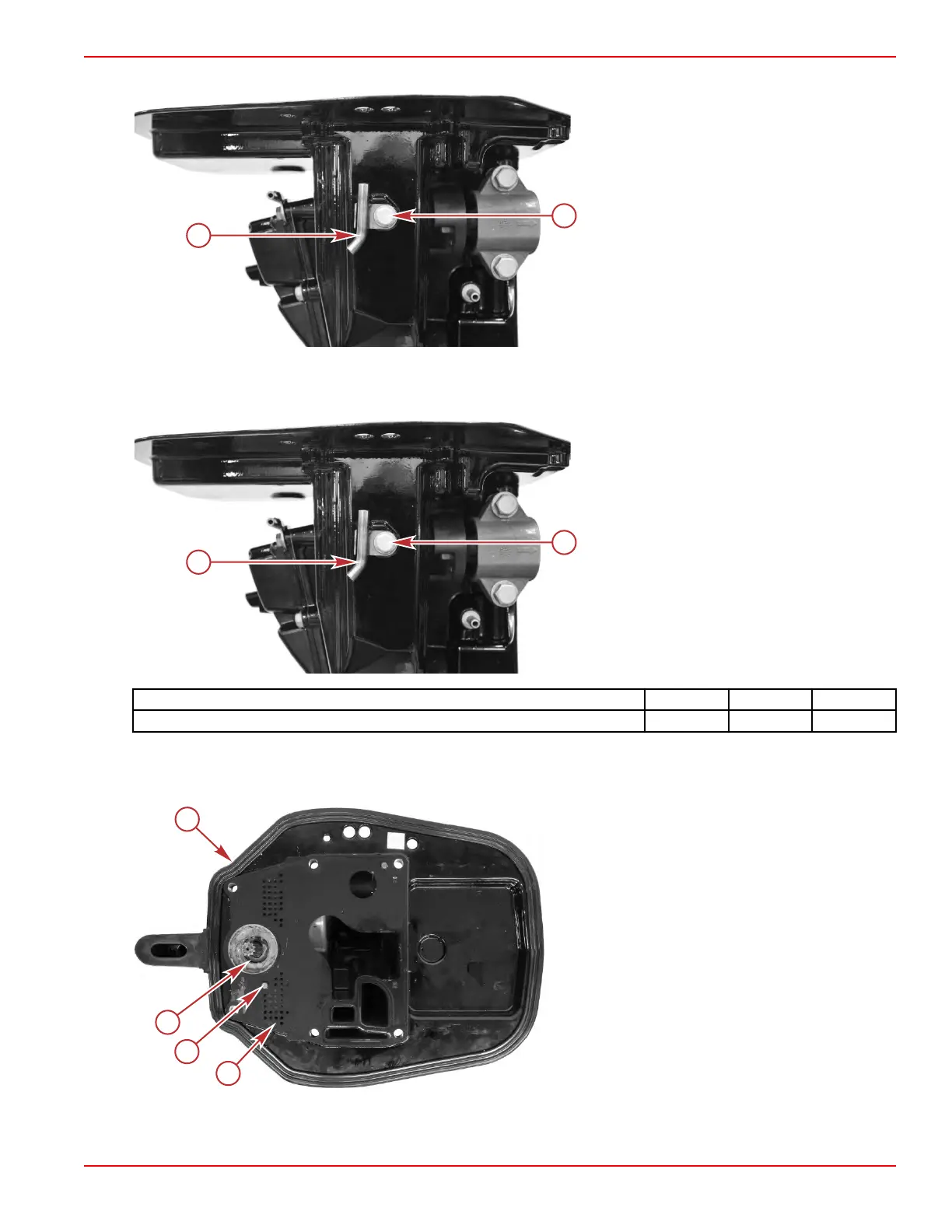

a - Water pump indicator tube
b - Screw
Driveshaft Housing Installation
1.
Using one screw, attach the water pump indicator tube to the driveshaft housing. Tighten the screw to the specified torque.
a - Water pump indicator tube
b - Screw
Description Nm lb‑in. lb‑ft
Screw 6.0 53.1 –
2. Install the rubber seal onto the driveshaft housing.
3.
Install the driveshaft seal.
4. Install the powerhead gasket.
a - Powerhead gasket
b - Dowel pin
c - Driveshaft seal
d - Rubber seal
5. Install the driveshaft housing onto the steering arm.
Clamp/Swivel Bracket and Driveshaft Housing
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5A-47
