3. Remove the steering arm.
Power Tilt Removal
1.
Remove the steering arm. Refer to Steering Arm Removal.
2.
Remove the P‑clip that secures the power tilt pump wires to the outside of the port clamp bracket.
3. Cut the cable ties securing the power tilt pump wires to the inside of the port clamp bracket.
4. Pull the power tilt pump wires through the opening in the clamp bracket.
5. Remove the screw securing the power tilt ground cable to the power tilt unit.
6. Tilt the swivel bracket away from the rest of the assembly:
a. Open the power tilt manual release valve.
b. Raise the swivel bracket to the full tilt position.
c. Close the manual release valve.
For details, refer to Section 5B ‑ Power Tilt Features and Operation.
7. Remove the screw and washer securing the upper pivot pin.
8. Remove one of the screws and washers securing the lower pivot pin.
9. Remove the upper pivot pin.
10. Remove the lower pivot pin and remove the power tilt unit.

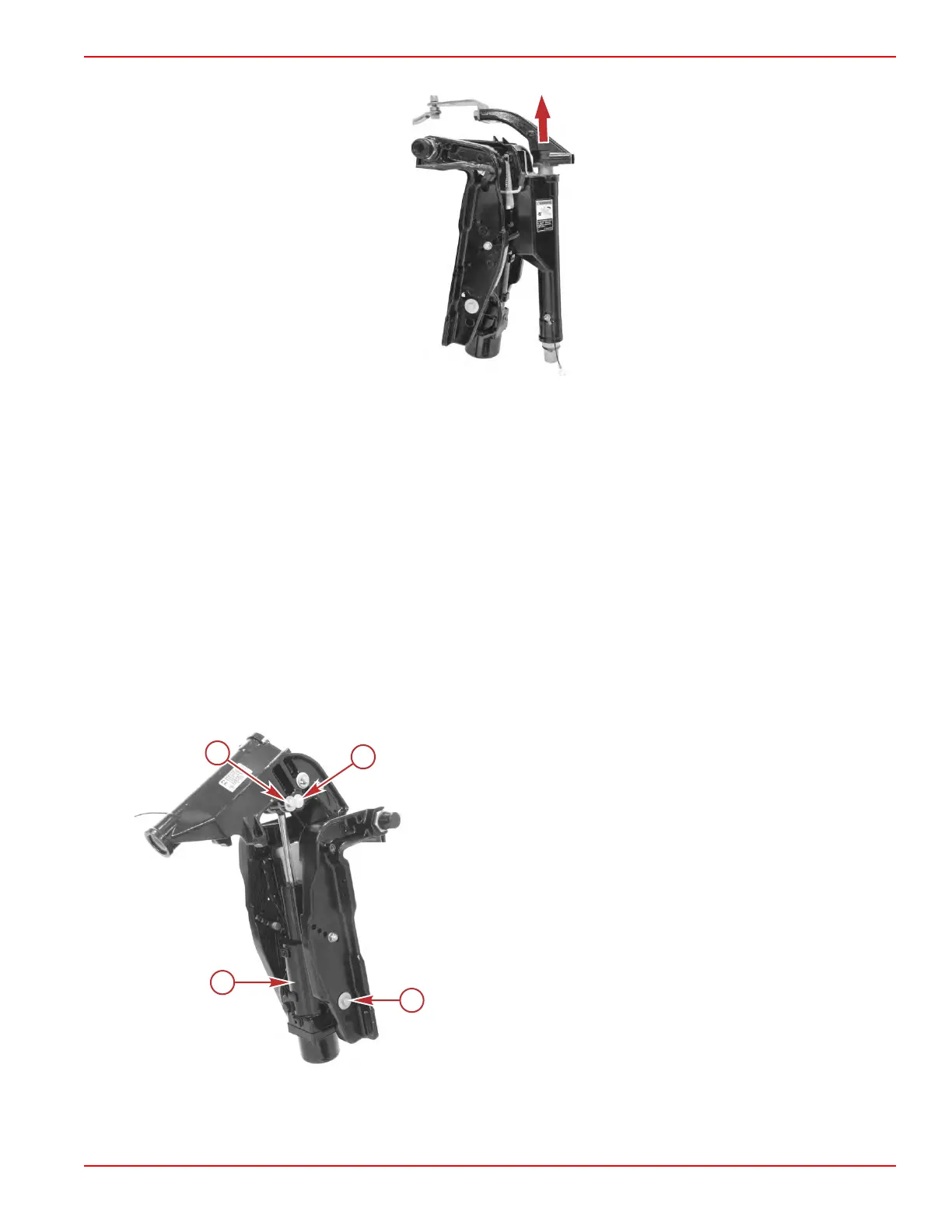

a - Screw and washer
b - Upper pivot pin
c - Lower pivot pin screw and washer
d - Power tilt unit
Clamp/Swivel Bracket and Driveshaft Housing
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5A-31
