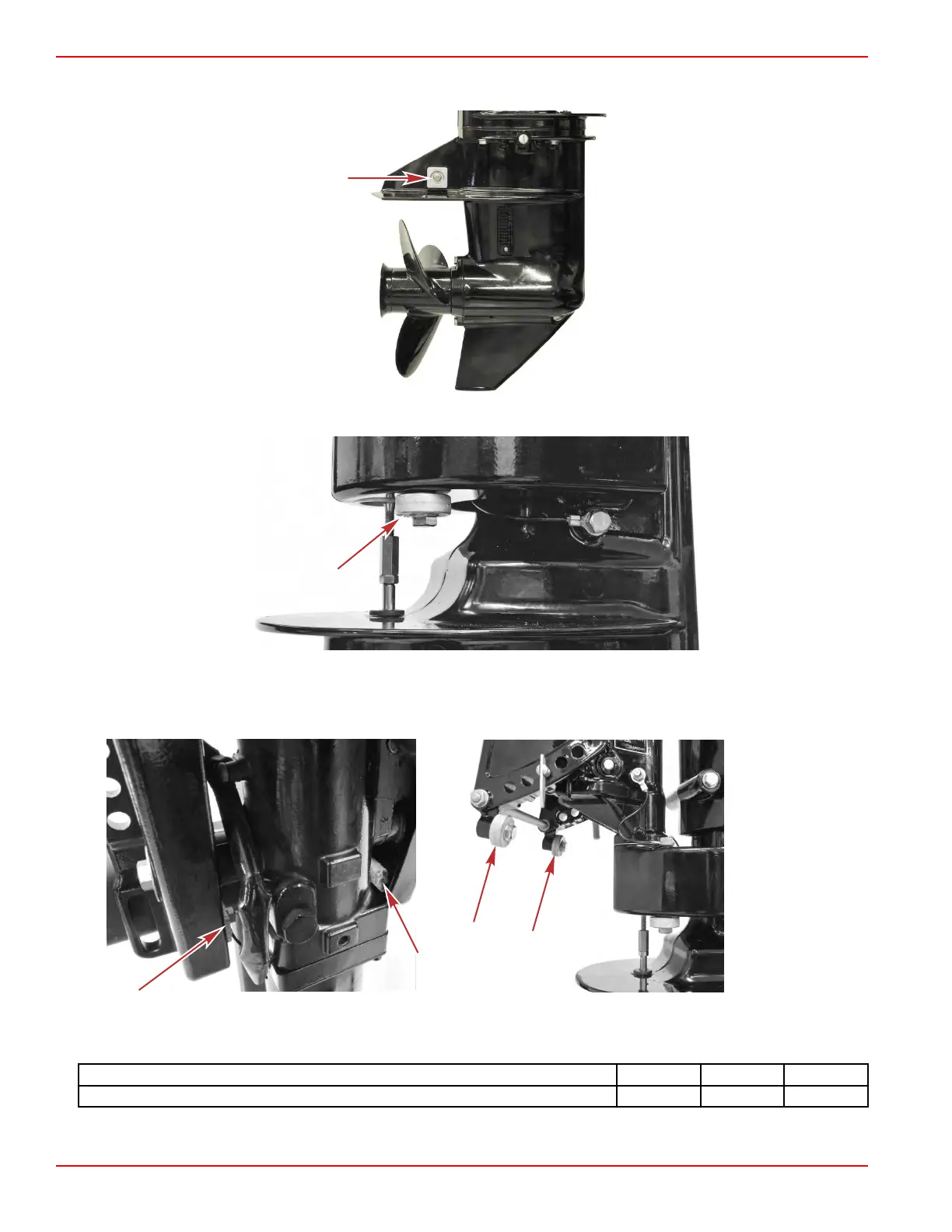

• One anode is mounted on the starboard side of the midsection, just above the anti‑ventilation plate. A screw and nut
secure the anode to the midsection.
• One anode is located on the underside of the lower engine mount. A screw secures it to the mount.
• Two anodes are located near the bottom of the transom brackets. On power tilt models, the anodes are on the inside faces
of the brackets. On manual tilt models, the anodes are secured to the rear face of the brackets. The anodes on both
models are secured to the brackets with screws.
Power tilt model Manual tilt model
When installing an anode, be certain to tighten the fasteners to the specified torque.
Description Nm lb‑in. lb‑ft
Anode fasteners 6.0 53.1 –
