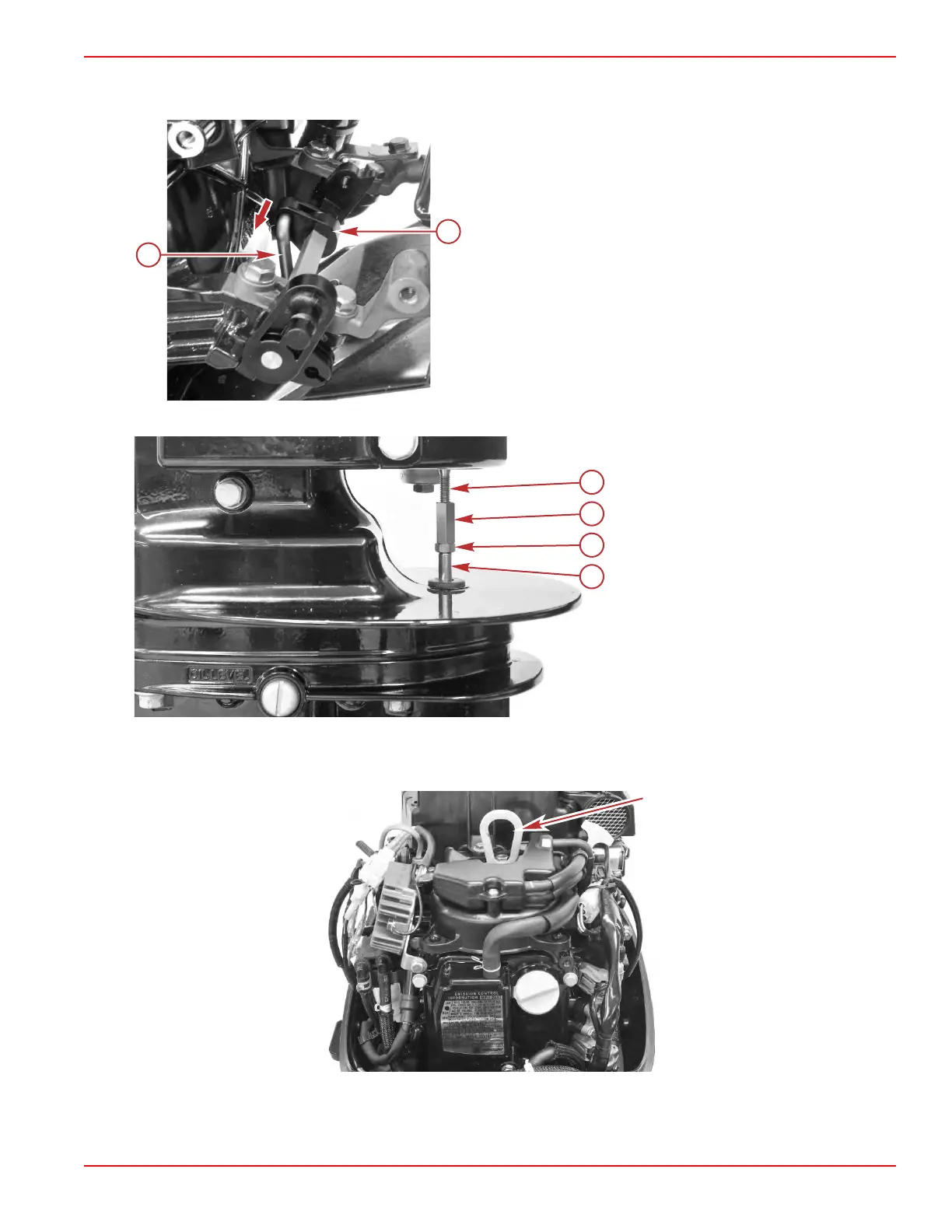

a. With the gearcase in neutral, disconnect the upper shift shaft from the shift lever by pulling the upper shift shaft
toward starboard.
Pull the upper shift shaft toward starboard
a - Upper shift shaft
b - Shift lever
b. Disconnect the upper shift shaft from the lower shift shaft by turning the jam nut (down) and the coupler (up).
a - Upper shift shaft
b - Coupler
c - Jam nut
d - Lower shift shaft
c. Remove the coupler from the upper shift shaft, and lift the upper shift shaft out of the steering arm/swivel bracket
assembly.
5.
Attach the engine lifting eye to an overhead hoist or other suitable lifting equipment. Remove the slack from the hoist.
6.
Remove the lower mount. Refer to Lower Mount.
Clamp/Swivel Bracket and Driveshaft Housing
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5A-21
