Mercury 20 EFI FourStroke Service Manual

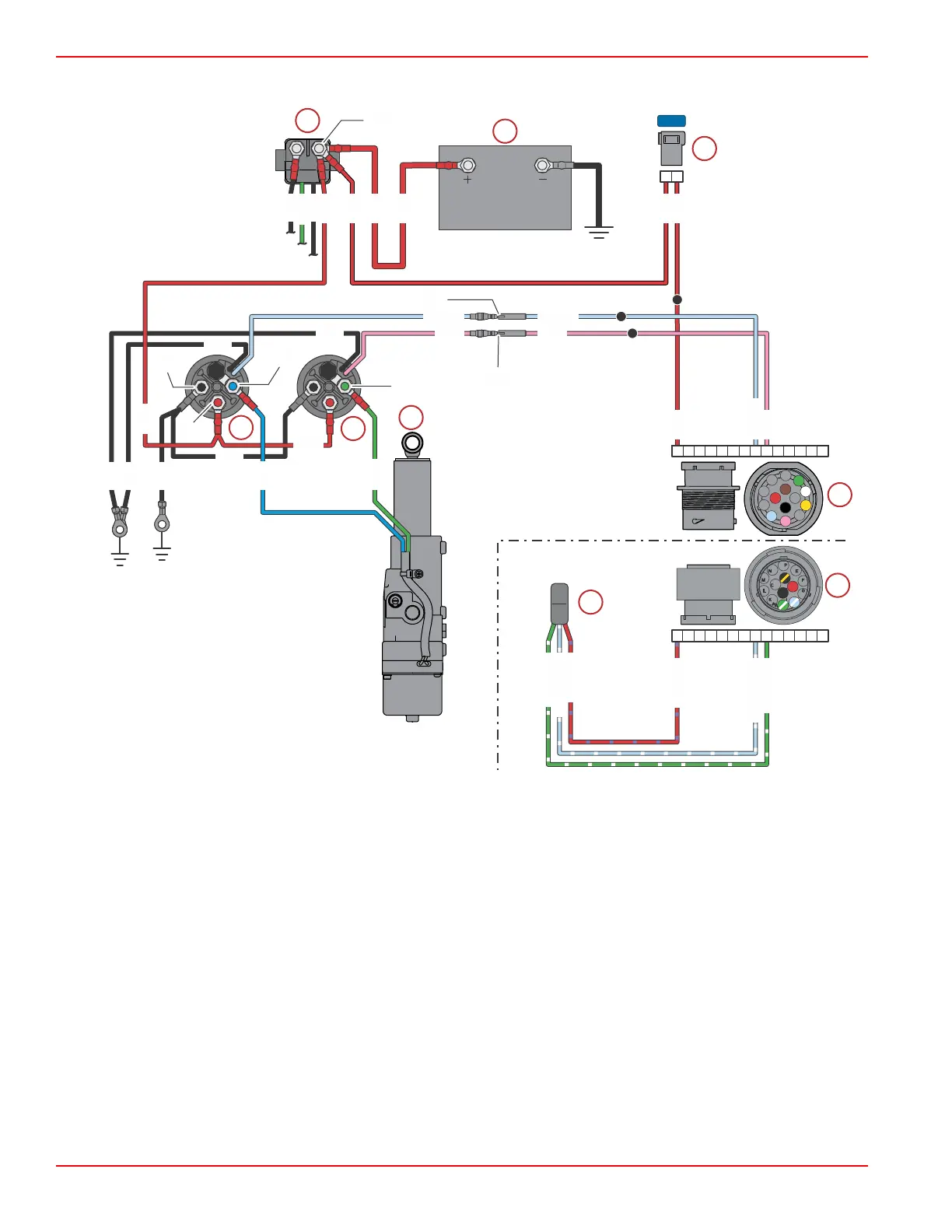

Power Tilt Electrical Circuit - Tiller Handle
a - Starter solenoid
b - Battery
c - 15‑amp fuse
d - Tilt up relay
e - Tilt down relay
f - Power tilt assembly
g - Engine harness 14‑pin connector
h - Tiller handle harness 14‑pin connector
i - Tiller handle tilt switch
A B D
J
K M N PE F HC G L
UP
DN
RED/PPL
LT BLU/WHT
GRN/WHT
J5
J8
J7
A B D
J
K M N PE F HC G L
E
H
J
K
L
M
N
A
B
C
D
F
G
P
1 2
15A
BLK
BLK BLK
BLK
BLK
BLK
RED
RED
RED
RED RED
GRN
BLK BLK
RED
RED RED
RED
LT BLU LT BLU
PNK PNK
LT BLU PNK
GRN BLU
63522
a
b
c
d
e
f
g
h
i
3, 9
2
6
10
5
1, 4
7, 8
RED/PPL
LT BLU/WHT
GRN/WHT
Power Tilt
Page 5B-14 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
