4. Remove the two screws that secure the ignition coil to the engine, and remove the coil.

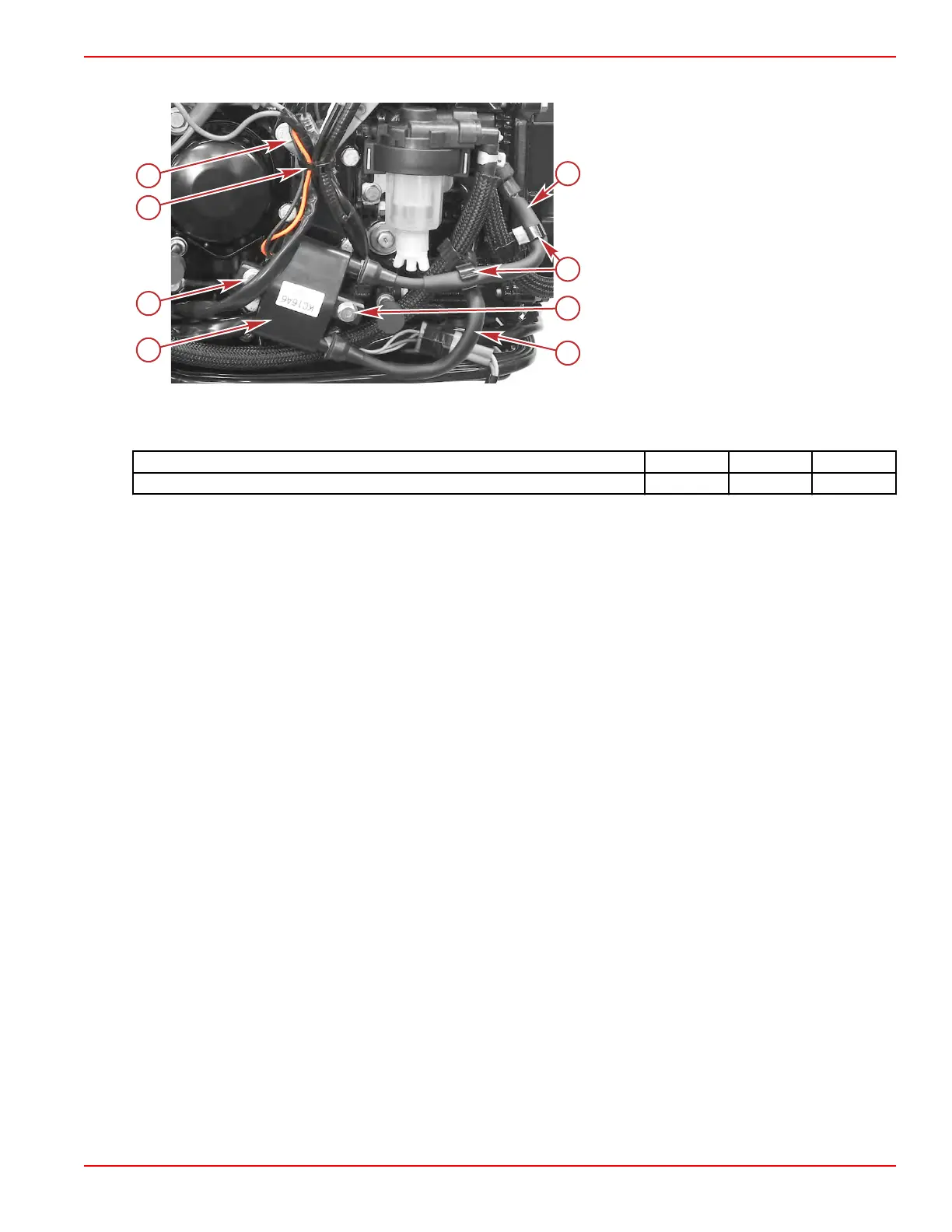

a - Ignition coil
b - Screw (2)
c - Cable tie
d - Orange and black coil input wires
e - Spark plug wire (2)
f - Clip on upper spark plug wire (2)
Installation
1.
Install the ignition coil onto the engine using two screws. Tighten the screws to the specified torque.
Description Nm lb‑in. lb‑ft
Ignition coil mounting screws 6.0 53.1 –
2. Attach the spark plug wires to the spark plugs. Be sure to connect the correct plug to the correct wire. Ensure that the plug
wires are properly seated and that the upper plug wire is properly secured with clips.
3. Connect the orange and black coil input wires to the engine harness.
4. Secure the wires to the harness and bracket with a cable tie.
Ignition
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 2A-19
