Revision:1.0(2023-01-12)
77

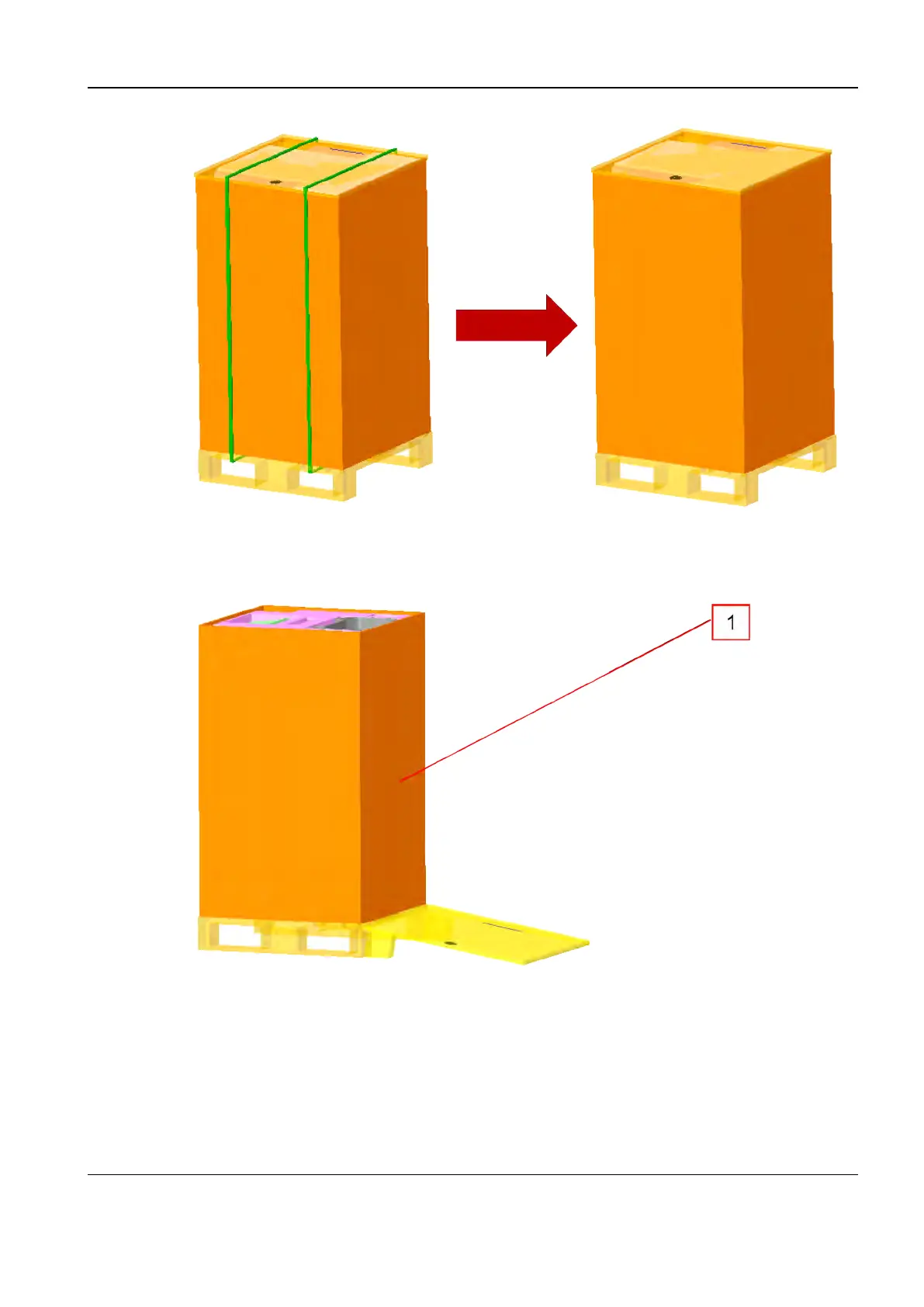

2. Remove the wooden roof and place it in the front of the device (this side faces outward) as a
slope.
1 Outward facing label
3. Release the wall clamp.
a. When the space above is sufficient, take the wall clamp up directly.
b. When the space above is insufficient, perform the following steps: Clamp the plastic buckle
on one side of the wall clamp from both sides to the middle by hand, and pull the buckles
Diagnostic Ultrasound System
Service Manual
3 Installation
To Next Page
