outward at the same time. Pull all the four buckles out of the wall clamp and take the wall
clamp off after releasing it.

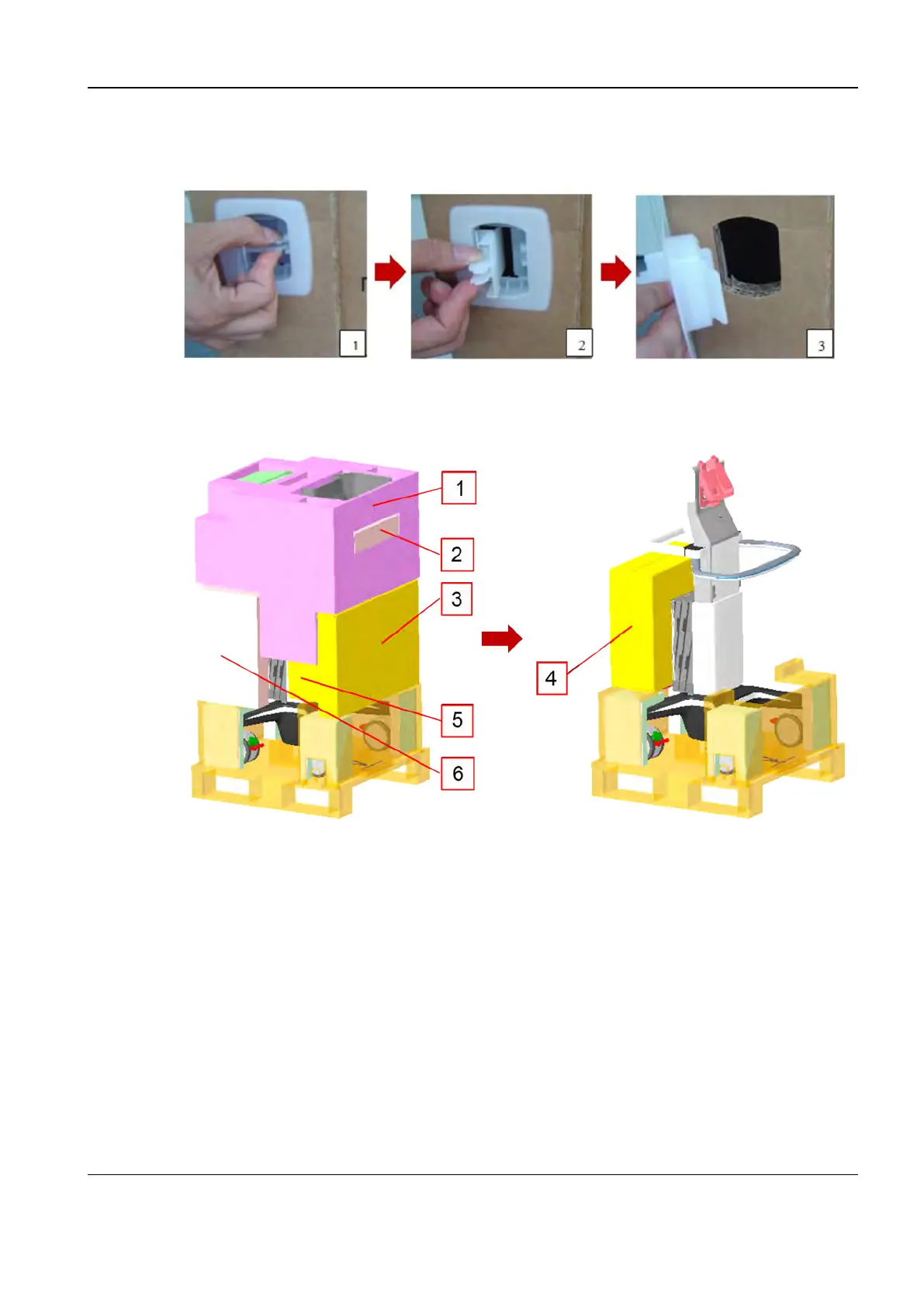

4. Take off the top foam, accessory package, display package, main unit box package, lithium
battery package, and probe package in sequence.
1 Top foam
2 Accessory package
3 Display package
4 Main unit box package
5 Lithium battery package
6 Probe package
5. Release the strainer and take off the front fixing plate.
Release the strainer as follows: Hold the strainer with your thumb until the spring is pressed to
the bottom, keep it, and then rotate the strainer for 180°.
