9−1−7. Scaling of analog output

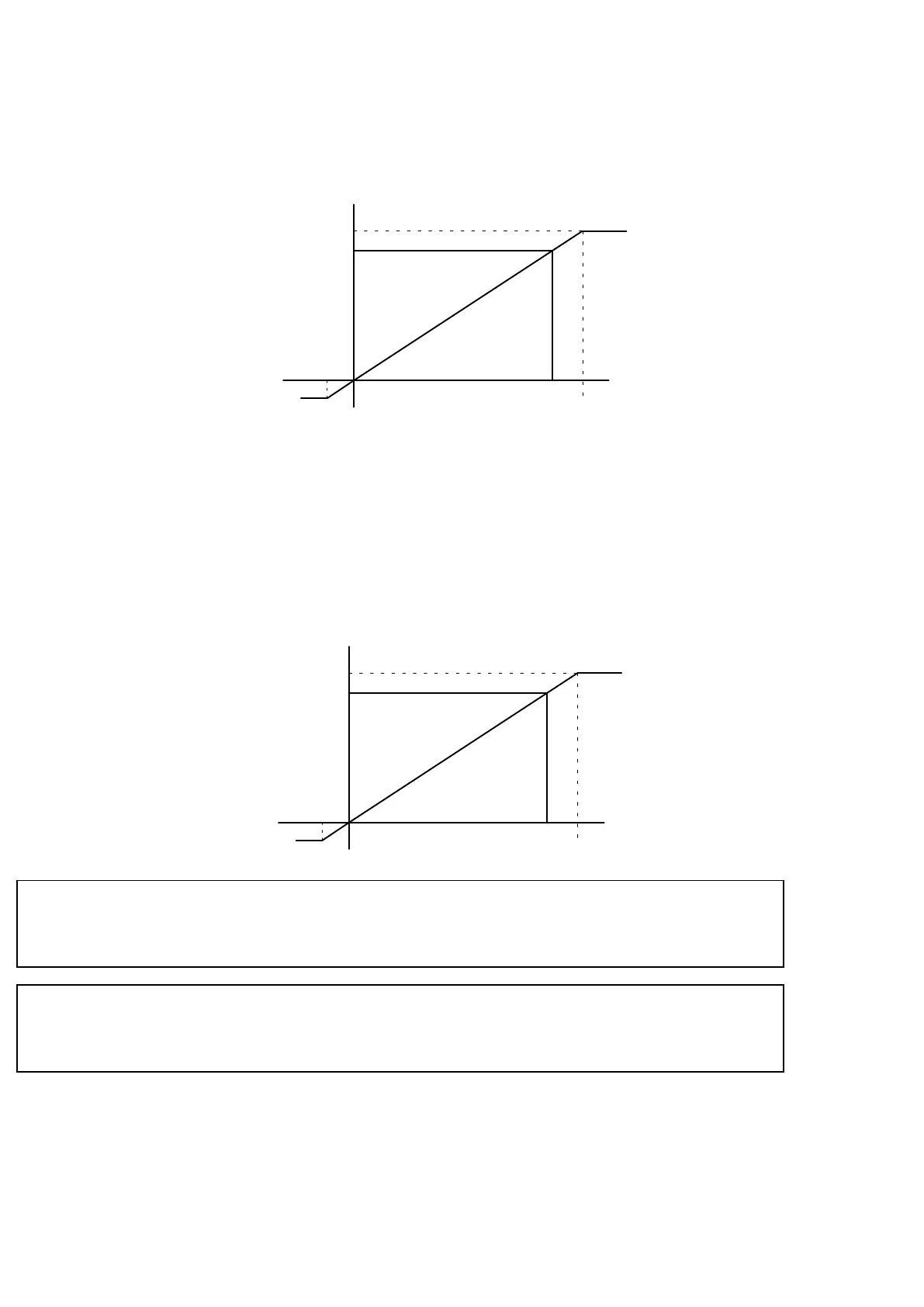

Analog output for standard specifications is set between the minimum value and the maximum
value with the range of 0 ～ 2 000.
By changing FUNC−17 and FUNC−18, optional value can be decided.
Analog Output
Maximum value
Minimum value
0 Display
Maximum
display
Display
Maximum value ＋8 %
Minimum value −8%
Maximum
display + 8 %
FUNC−17 sets the display when the minimum value is desired to output.
FUNC−18 sets the display when the maximum value is desired to output.
EX) FUNC−17 : Set as 1 000
FUNC−18 : Set as 5 000
When the display is 5 000, the maximum value outputs.
When the display is 1 000, the minimum value outputs.
Analog Output
Maximum value
Minimum value
1 000
5 000
Display
Maximum value ＋8 %
Minimum value −8%
5 400
● Take care that setting on FUNC−18 doesn’t exceed the maximum
display value that has set in the section 5.
Warning ● For FUNC−17, less value than FUNC−18 should be set.
If neglected, correct output can’t be obtained.
