102
(4)

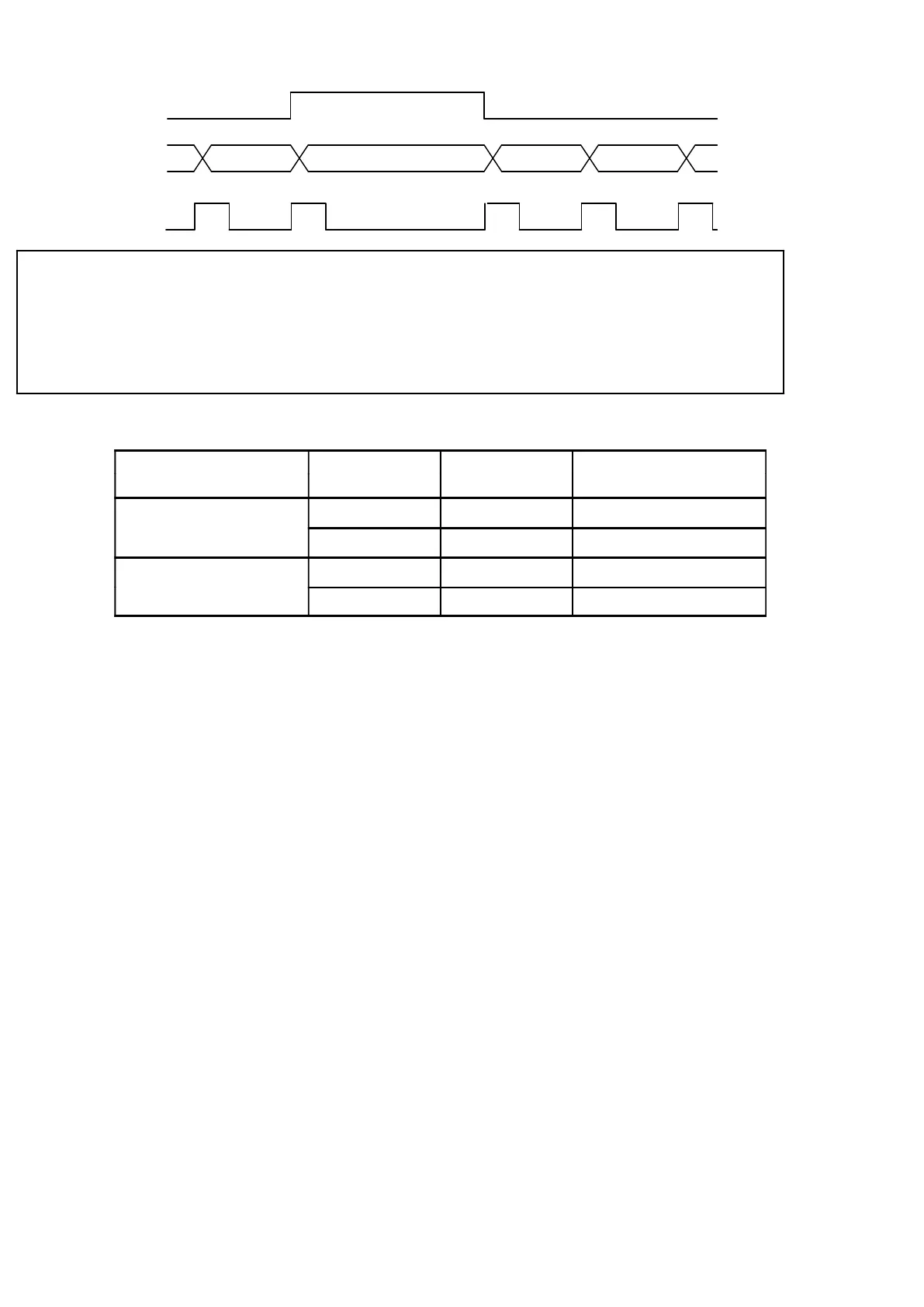

When HOLD signal is input
DATA
POL.
P.C.
ON
HOLD
ON
ON
ON ON
ON
At the time of HOLD signal input, output transistor for P.C. will be
OFF condition(Positive logic electrically).
However, as for P.C., OFF condition is made after one(1) shot of
operation is finished.
9−2−6.
Output condition
Setting
output
Logic
Output
data
Transistor
Pin−COM
level
when
Setting
output
Logic
Output
data
Transistor
condition
Pin−COM
level
when
voltage is fed externally
Negative
Logic
Yes ON L
Negative
Logic
No OFF H
P
ositive
Logic
Yes OFF H
P
ositive
Logic
No ON L
