Function mode

Warning ● During the Function mode, the instrument suspends measurement.

In due corse, even when input of strain gage applied transducer

varies, various kinds of outputs will not vary, that may cause a

destroy in equipment due to malfunction in peripheral equipments.

● With the condition that the display objected to HOLD(FUNC−50),

Function mode cannot be entered when HOLD signal is inputted.

Before entering Function mode, be sure to cancel the input of HOLD.

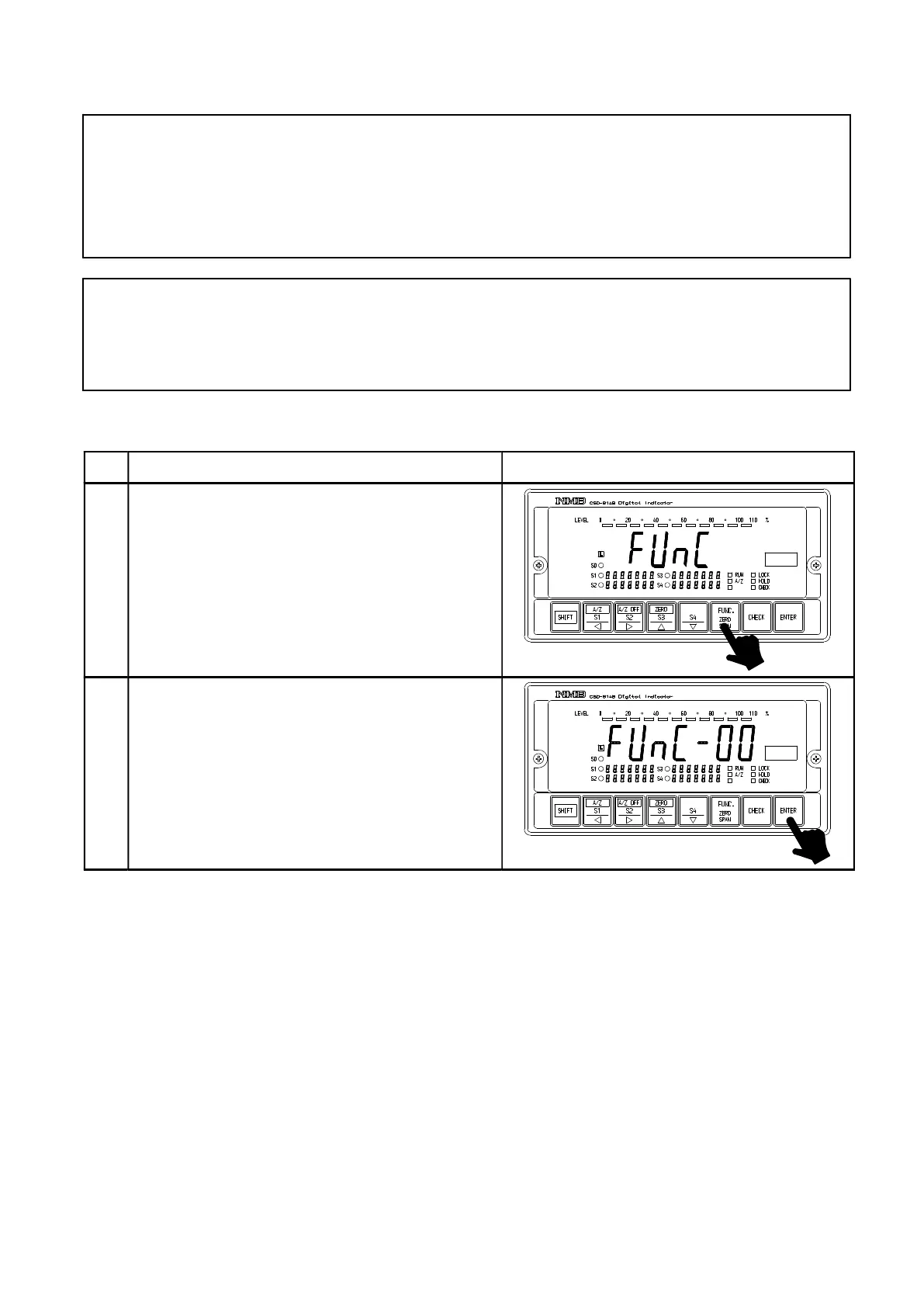

8−1. Setting method for Function mode

Procedures

Press the key for approximately 1 s.

The load display will show “FUNC”.

Press the key.

Function mode can be entered, the load display

shows “FUNC−※※”

The last registered function No. is shown at ※※.

Suspend the setting of Function mode, then

Measurement mode can be re−entered by

pressing the key.
