9−1−9. Fine adjustment 1 on analog output
Fine adjustment described here, is the one to arrange “the minimum value” and “the maximum
value” without applying actual load during the procedures. Refer to the paragraph 9−1−10. as
for the fine adjustment with actual load applied.
● During the application on fine adjustment, if you want to suspend,
press the key. The minimum value data, the maximum value data
are kept as they were before entering fine adjustment, and
Measurement mode can be re−entered.
Procedures

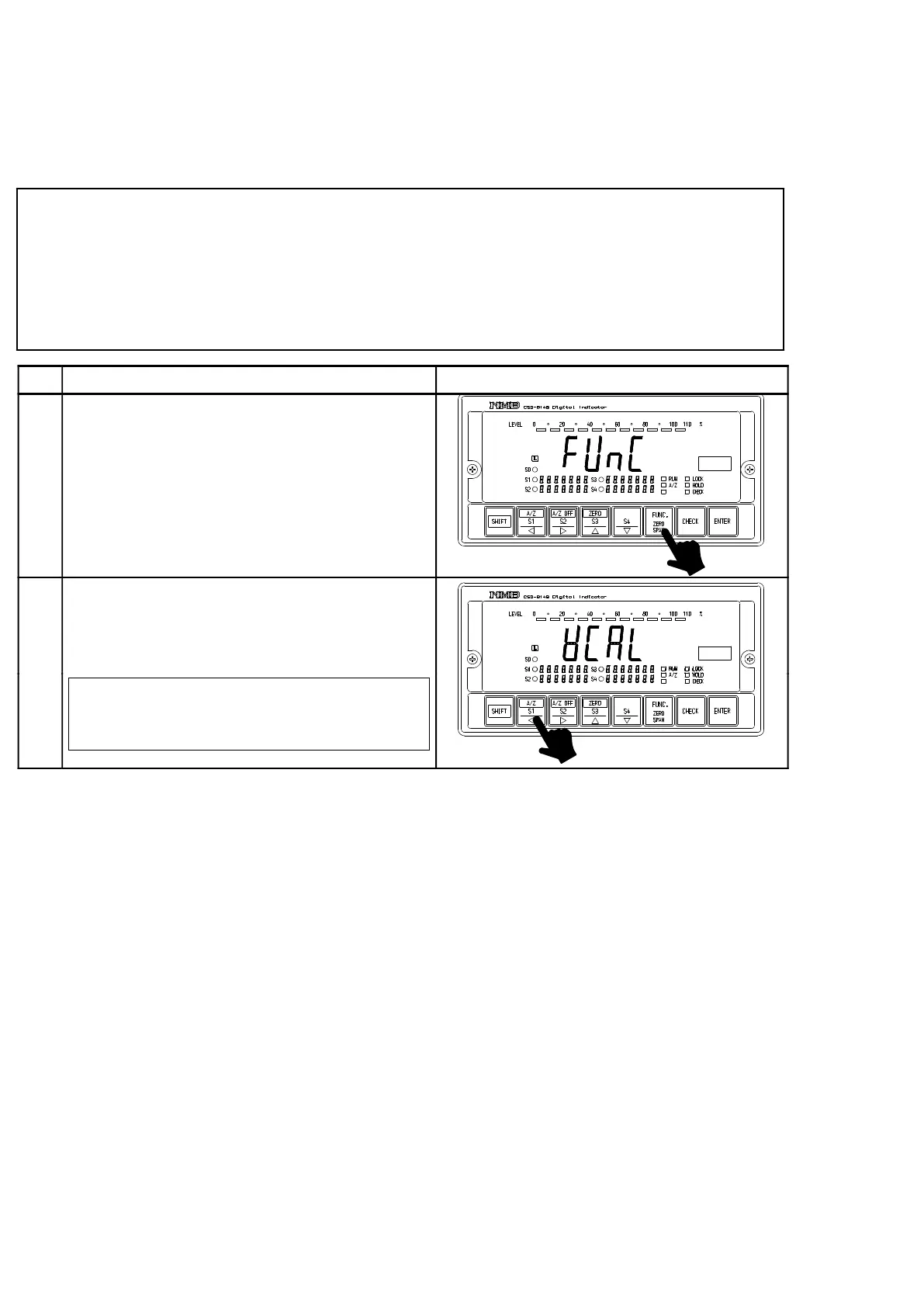

1
Press the key for 1 second(approx.)
The load display will show “FUNC”.
2
Press the key 5 times. The load display will
change as “FUNC” → “CCAL” → “CHECK”
→ “MONIT” → “VCAL”.
2
When analog output is not installed, it
shows “F−END” instead of “VCAL”.
