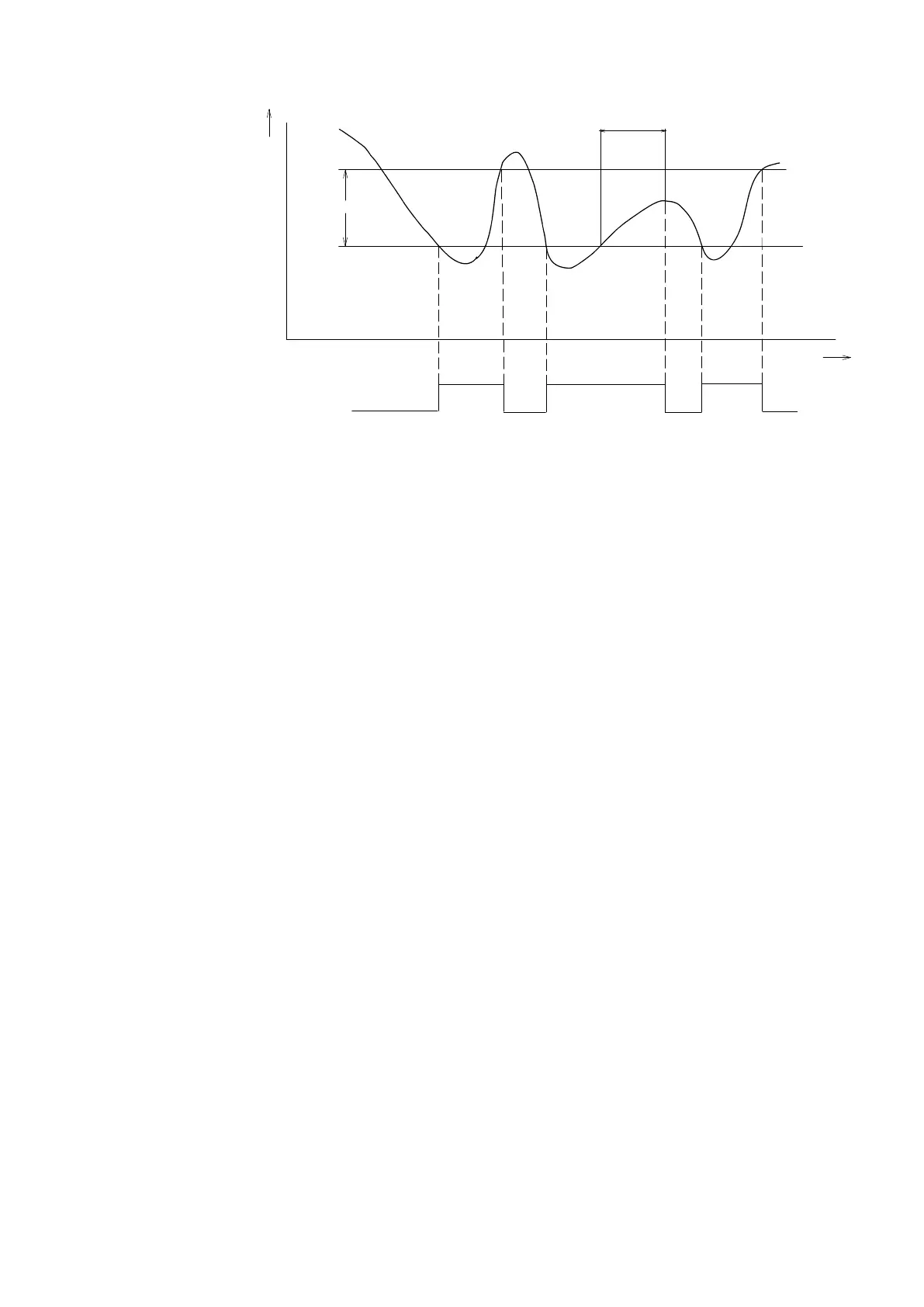

When operation of “Open collector ON at less than or equal to set value“ is selected and “OFF
delay” is selected for hysteresis direction with S1.
ON
OFF
Time
Hysteresis time width
Display
S1 judgement display
S1 open collector output.
S1 setting
value
Hysteresis data
width
9−6−12.
Prohibition against reading Digi−Switch
By shortening between the 44th pin “PROHIBIT” and the 45th pin “COM” located at this
option, reading of Digi−Switch will be prohibited. When reading is prohibited, the latest data
just before the prohibition of reading will be stored, then perform comparative operation for the
data.
