11−3. Function of sheet key on front panel
Shift key
Set value digit carry/S1 setting display/Tare weight cancellation
Set value digit down/S2 setting display/Tare weight cancellation
Set value increment/S3 setting display/Zero compensation
Set value decrement/S4 setting display
Changeover of Function mode/Changeover of ZERO & SPAN adjustment.
Changeover of check value
Entry key
11−4. External Control Function
ZERO As same as ZERO key + SHIFT key.
A/Z As same as A/Z key + SHIFT key.
A/Z OFF As same as A/Z OFF key + SHIFT key
Above are effective once with the pulse input and its width is more than
100 ms of pulse width.
HOLD HOLD of display, comparison output, BCD output(option),
current output(option) and voltage output(option)
LOCK Prohibition of front panel key operation
A−SEL When Optiojnal A−OUT is installed, analog output with relative value at
”OPEN” and analog output with absolute value at ”SHORT” can be made.
Above are effective during the input of level input and also “SHORT”
against more than 100 ms.

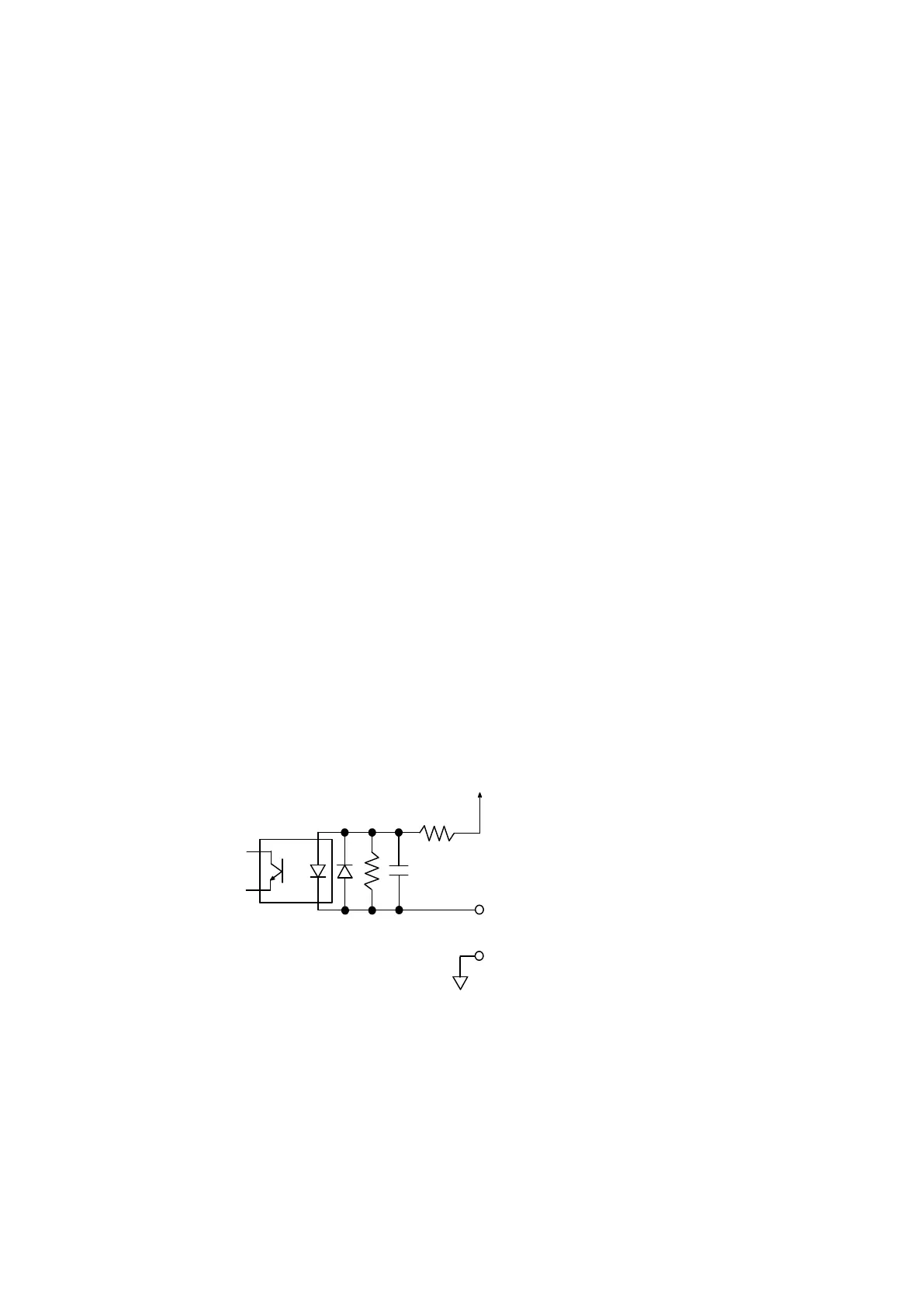

Equivalent circuit input section for external control.
Approx. 12 V
2.2
0.047 μF
430 Ω
INPUT
COM. 1
