18
4−3−4.
Connection with power supply and ground

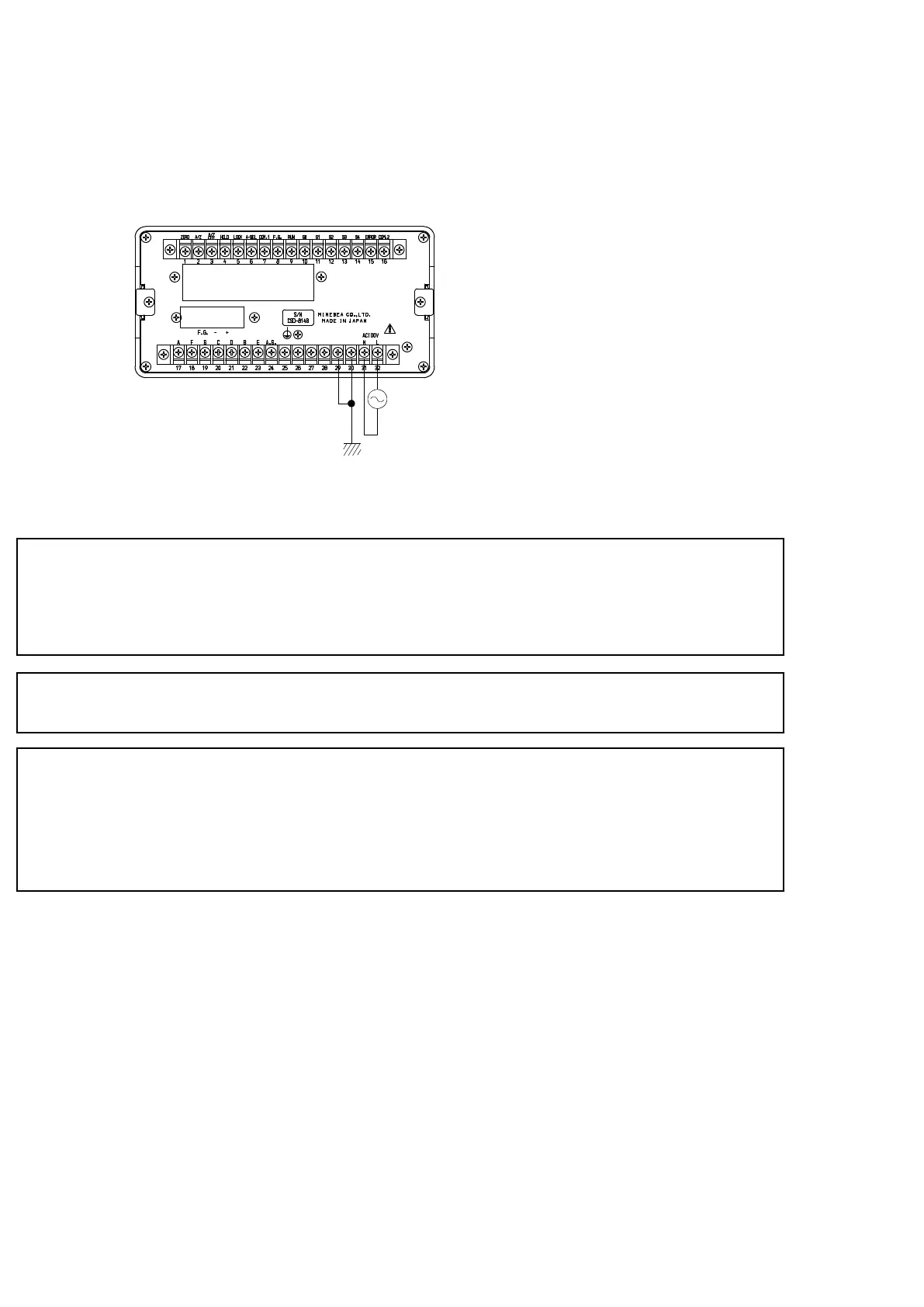

Connection with power supply and ground should be made as the following figure.
Grounding should be the D class with single earth.
Power supply voltage AC100 V (AC85 V to AC132 V)
Frequency for power supply 50/60 Hz
Power consumption Approx. 22 VA(No option. At the time of AC100 V)
Short Bar
AC100 V to AC120V
(Permissible variable range : AC85 V to AC132 V)
50/60 Hz
※ Refer to the paragraph 9−7., when supply power source is AC200 V(Optional CSD814B−P63)
individually.
● Grounding should be the D class with single ground.
If neglected, it may cause an unexpected malfunction due to the
effects of noise from other equipments.
● Between the “F.G.” and “GND” is shorted with short bar.
Warning ● Connection with power supply and ground should be made securely
as the figure indicates and also should be used within the specified
condition of power supply.
If neglected, it may cause an unexpected failure.
4−3−5.
Connection with options
Refer to the section 9., as for the connection of options.
