Minebea CSD-814B - 433. Connection with Contact Output

To Next Page

To Previous Page

4−3−3.

Connection with contact output

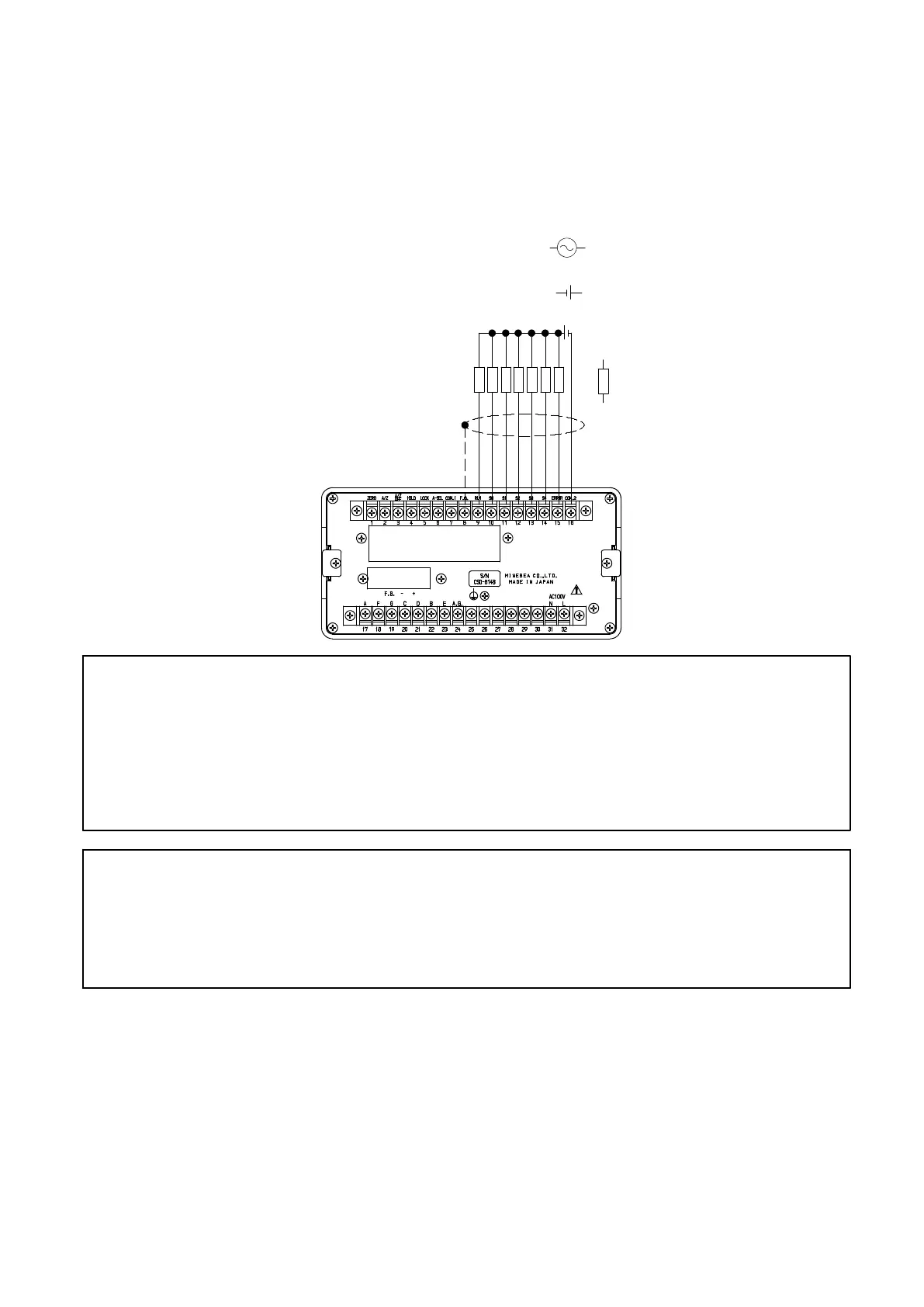

Connection with contact output “RUN”, “SO”, “S1”, “S2”, “S3”, “S4”, “ERROR” and external

load should be made between each terminal and “COM. 2” on terminal No.16 as the following

figure.

At the same time, take care that the load should not exceed the rated contact of load.

Rated load for contact AC125 V 0.1 A

DC30 V 0.5 A

Load

● For the connection with external terminal input, be sure to apply

shielded cable, and shielded cable should be connected with F.G.

terminal (Terminal No.8) of the instrument.

If not connected, it may cause malfunction due to the effect from

external noise and so on.

Warning ● Connection with contact output should be made securely as the figure

indicates and also used within rated capacity for contact.

If neglected, it may cause an unexpected malfunction to the

instrument.
