Connection with power supply and the ground

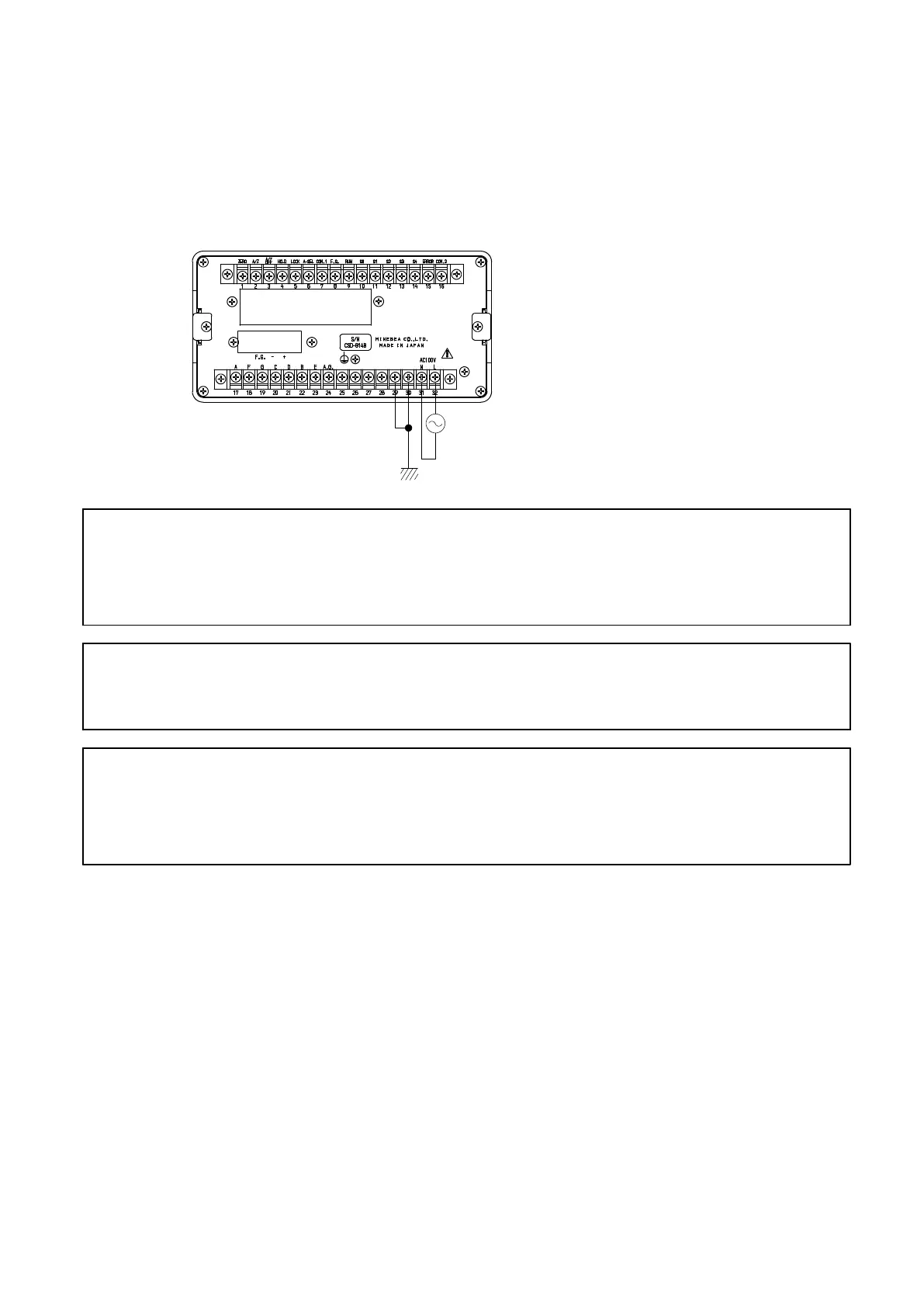

Connection with power supply and the ground should be made according to the following figure.
Grounding should be the D class single type.
Power Supply voltage : AC200 V (AC170 V to AC264 V)
Power supply frequency : 50/60 Hz
Power consumption : Approx. 22 VA(No option : At AC200 V)
AC200 V (AC170 V to AC264 V),
50/60 Hz
Short Bar
● Grounding for the instrument should be the D class with single
grounding. If neglected, it may cause an unexpected malfunction due
to the noise from other instruments.
● Between the F.G. terminal(Terminal No.29) and GND terminal
(Terminal No.30) is shorted with short bar.
Warning ● Connection between power supply and ground should be made
securely and apply within the specified power supply conditions.
If you neglect these, there may be an unexpected failure.
