4−3. Connection
4−3−1.
Connection with strain gage applied transducers
The instrument can connect with strain gage applied transducers, such as load cell, pressure
transducer and so on. Here, we will describe the example of connection with load cell, so
connect with another strain gage applied transducers with the same way.
※1 When tension is applied with the application of tension type or
universal(compression/tension) type load cell, and display of “+”
direction is required, connect “green” with Terminal No.22, and
“blue” with Terminal No.21. As there is a case which standard
wiring color is different, please confirm the inspection data sheet of
the load cell being used.
※2 When the total length of CAB−502 specifies more than 30 m, the
accuracy may be out of warranty because the resistance of cable
makes decrease the input voltage of the instrument.
※3 There is no guarantee that the function of CAB−501 will work well
if its length is totally more than 100 m.
1

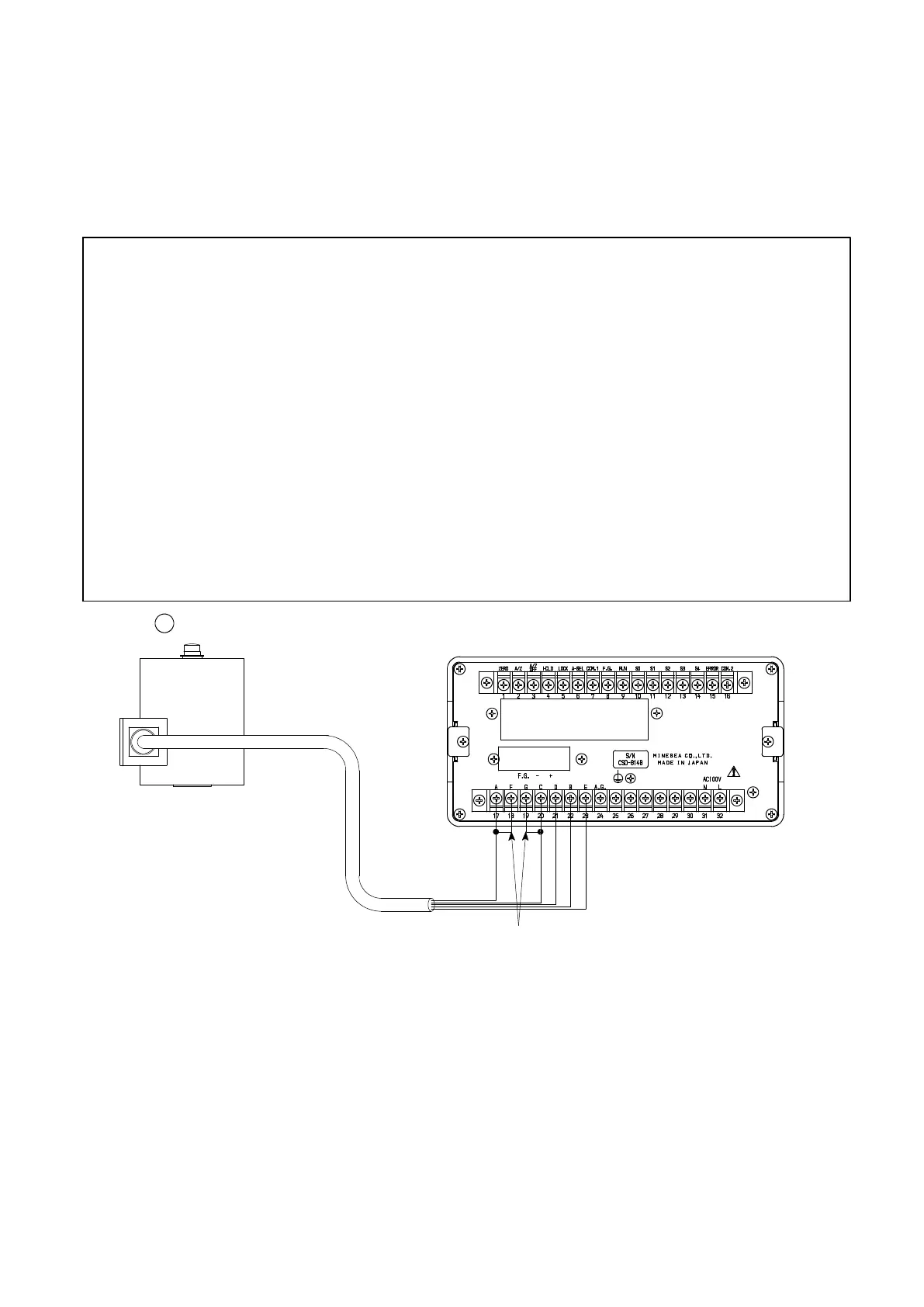

Connection with one(1) point of load cell and CSD−814B
3
33
3 m
mm
m
※
※
※
※1 BLU
Attached short bar
RED
Shield
※
※
※
※1 GRN
WHT
To Next Page
