※1 When tension is applied with the application of tension type or
universal(compression/tension) type load cell, and display of “+”
direction is required, connect “green” with Terminal No.22, and
“blue” with Terminal No.21. As there is a case which standard
wiring color is different, please confirm the inspection data sheet of
the load cell being used.
※2 When the total length of CAB−502 specifies more than 30 m, the
accuracy may be out of warranty because the resistance of cable
makes decrease the input voltage of the instrument.
※3 There is no guarantee that the function of CAB−501 will work well
if its length is totally more than 100 m.
2

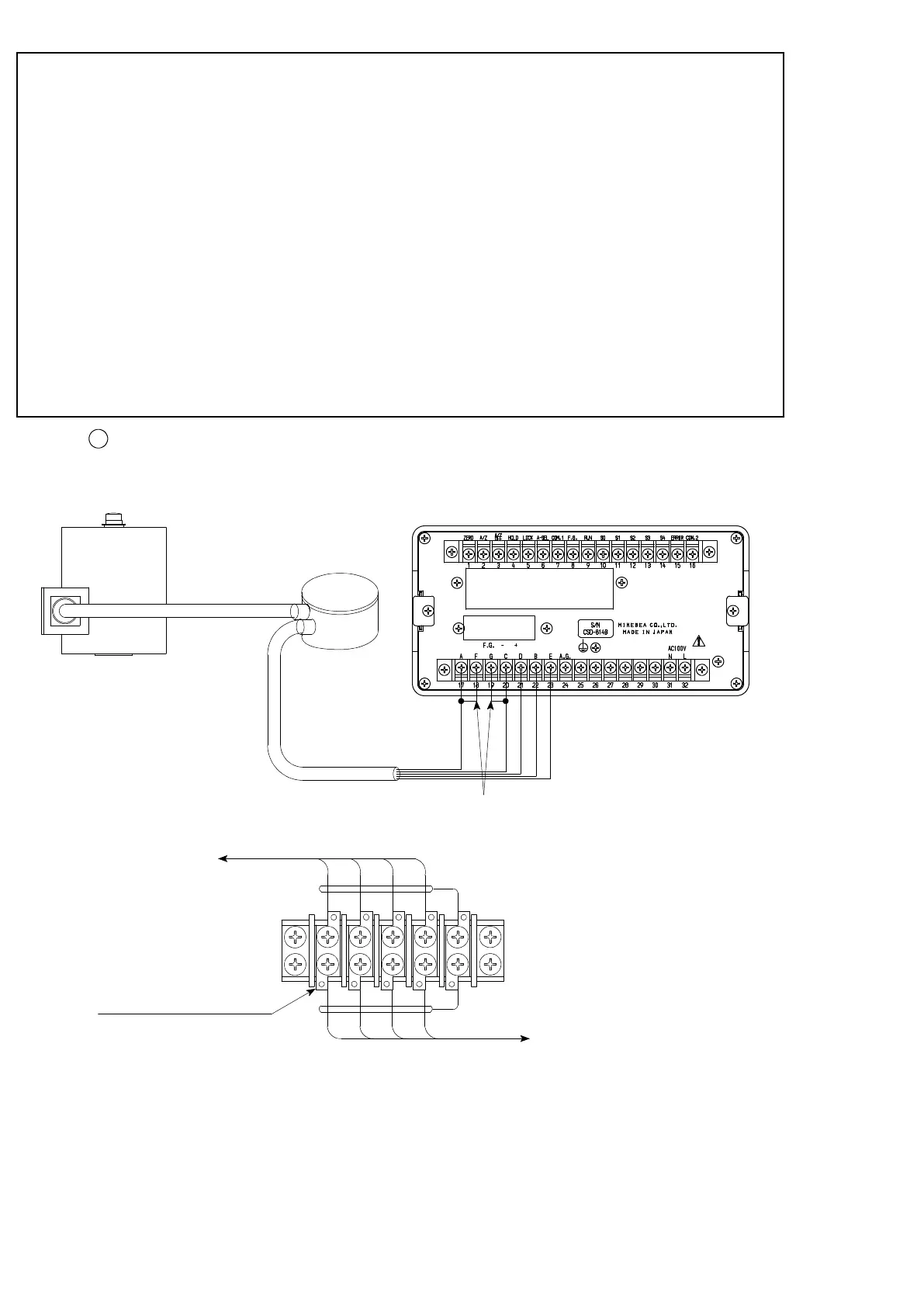

Connection with one(1) point of load cell, Junction box B−304 for extension use and
CSD−814B.
i) In case of application of CAB−502(4−cores cable)
B−304
CAB−502
※
※※
※2 (Length of CAB−502 should be within 30 m totally.)
3 m
Junction box
Attached short bar
※
※
※
※1 GRN
※
※
※
※1 BLU
Shield
WHT
RED
B−304 internal terminal connections
To CSD−814B
To load cell
RED
WHTBLU
GRN
YEL(Shield)
RED
WHT
BLU
GRN
Terminal Pitch 9.5 mm
YEL(Shield)
Suitable crimp−type
terminal lugs:
1.25−4 or 2−4
To Next Page
